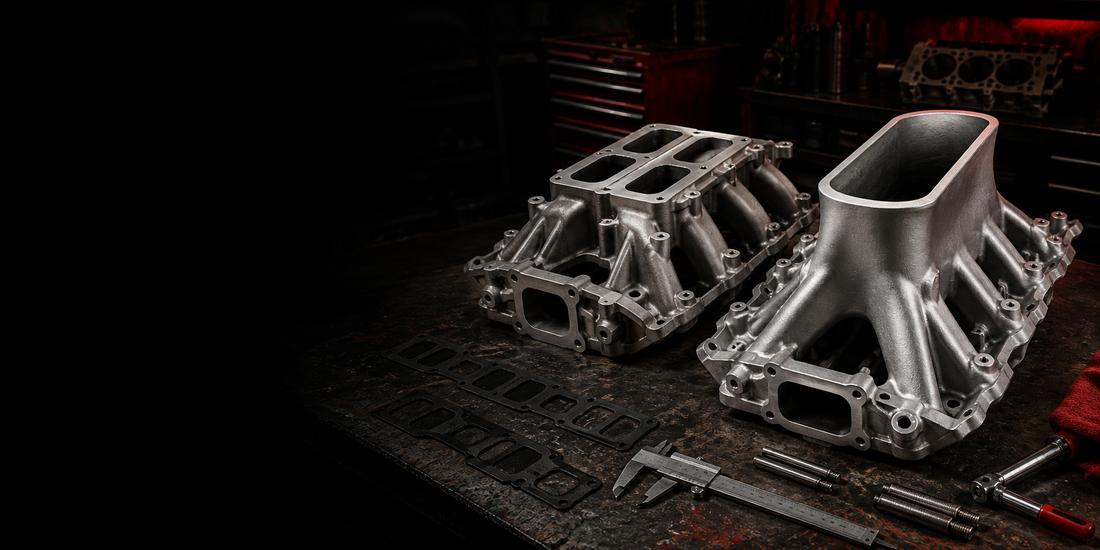

How to Choose the Right Intake Manifold – Single Plane vs Dual Plane

Your intake manifold has a major influence on where your engine makes its power.

Choosing the biggest or tallest manifold doesn’t automatically make an engine faster. A manifold designed for high-RPM competition use can make a street car less enjoyable if the engine spends most of its time at lower RPM.

The right intake manifold should match your:

• Engine
• Cylinder heads
• Camshaft
• Carburettor or EFI system
• Compression
• Operating RPM
• Transmission and gearing
• Vehicle weight
• Intended use

This guide explains the difference between single-plane and dual-plane intake manifolds, how advertised RPM ranges work and what you should check before ordering.

Quick Answer: Single Plane or Dual Plane?

For most street-driven naturally aspirated V8s, a dual-plane intake manifold is usually the best place to start.

Dual-plane manifolds are designed to provide strong torque and throttle response through the lower and middle parts of the RPM range.

Single-plane manifolds generally favour higher-RPM airflow and horsepower, making them more appropriate for aggressive street, street/strip and competition combinations.

That doesn’t mean:

Dual plane = slow

or

Single plane = fast

It means you need the manifold whose operating range overlaps the RPM range where your engine actually works.

What Does an Intake Manifold Do?

On a carburetted or throttle-body EFI engine, the intake manifold distributes the incoming air and fuel mixture from the carburettor or throttle body to each cylinder.

Its:

• Runner length
• Cross-sectional area
• Shape
• Plenum volume
• Plenum configuration

all affect airflow and the way pressure waves behave inside the intake.

Manufacturers design different manifolds to favour different engine speeds and applications. That’s why intake manifolds are commonly advertised with a recommended RPM operating range.

The operating range is considerably more useful than choosing a manifold simply because it looks bigger or more aggressive.

Single Plane vs Dual Plane Intake Manifolds

Single-plane and dual-plane manifolds use different plenum arrangements to influence airflow, throttle response and the engine’s preferred operating range.

What Is a Dual-Plane Intake Manifold?

A dual-plane manifold divides the intake plenum into two sections.

On a typical V8, each side of the carburettor feeds a group of cylinders according to the engine’s firing order.

This arrangement effectively reduces the plenum volume seen by each cylinder and helps maintain strong air velocity and cylinder filling at lower and mid-range engine speeds.

That’s why dual-plane manifolds are extremely popular for:

• Street cars
• Cruisers
• Hot rods
• Muscle cars
• Tow vehicles
• Heavy vehicles
• Mild and moderate performance engines
• Automatic-transmission vehicles

A properly matched dual-plane manifold can provide excellent:

• Throttle response
• Low and mid-range torque
• Street drivability
• Broad operating range

High-performance dual-plane manifolds can also support substantial horsepower while retaining strong street characteristics.

What Is a Single-Plane Intake Manifold?

A single-plane manifold uses one common plenum beneath the carburettor or throttle body to feed all cylinders.

Compared with a typical dual-plane design, single-plane manifolds generally use:

• A larger common plenum
• More direct runners
• Larger passages
• A design focused more heavily on higher engine speeds

They’re commonly used on:

• High-RPM engines
• Drag cars
• Circuit cars
• Serious street/strip combinations
• Large-cam engines
• High-flow cylinder-head combinations

The trade-off can be reduced low-RPM torque or throttle response compared with a well-matched dual-plane manifold.

Single Plane vs Dual Plane Comparison

Feature	Dual Plane	Single Plane
Low-RPM response	Excellent	Usually reduced
Mid-range torque	Excellent	Good to excellent
High-RPM airflow	Good	Excellent
Street use	Excellent	Combination-dependent
Race use	Moderate to excellent	Excellent
Heavy vehicle	Usually preferable	Less commonly ideal
Mild camshaft	Excellent match	Often unnecessary
Large cam and high RPM	Can work	Often better suited
Typical RPM focus	Low–mid and broad	Mid–high

These are general characteristics rather than rigid rules.

There are high-performance dual-plane manifolds capable of supporting substantial power, along with modern single-plane designs that have considerably better street manners than older designs.

Match the Manifold to Your Operating RPM

The intake manifold should complement the RPM range where the complete engine combination is designed to operate.

What Does the Advertised RPM Range Mean?

You’ll often see ranges such as:

• Idle–5,500 RPM
• 1,500–6,500 RPM
• 3,000–8,000 RPM

listed against an intake manifold.

This gives you an indication of the engine-speed range the manufacturer designed the manifold to favour.

It doesn’t mean the engine suddenly stops working outside that range.

Think of it as the manifold’s preferred operating window.

The goal is to match that window with the rest of the engine and vehicle combination.

Match the Intake Manifold to Your Camshaft

This is extremely important.

Imagine you’ve selected a camshaft designed primarily to make power between:

2,000–6,000 RPM

but install an intake manifold designed around:

3,500–8,000 RPM

You’ve created a mismatch.

Likewise, installing a mild low-RPM manifold on an engine built around a large camshaft, high-flow heads and a 7,000 RPM operating range may restrict its potential.

Ideally, the following should complement each other:

• Camshaft operating range
• Intake manifold operating range
• Cylinder-head capability
• Carburettor sizing
• Exhaust system
• Converter and gearing

Street Car? Consider Where You Actually Drive

People naturally focus on peak horsepower, but consider where a typical street car spends most of its life.

If the engine usually operates between:

1,500–4,500 RPM

then sacrificing substantial low and mid-range torque for horsepower at 7,000 RPM may not make the car faster—or more enjoyable—in normal use.

A strong street engine generally benefits from a broad, usable torque curve.

That’s why a good dual-plane manifold can outperform a more aggressive single-plane choice in real-world street driving, even if the single plane produces a larger peak-horsepower number on a dyno.

Performer RPM and Air-Gap Manifolds

High-performance dual-plane manifolds blur the traditional distinction between street and race manifolds.

What Is a Performer RPM Manifold?

Edelbrock’s Performer RPM range uses a performance-oriented dual-plane design intended to extend power further into the upper RPM range than a basic replacement-style manifold.

Many Performer RPM applications are advertised with an operating range of approximately:

1,500–6,500 RPM

This can make them an excellent option for:

• Strong street engines
• Weekend performance cars
• Street/strip applications
• Engines with moderate performance camshafts
• Combinations where retaining street torque matters

The exact operating range and fitment vary between applications, so always check the specifications for the individual manifold.

Does an Air-Gap Manifold Make More Power?

An Air-Gap-style manifold separates the runners from the hot engine valley underneath.

This reduces direct heat transfer into portions of the intake manifold and incoming charge.

Whether it produces a meaningful improvement on your particular engine depends on the complete combination and operating conditions.

Don’t choose an Air-Gap manifold solely because the name sounds more performance-oriented.

The intended RPM range, fitment and overall engine combination still matter.

Intake Manifold Fitment and Compatibility

An intake manifold needs to match more than the basic engine family.

Flange type, cylinder-head ports, EFI compatibility, overall height and bonnet clearance should all be checked before ordering.

Carburettor Flange: Square Bore vs Spread Bore

Before ordering your intake manifold, check which carburettor flange it uses.

Common designs include:

Square Bore

Commonly used with Holley 4150/4160-style carburettors and many Edelbrock and performance four-barrel carburettors.

Spread Bore

Associated with carburettors such as the Rochester Quadrajet, which use smaller primary and larger secondary throttle bores.

Adapters are available for some combinations. However, adapters:

• Add height
• Change airflow
• Can affect linkage
• Can create bonnet-clearance issues

Where possible, choose components designed to work together.

Check Cylinder-Head Port Compatibility

An intake manifold physically bolting to the engine doesn’t always mean the ports are correct.

Check:

• Engine family
• Model and year where applicable
• Cylinder-head type
• Intake-port shape
• Port dimensions
• Bolt pattern
• Intake-gasket compatibility

This becomes particularly important with engine families where multiple cylinder-head port configurations exist.

A substantial port mismatch can affect airflow and prevent the combination from performing as intended.

EFI vs Carburettor Intake Manifolds

Throttle-body EFI systems often mount in the same location as a conventional four-barrel carburettor.

That doesn’t automatically mean they require a single-plane manifold.

The appropriate manifold still depends on the engine combination and intended operating range.

Many throttle-body EFI systems can operate successfully on dual-plane manifolds. Follow the EFI manufacturer’s fitment requirements and choose the manifold according to the complete engine combination.

Multi-point EFI uses a different arrangement because the injectors deliver fuel much closer to each intake port, so its manifold-design considerations can differ.

Manifold Height and Bonnet Clearance

This is one of the easiest things to overlook.

A performance intake manifold can be substantially taller than the factory manifold.

Then you add:

• Carburettor or throttle body
• Carburettor spacer
• Air-cleaner base
• Air-cleaner element

and suddenly the bonnet won’t close.

Before ordering, compare:

• Existing manifold height
• New manifold height
• Carburettor or throttle-body height
• Spacer thickness
• Air-cleaner height
• Available bonnet clearance

A drop-base air cleaner can sometimes help, but don’t rely on one before measuring the complete combination.

What About Carburettor Spacers?

Carburettor spacers can alter plenum volume, signal and airflow characteristics.

Open spacers and divided or four-hole spacers can behave differently, and the result depends heavily on the manifold and engine combination.

A spacer can sometimes improve performance, but it isn’t automatically an upgrade.

It also raises the carburettor and air cleaner, which may create bonnet-clearance problems.

Common Intake Manifold Mistakes

Avoiding these common mistakes will help you choose a manifold that complements the engine rather than working against it.

Choosing the Biggest Manifold Available

A large race-oriented manifold can hurt the characteristics that make a street engine responsive and enjoyable.

Choose for the engine’s actual airflow and RPM requirements—not appearance alone.

Ignoring the RPM Range

Match the manifold to the RPM range you actually use.

A manifold designed for power above 4,000 RPM may not be the best choice for a street engine that spends most of its time below that point.

Choosing From Horsepower Alone

An intake manifold shouldn’t be selected solely from a peak-horsepower target.

Vehicle weight, gearing, converter, camshaft, cylinder heads and intended use all matter.

Ignoring the Cylinder Heads

Port shape, size and bolt-pattern compatibility need to be checked.

A manifold may bolt to the engine while still being poorly matched to the cylinder-head ports.

Ignoring Bonnet Clearance

Measure the complete induction system before ordering.

Remember to include the manifold, carburettor or throttle body, spacer and air cleaner.

Mismatching the Camshaft

The camshaft and intake manifold should work in approximately the same operating range.

A mismatch can compromise the torque and horsepower the engine is capable of producing.

Which Intake Manifold Should I Choose?

As a broad starting point:

Engine or Vehicle	Usually Consider
Stock or mild street V8	Low-rise dual plane
Street-performance V8	Performance dual plane
Strong street/strip combination	High-performance dual plane or suitable single plane
High-RPM competition engine	Single plane
Heavy cruiser	Dual plane
Large cam, high stall and aggressive gearing	Performance dual plane or single plane, depending on the combination

These are starting points only.

A high-performance dual-plane manifold can support substantial power, while a mild engine may lose response and usable torque with an unnecessarily large single-plane design.

Still Not Sure Which Intake Manifold You Need?

Contact Engine Master Australia with:

• Engine make and capacity
• Cylinder heads
• Camshaft specifications
• Compression ratio
• Carburettor or EFI system
• Maximum operating RPM
• Transmission
• Torque-converter stall speed
• Differential ratio
• Vehicle weight
• Intended use
• Available bonnet clearance

We’ll help you find a manifold suited to the complete combination, not just the engine badge.

Shop Intake Manifolds →

Need Help Choosing? Contact Engine Master Australia →

Frequently Asked Questions

Is a single-plane manifold better than a dual plane?

Not universally.

A single-plane manifold generally favours higher-RPM airflow, while a dual plane generally provides stronger low and mid-range response.

Which is better depends on the complete engine and intended use.

Is a dual-plane manifold good for performance?

Absolutely.

High-performance dual-plane manifolds can support substantial horsepower while retaining excellent street torque and response.

Does a bigger intake manifold make more horsepower?

Only if the rest of the engine can use the additional airflow.

Oversizing the manifold can reduce air velocity and hurt performance in the RPM range you actually use.

Can I use EFI on a dual-plane manifold?

Many throttle-body EFI systems can be used successfully with dual-plane manifolds.

Follow the EFI manufacturer’s fitment requirements and choose the manifold based on the complete engine combination.

What intake manifold is best for a street 350 Chev?

For many mild-to-strong street 350 combinations, a properly matched dual-plane manifold is an excellent starting point.

Camshaft, cylinder heads, operating RPM and bonnet clearance should still be considered.
