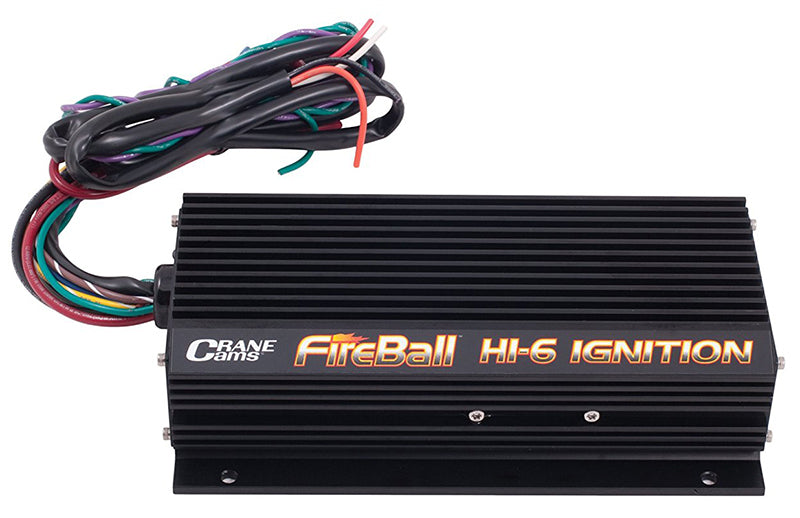

Crane Cams CR6000-6440 Hi-6 Digital Multi-Spark Cd Ignition w/ Single Adjustable Rev Limiter 600-9900 Rpm

HI-6 Features

• HI-6 (Pt. No. 6000-6440) delivers higher spark-gap current than comparable digital CD ignitions!
• Multi-Spark CD, for race, street, up to 14.5:1 compression ratio, nitrous-oxide, supercharged and turbo. MoreHP, torque, crisper
• throttle response! For 4,6,8 cylinder with distributor.
• Bigger rotary switches with precise "Click-In" detents or easy rev limit adjustments. No "Chips" needed.Adjusts in 100 RPM increments.
• Sequential revlimiting stops engine damaging "popping and banging" at rev limit.
• Built-in timing retard available with optional Control Module, Pt. No. 6000-6425.
• Points, module,mag triggered.
• Fully potted with new, soft urethane for heat, dirt and moisture protection.
• Surface-mount, fully digital components. The most reliable CD ignition available.

Operating voltage 6 to 18v, reverse polarity protected, neg. ground only
Current draw 7.0 amps max. at 10,000 RPM
RPM operating range 12,000 RPM (with rev limiter disabled).
RPM limiter range 600 to 9,900 RPM in 100 RPM increments.
RPM limiter accuracy +/-30 RPM
Timing accuracy +/-0.5 degrees from 500 to 9,900 RPM
Multiple Spark Duration 20 degrees crankshaft rotation below 3,000 RPM. Max 12 sparks per sequence with 1 millisecond interval between sparks.
Primary voltage output 450 volts
Primary energy output 1200 millijoules/sequence
Peak spark gap current 380 milliamps with LX91 coil, 510 milliamps with LX92 coil.
Dimensions 8"L x 4-1/2"W x 2"H; 4-1/2 lbs.
