Aeroflow Performance Products

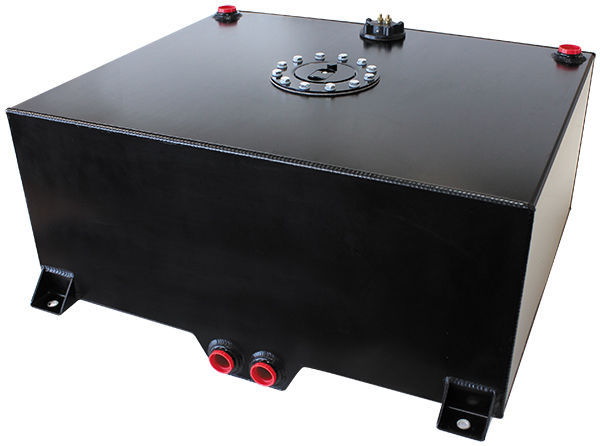

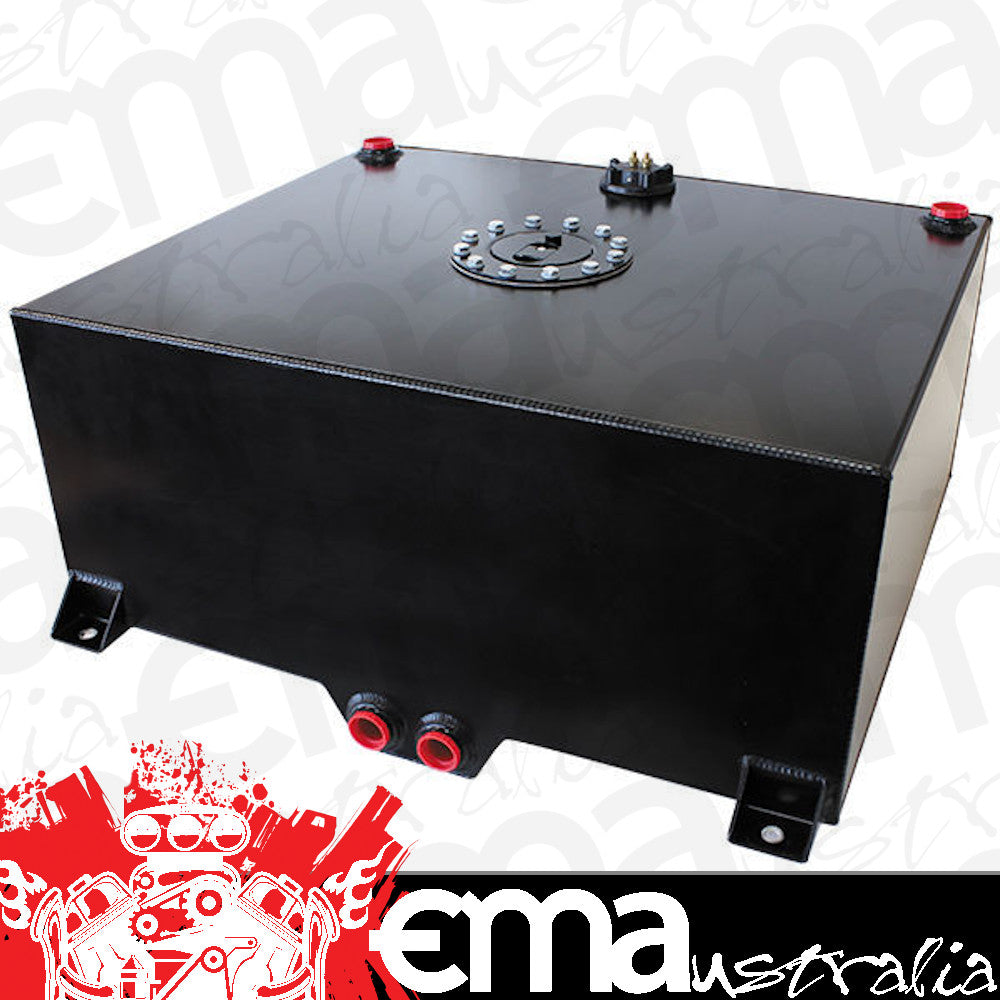

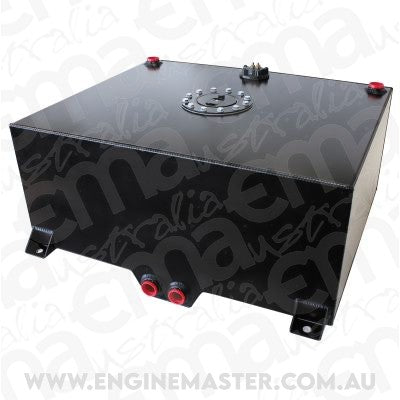

Aeroflow AF85-2200ASBLK Black Alloy Fuel Cell 75 Litre20 Us Gallons with Cavity/Send

Aeroflow AF85-2200ASBLK Black Alloy Fuel Cell 75 Litre20 Us Gallons with Cavity/Send

AF85-2200ASBLK
$635.45 AUD
$635.45 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
AEROFLOW 20 GALLON (75L) ALUMINIUM FUEL CELL 24"L X 20"W X10"H AF85-2200ASBLK
  • High Grade Aluminium: 3.0mm thickness
  • Robot Welded: The fuel cell has been welded solely by a high level machine robot the quality of which can be seen by the clean corner welds.
  • Internally baffled: The fuel cell incorporates internal baffling to be Ethanol & Methanol safe.
  • Fuel Pick-Up Poin As can be seen in the photo, The fuel OUT fittings are in a cavity at the base of the cell, which helps prevent fuel starvation at low fuel levels even under high G-force levels.
  • Fuel Inlet / Outlet Fittings: The fuel cell incorporates all -12 ORB female threads for use in all applications. 2 X pickups and 2 X returns or 1 X return and 1 X rollover. For a bolt in Roll-Over valve use Part AF614-08.
  • Flush Cap: Designed for fast cap removal with a flip up and twist action CNC billet polished alloy cap with a 1 way air valve in the cap.
  • Fuel Level Sender Uni The resistance at empty is 0 ohms and the resistance at full is 90 ohms.
  • Mounting Brackets: The cell can be secured with the 4 sturdy mounting brackets. (Rubber mounts recommended for high flex chassis applications)
Specs:
Capacity 20 gallons (75L)
Fuel Cell Color Black
Fuel Cell Material Aluminum
Foam Yes
Sending Unit Included Yes
Sender Ohm Range NA
Length (in) 24.000 in.(61cm)
Width (in) 20.000 in.(51cm)
Height (in) 10.000 in.(25.5cm)
Outlet Fitting Quantity Two
Outlet Fitting Size -12 AN ORB
Vent Fitting Size -12 AN ORB
Return Fitting Size -12 AN ORB
Sump Yes
Quantity Sold individually.
We Sell Fittings To Suit! Click Here!


Manufacturer Part Number:

View full details
