Aeroflow AF85-2250AS Alloy Fuel Cell 95 Litre 25 Us Gallons with Cavity/Send

Aeroflow AF85-2250AS Alloy Fuel Cell 95 Litre 25 Us Gallons with Cavity/Send

AF85-2250AS
$706.06 AUD
$706.06 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

AEROFLOW 25 GAL (95L) ALUMINIUM FUEL CELL WITH CAVITY/SUMP & SENDER AF85-2250AS

  • High Grade Aluminium: 3.0mm thickness
  • Robot Welded: The fuel cell has been welded solely by a high level machine robot the quality of which can be seen by the clean corner welds.
  • Internally baffled: The fuel cell incorporates internal baffling to be Ethanol & Methanol safe.

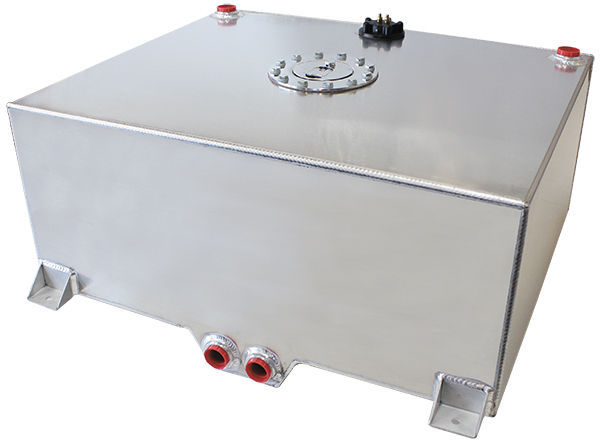

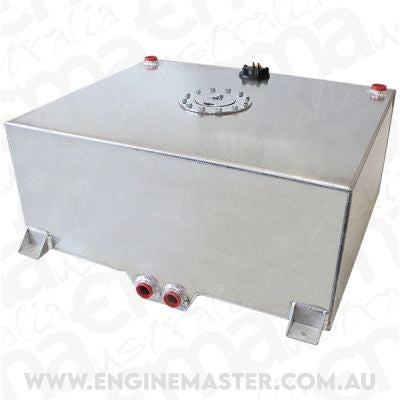

  • Fuel Pick-Up Poin As can be seen in the photo, The fuel OUT fittings are in a cavity at the base of the cell, which helps prevent fuel starvation at low fuel levels even under high G-force levels.
  • Fuel Inlet / Outlet Fittings: The fuel cell incorporates all -12 ORB female threads for use in all applications. 2 X pickups and 2 X returns or 1 X return and 1 X rollover. For a bolt in Roll-Over valve use Part AF614-08.
  • Flush Cap: Designed for fast cap removal with a flip up and twist action CNC billet polished alloy cap with a 1 way air valve in the cap.
  • Fuel Level Sender Uni The resistance at empty is 0 ohms and the resistance at full is 90 ohms.
  • Mounting Brackets: The cell can be secured with the 4 sturdy mounting brackets. (Rubber mounts recommended for high flex chassis applications)





  • Capacity 25 gallons (95 Litres)
  • Fuel Cell Color Natural
  • Fuel Cell Material Aluminum
  • Foam Yes
  • Sending Unit Included Yes
  • Sender Ohm Range 0 ohms empty, 90 ohms full
  • Length (in) 25-1/4" (640mm)
  • Width (in) 24-3/8" (620mm)
  • Height (in) 10-1/4" (260mm)
  • Sump Yes
  • Quantity Sold individually.
