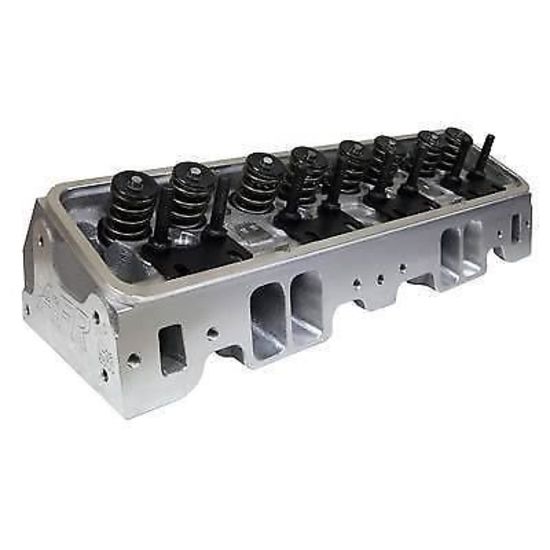

Air Flow Research AFR0911 180cc Eliminator Street Heads 75cc Chamber 1 (pair) Complete Chev SB

These AFR 180cc SBC Eliminator street heads are available in your choice of straight or L98 angle plug versions. AFR 180cc heads feature a 75cc or 65cc combustion chamber with a 64cc exhaust port and a 3/4 in. thick head deck (ideal for nitrous or blower applications). Standard valves are lightweight, 8mm, and have a 2.020 in. intake and 1.600 in. exhaust with AFR's hardened ductile iron interlocking valve seats. The AFR 180cc Eliminator street heads' exceptional flow characteristics, 23 degree valve angle, and standard valve spacing make them the perfect street heads for 327 to 350 c.i.d. engines in the idle to 5,500 rpm operating range (higher rpm ranges are possible, depending on the combination of parts). These cylinder heads carry CARB E.O. #D-250-2 when used on 1969-94 applications with the heat riser. AFR 180cc SBC Eliminator street heads are also available for your 1987 and later engines with centerbolt valve covers and two center intake bolts at 72 degree angles, and Vortec-style cylinder heads are available, too. Their dual valve cover bolt pattern is standard and their exhaust port is raised .100 over GM L98 cylinder heads.

Cylinder Head Material: Aluminum

Cylinder Head Finish: Natural

Combustion Chamber Volume (cc): 75

CNC-Machined Combustion Chamber: Yes

Intake Runner Volume (cc): 180cc

Exhaust Runner Volume (cc): 64cc

CNC-Machined Intake Runner: Yes

CNC-Machined Exhaust Runner: Yes

Combustion Chamber Style: Heart

Intake Port Shape: Rectangular

Intake Port Location: Standard

Exhaust Port Shape: Square

Exhaust Port Location: Raised

Spark Plug Style: Straight

Intake Valves Included: Yes

Intake Valve Diameter (in): 2.020 in.

Exhaust Valves Included: Yes

Exhaust Valve Diameter (in): 1.600 in.

Valve Springs Included: Yes

Maximum Valve Lift (in): 0.600 in.

Outside Diameter of Outer Spring (in): 1.290 in.

Damper Spring Included: Yes

Number of Springs Per Valve: Dual

Retainers Included: Yes

Retainer Material: Chromoly steel

Locks Included: Yes

Lock Style: 7 degree

Valve Stem Seals Included: Yes

Rocker Arm Studs Included: Yes

Rocker Arm Nut Thread Size: 3/8-24 in.

Rocker Arms Included: No

Rocker Arm Nuts Included: No

Guideplates Included: Yes

Guideplate Pushrod Size: 5/16 in.

Valve Cover Mounting Style: Center and perimeter bolt

Accessory Bolt Holes Drilled: Yes

Intake Valve Angle: 23

Exhaust Valve Angle: 23

Valve Guides Included: Yes

Valve Guide Material: Bronze

Valve Seats Machined: Yes

Valve Seat Machine Style: 3-angle

Valve Seat Material: Ductile iron

Steam Holes Drilled: No

Oiling Style: Through pushrod

Machined for O-Ring: No

Heat Crossover: Yes

Quantity: Sold as a pair.

Notes: These cylinder heads are a L98 based geometry. Not compatible with self-aligning rocker arms. Exhaust port is raised 0.100 in. over stock port. Cylinder heads are street ported.
