Air Flow Research AFR1054 Eliminator Heads 65cc Chamber Chev SB 350

Item Description

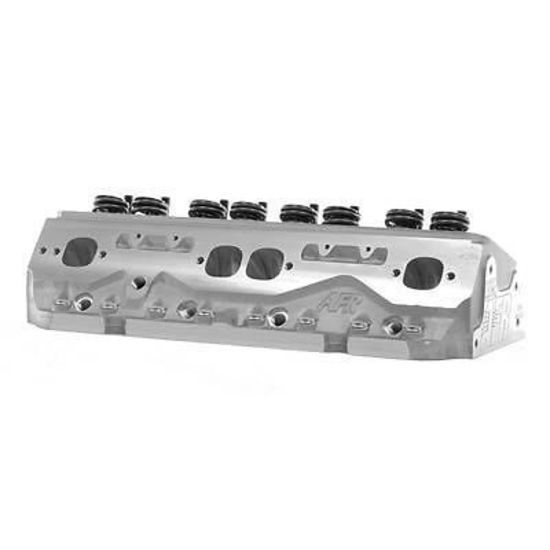

AFR ELIMINATOR HEADS 65CC CHAMBER CHEV SB 350 AFR1054
These reasonably priced AFR 210cc SBC Eliminator racing heads are available in two stages of performance. The race-ready version features 100 percent CNC-ported intakes and 100 percent CNC-ported intakes with greater detail. They come with 100 percent CNC-ported combustion chambers and 80cc exhaust ports with a 3/4 in. thick head deck (ideal for nitrous or blower applications). Standard valves are lightweight 8mm, 2.080 in. intakes and 1.600 in. exhausts with AFR's hardened ductile iron interlocking valve seats. The exceptional flow characteristics, 23 degree valve angle, and standard valve spacing make these the perfect heads for 350 to 400 c.i.d. engines in bracket drag cars, sportsman oval trackers, and highly modified street-class cars operating between 3,000 and 7,500 rpm (higher rpm ranges are possible, depending on the combination of parts). The 210cc aluminum cylinder heads are available for either standard or spread port exhausts.
Specs:Application: Chev Small Block Gen I 302, 327, 350, 400 C.I.D
Cylinder Head Style Assembled
Cylinder Head Material Aluminum
Cylinder Head Finish Natural
Combustion Chamber Volume (cc) 65
CNC-Machined Combustion Chamber Yes
Intake Runner Volume (cc) 210cc
Exhaust Runner Volume (cc) 80cc
CNC-Machined Intake Runner Yes
CNC-Machined Exhaust Runner Yes
Combustion Chamber Style Heart
Intake Port Shape Rectangular
Intake Port Location Standard
Exhaust Port Shape Square
Exhaust Port Location Raised
Spark Plug Style Angle
Intake Valves Included Yes
Intake Valve Diameter (in) 2.080 in.
Exhaust Valves Included Yes
Exhaust Valve Diameter (in) 1.600 in.
Valve Springs Included Yes
Maximum Valve Lift (in) 0.710 in.
Outside Diameter of Outer Spring (in) 1.550 in.
Damper Spring Included Yes
Number of Springs Per Valve Dual
Retainers Included Yes
Retainer Material Chromemoly steel
Locks Included Yes
Lock Style 10 degree
Valve Stem Seals Included Yes
Valve Stem Seal Style Viton®
Rocker Arm Studs Included Yes
Rocker Arm Nut Thread Size 7/16-20 in.
Rocker Arms Included No
Rocker Arm Nuts Included No
Guideplates Included Yes
Guideplate Pushrod Size 5/16 in.
Valve Cover Mounting Style Center and perimeter bolt
Accessory Bolt Holes Drilled Yes
Intake Valve Angle 23
Exhaust Valve Angle 23
Valve Guides Included Yes
Valve Guide Material Bronze
Valve Seats Machined Yes
Valve Seat Machine Style 3-angle
Valve Seat Material Ductile iron
Steam Holes Drilled No
Oiling Style Through pushrod
Machined for O-Ring No
Heat Crossover Yes
Quantity Sold as a pair.
Notes These cylinder heads are a L98 based geometry. Not compatible with self-aligning rocker arms. Exhaust port is raised 0.250 in. over stock and are race ported. 400 C.I.D Requires drilling steam holes into head.
