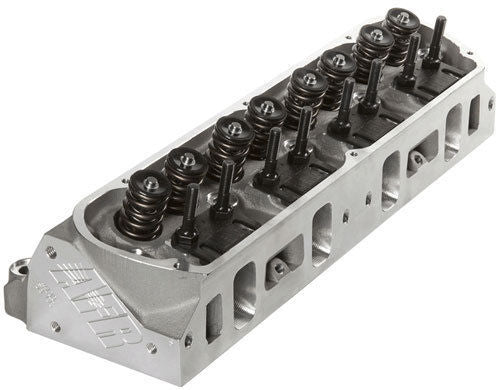

Air Flow Research AFR1388 185cc S/S Outlaw Aluminium Cylinder Heads

Item Description

AFR 185cc S/S Outlaw Aluminium Cylinder Heads Street CNC Ported 58cc Combustion Chamber. Suit Small Block Ford AFR1388These AFR SBF Street/Strip Renegade 20 Degree aluminum cylinder heads come ready for maximum small block Ford performance. They are not emissions-legal. The heads come with lightweight 8mm, 2.020 in. intake and 1.600 in. exhaust valves. These cylinder heads feature 68cc or 72cc combustion chambers with 70cc exhaust ports. These Renegade heads have an available nitrous or blower exhaust port option featuring a ultra high-flowing exhaust port. With AFR's trademark 3/4 in. thick head deck, it's no problem handling that additional cylinder pressure. Each of these serious race pieces in street disguises is also drilled for the larger 1/2 in. head bolt hole as a standard feature for maximum head gasket retention. Application:
  • S/B Ford Windsor.
Specifications:
  • Cylinder Head Style: Assembled
  • Cylinder Head Material: Aluminum
  • Cylinder Head Finish: Natural
  • Combustion Chamber Volume (cc): 58
  • CNC-Machined Combustion Chamber: Yes
  • Intake Runner Volume (cc): 185cc
  • Exhaust Runner Volume (cc): 68cc
  • CNC-Machined Intake Runner: Yes
  • CNC-Machined Exhaust Runner: Yes
  • Combustion Chamber Style: Heart
  • Intake Port Shape: Rectangular
  • Intake Port Location: Standard
  • Exhaust Port Shape: Square
  • Exhaust Port Location: Standard
  • Spark Plug Style: Angle
  • Intake Valves Included: Yes
  • Intake Valve Diameter (in): 2.020 in.
  • Exhaust Valves Included: Yes
  • Exhaust Valve Diameter (in): 1.600 in.
  • Valve Springs Included: Yes
  • Maximum Valve Lift (in): 0.600 in.
  • Outside Diameter of Outer Spring (in): 1.290 in.
  • Damper Spring Included: Yes
  • Number of Springs Per Valve: Dual
  • Retainers Included: Yes
  • Retainer Material: Chromoly steel
  • Locks Included: Yes
  • Lock Style: 7 degree
  • Valve Stem Seals Included: Yes
  • Rocker Arm Studs Included: Yes
  • Rocker Arm Nut Thread Size: 3/8-24 in.
  • Rocker Arms Included: No
  • Rocker Arm Nuts Included: No
  • Guideplates Included: Yes
  • Guideplate Pushrod Size: 5/16 in.
  • Valve Cover Mounting Style: Perimeter bolt
  • Accessory Bolt Holes Drilled: Yes
  • Intake Valve Angle: 20
  • Exhaust Valve Angle: 20
  • Valve Guides Included: Yes
  • Valve Guide Material: Bronze
  • Valve Seats Machined: Yes
  • Valve Seat Machine Style: 3-angle
  • Valve Seat Material: Ductile iron
  • Steam Holes Drilled: No
  • Oiling Style: Through pushrod
  • Machined for O-Ring: No
  • Heat Crossover: No
  • Quantity: Sold as a pair. Notes: Cylinder heads are street ported.





Manufacturer Information

  • Manufacturer: AFR - Air Flow Research
  • Manufacturer Part Number:
  • UPC:
  • Colour:
  • Additional Information:
  • Please Note: Images are for representation only and may differ than the actual product - please contact us if you require an exact photo
