Air Flow Research AFR3670 Airflow Research 300cc Magnum Chev BB Cylinder Heads

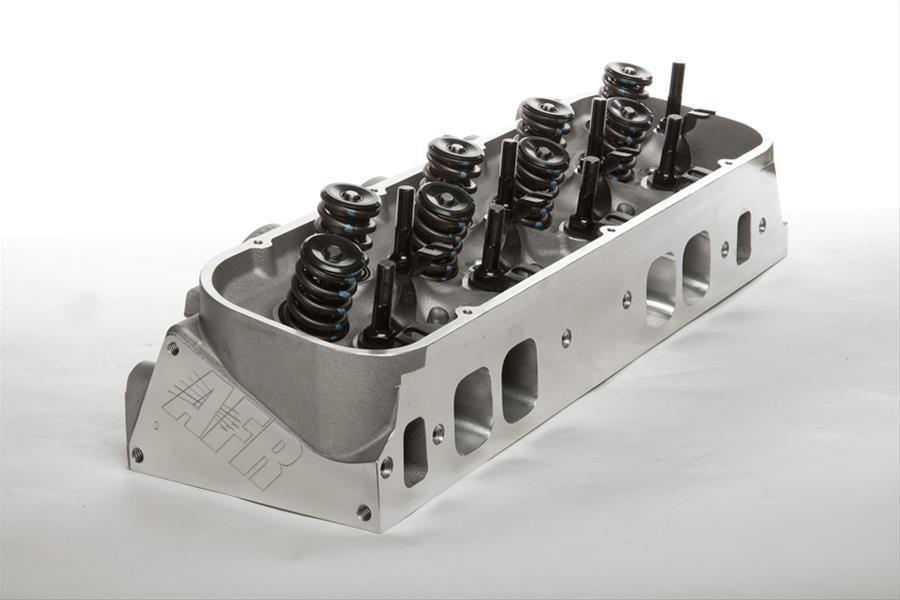

Aeroflow Research AFR 300cc Magnum BBC Cylinder Heads AFR3670AFR 300cc Magnum BBC cylinder heads are suggested for aggressive builds. They boast 100 percent CNC-ported intake, exhaust, and chambers—as well as A356 aluminum casting, and high-quality components throughout. These oval port competition packages are available with hydraulic or solid roller springs. Get the air flowing in your large displacement, high-revving engine with AFR 300cc Magnum BBC cylinder heads.Cylinder Head Style: Assembled
Cylinder Head Material: Aluminum
Cylinder Head Finish: Natural
Combustion Chamber Volume (cc): 113
CNC-Machined Combustion Chamber: Yes
Intake Runner Volume (cc): 300cc
CNC-Machined Intake Runner: Yes
CNC-Machined Exhaust Runner: Yes
Combustion Chamber Style: Semi-open
Intake Port Shape: Oval
Intake Port Location: Standard
Exhaust Port Shape: Round
Exhaust Port Location: Standard
Intake Valves Included: Yes
Intake Valve Diameter (in): 2.300 in.
Exhaust Valves Included: Yes
Exhaust Valve Diameter (in): 1.880 in.
Valve Springs Included: Yes
Outside Diameter of Outer Spring (in): 1.550 in.
Damper Spring Included: No
Number of Springs Per Valve: Dual
Retainers Included: Yes
Retainer Material: Chromoly steel
Locks Included: Yes
Lock Style: 10 degree
Valve Stem Seals Included: Yes
Rocker Arm Studs Included: Yes
Rocker Arm Nut Thread Size: 7/16-20 in.
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: Yes
Guideplate Pushrod Size: 3/8 in.
Valve Cover Mounting Style: Perimeter bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 24
Exhaust Valve Angle: 24
Valve Guides Included: Yes
Valve Guide Material: Bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 5-angle
Valve Seat Material: Ductile iron
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: No
Quantity: Sold as a pair.
Notes: Includes valve springs for mechanical roller cam applications.
