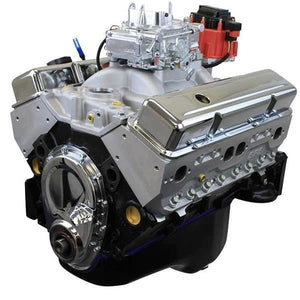

BluePrint BP3505CTC Chev SB 350 CI Crate Engine Dressed Long w/ Carb 390HP

BluePrint Engines GM 350 C.I.D. 390 HP Dressed Long Block Crate Engines

BluePrint Engines GM 350 C.I.D. 390 HP Dressed Long Block crate engines are available with fuel injection—and base or deluxe carbureted models.

Select BluePrint Engines are imported to order via airfreight, with delivery times typically ranging from 1 to 15 days. For an accurate ETA on specific models, please don't hesitate to contact us.

SPECIFICATIONS FOR ALL MODELS INCLUDE:

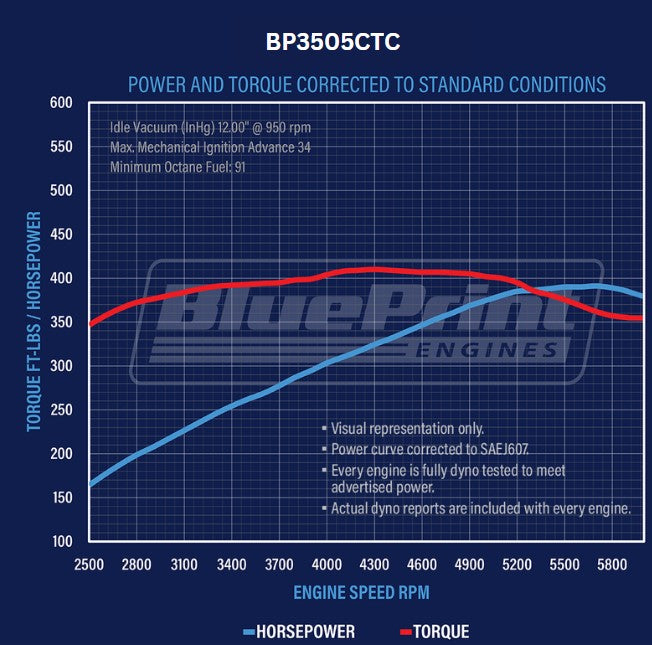

• HP and Torque: 390 hp / 410 lbs.-ft.
• Compression Ratio: 9.2:1
• Aluminum Heads
• Hydraulic Roller Cam
• Cast Iron Crankshaft
• Hypereutectic Pistons

BLOCK:

• NEW BluePrint Cast Iron Block
• Manufactured and Machined in the USA
• 4-Bolt Main
• 4.000 in. Bore
• 1-Piece Rear Main Seal
• Mech fuel pump provision: Yes
• Passenger Side Dipstick
• Drilled and tapped for clutch linkage

ROTATING ASSEMBLY:

• Cast Iron Crankshaft
• 3.480 in. Stroke
• Forged 5.700 in. connecting rods
• Hypereutectic pistons
• Internal Front/ External Rear engine balance

CYLINDER HEADS:

• BluePrint Aluminum Cylinder Heads
• 64cc chamber
• 2.02 in. intake/1.60 in. exhaust valves
• 195cc intake/75cc exhaust runners

CAM SPECS:

• Cam Type: Roller
• .495 Intake / .502 Exhaust
• 220 Intake / 224 Exhaust duration @ .050
• 114 degree lobe separation

IGNITION TIMING:

• 32 Degrees Total at 3,500 rpm

ALSO INCLUDES:

• Valve covers
• Oil pan
• Timing cover
• Aluminum intake
• HEI distributor
• Dyno test results shipped with engine

INCLUDED ONLY WITH FUEL INJECTION MODEL BP3505CTF:

• EFI system

INCLUDED ONLY WITH BASE CARBURETED MODEL BP3505CTC:

• 600 cfm carburetor

INCLUDED ONLY WITH DELUXE CARBURETED MODEL BP3505CTCD:

• Harmonic balancer
• Spark plugs
• Spark plug wires
• Standard Rotation Long Style Water Pump
• Waterneck and Thermostat
• Fuel Pump
• 600 cfm carburetor

BP3505CTC Specifications:

• UPC: 00887753841179
• Crate Engine Family: Chevy Small Block
• Actual Engine Displacement: 5.7L/350
• Crate Engine Cylinder Head Material: Aluminum
• Engine Block Material: Cast iron
• Advertised Compression Ratio: 9.2:1
• Assembled: Yes
• Engine Balance: Internal/External
• Cam Style: Hydraulic roller, OE roller
• Rear Main Seal Style: 1-piece
• Intake Manifold Included: Yes
• Intake Manifold Style: Carbureted
• Cylinder Heads Included: Yes
• Carburetor Included: Yes
• Throttle Body Included: No
• Distributor Included: Yes
• Oil Pan Included: Yes
• Valve Covers Included: Yes
• Timing Cover Included: Yes
• Water Pump Included: No
• Harmonic Balancer Included: No
• Flexplate Included: No
• Flywheel Included: No
• Air Cleaner Included: No
• Spark Plugs Included: No
• Spark Plug Wires Included: No
• Computer Included: No
• Wiring Harness Included: No
• Supercharger Included: No
• Remanufactured: No
• Quantity: Sold individually
• Notes: This engine is not designed, nor intended to be used in any marine applications.
