BluePrint BP38318CT1 Chev SB 383 CI Stroker Crate Engine Long 436HP

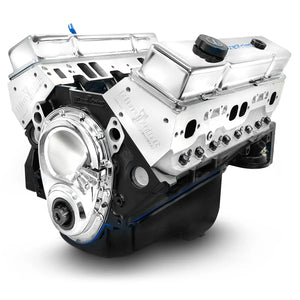

BluePrint Engines GM 383 C.I.D. 436 HP Base Stroker Long Block Crate Engines

BluePrint Engines GM 383 c.i.d. 436 hp base stroker long block crate engines provide a solid foundation to bring your vehicle back to peak performance. They feature a new one-piece rear main BluePrint engine block with 4-bolt mains and a passenger side dipstick. Inside the block is a robust rotating assembly, including a cast crankshaft, connecting rods, and 10.1:1 compression hypereutectic pistons.

Select BluePrint Engines are imported to order via airfreight, with delivery times typically ranging from 1 to 15 days. For an accurate ETA on specific models, please don't hesitate to contact us.

Key features:

• HP and Torque: 436 hp
• Compression Ratio: 10.1:1
• Full Roller Camshaft
  -- Lift: .544 intake / .555 exhaust
  -- Duration @ .050: 230 intake / 236 exhaust
  -- Lobe Separation: 110 degrees

BLOCK:

• New BluePrint Engine Block
• 4-bolt mains
• 1-piece rear main seal
• Passenger side dipstick

ROTATING ASSEMBLY:

• Cast crankshaft
• Cast connecting rods
• Hypereutectic pistons

CAMSHAFT:

• Roller camshaft
  -- .544 in. intake / .555 in. exhaust lift
  -- 230 intake / 236 exhaust duration @ .050
  -- 110 degree lobe separation

ALSO INCLUDES:

• Oil pan
• Valve covers
• Timing cover

Specifications

• UPC: 816671020502
• Crate Engine Family: Chevy Small Block
• Actual Engine Displacement: 6.3L/383
• Crate Engine Cylinder Head Material: Aluminum
• Engine Block Material: Cast iron
• Advertised Compression Ratio: 10.0:1
• Assembled: Yes
• Engine Balance: External
• Cam Style: Hydraulic roller, OE roller
• Rear Main Seal Style: 1-piece
• Intake Manifold Included: No
• Cylinder Heads Included: Yes
• Carburetor Included: No
• Throttle Body Included: No
• Distributor Included: No
• Oil Pan Included: Yes
• Valve Covers Included: Yes
• Timing Cover Included: Yes
• Water Pump Included: No
• Harmonic Balancer Included: No
• Flexplate Included: No
• Flywheel Included: No
• Air Cleaner Included: No
• Spark Plugs Included: No
• Spark Plug Wires Included: No
• Computer Included: No
• Wiring Harness Included: No
• Supercharger Included: No
• Remanufactured: No
• Quantity: Sold individually
• Notes: This engine is not designed, nor intended to be used in any marine applications.
