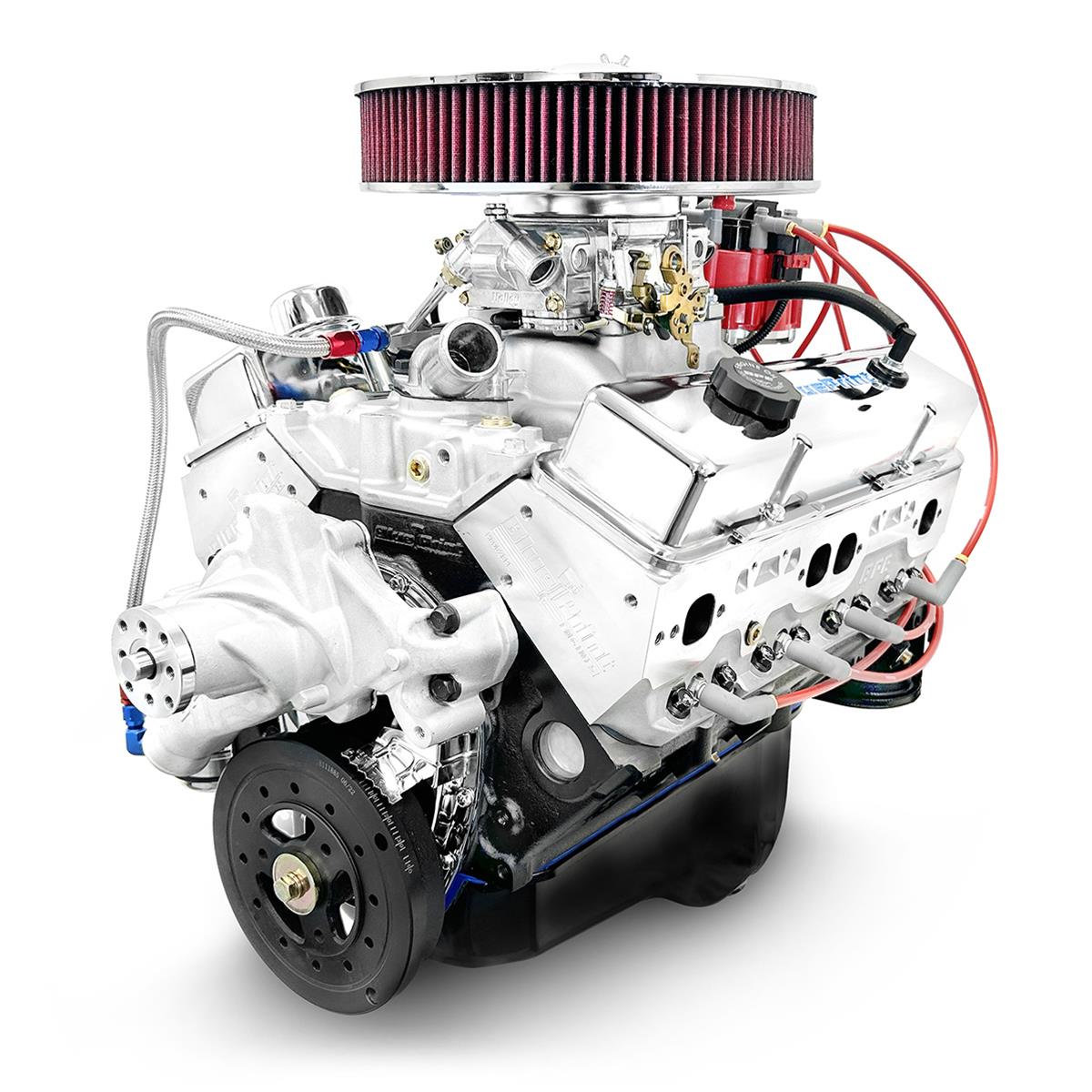

BluePrint BP38318CTC1D Chev SB 383 CI Stroker Crate Engine Dressed w/ Carb 436HP

BluePrint Engines GM 383 C.I.D. 436 HP Dressed Stroker Long Block Crate Engines

Add serious power to your ride with a BluePrint GM 383 c.i.d. 436 hp dressed stroker long block crate engine. These engines are built from the ground up to deliver reliable 436 hp and 443 lbs.-ft. of torque, perfect for street rods, muscle cars, or any project needing substantial performance. Hand-assembled and precision-balanced, these engines are designed to run smoothly and reliably for years.

Select BluePrint Engines are imported to order via airfreight, with delivery times typically ranging from 1 to 15 days. For an accurate ETA on specific models, please don't hesitate to contact us.

Product features and specifications:

• 4-bolt main block
• New cast crankshaft
• Hypereutectic pistons
• Chevy heavy beam rods with 150,000 psi bolts
• Moly rings
• Balanced rotating assembly
• Melling high-volume oil pump

Camshaft:

• Hydraulic roller lifter camshaft
  -- .544 in. intake / .555 in. exhaust lift
  -- 230 intake / 236 exhaust duration @ .050
  -- 110 degree lobe separation
• Heavy-duty double roller timing set

Cylinder Heads:

• Aluminum cylinder heads
• Hardened retainers and springs
• Swirl-polished intake and exhaust valves
• Hardened pushrods

Additional features:

• Dual-plane satin finish intake manifold
• Carburetion
• Distributor, plug wires, and plugs
• Water pump
• New valve covers

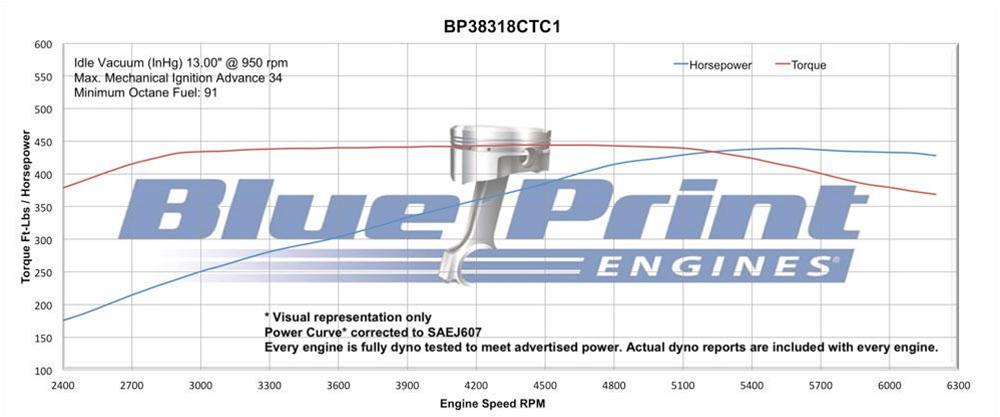

• Dyno tested—with results shipped

Specifications:

• UPC: 00887753743862
• Crate Engine Family: Chevy Small Block
• Actual Engine Displacement: 6.3L/383
• Crate Engine Cylinder Head Material: Aluminum
• Engine Block Material: Cast iron
• Advertised Compression Ratio: 10.0:1
• Assembled: Yes
• Engine Balance: External
• Cam Style: Hydraulic roller, OE roller
• Rear Main Seal Style: 1-piece
• Intake Manifold Included: Yes
• Intake Manifold Style: Carbureted
• Cylinder Heads Included: Yes
• Carburetor Included: Yes
• Throttle Body Included: No
• Distributor Included: Yes
• Oil Pan Included: Yes
• Valve Covers Included: Yes
• Timing Cover Included: Yes
• Water Pump Included: Yes
• Water Pump Style: Long
• Harmonic Balancer Included: Yes
• Flexplate Included: No
• Flywheel Included: No
• Air Cleaner Included: Yes
• Spark Plugs Included: Yes
• Spark Plug Wires Included: Yes
• Computer Included: No
• Wiring Harness Included: No
• Supercharger Included: No
• Remanufactured: No
• Quantity: Sold individually
• Notes: Ready to drop in and includes fuel pump, 750 cfm carburetor, and HEI distributor. Will not clear stock Corvette hood. Passenger side dipstick. Block is drilled and tapped for clutch linkage.
• Special Attention: Cylinder heads feature a 0.500 in. raised exhaust port.
