BluePrint Engines

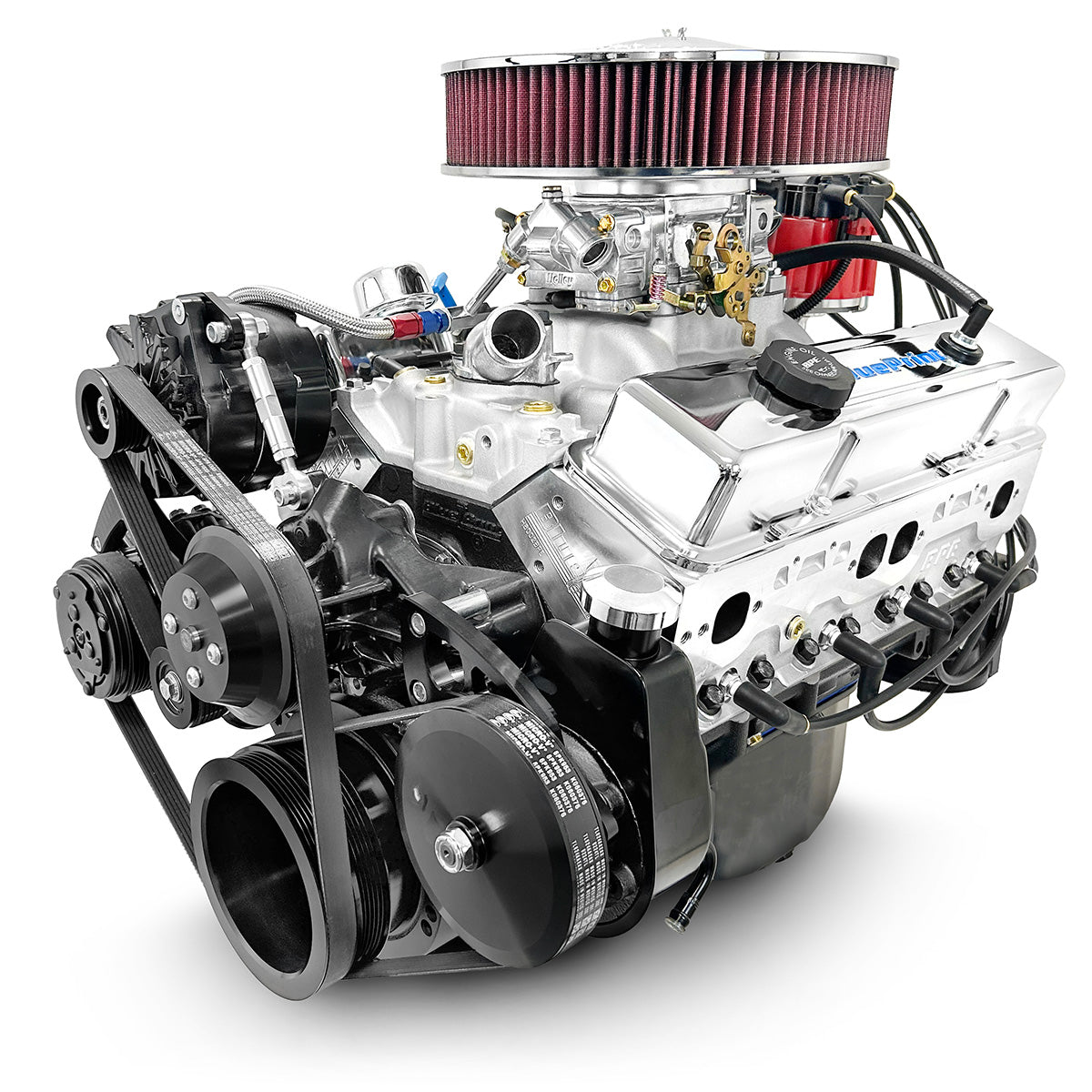

BluePrint BP38318CTC1DK Chev SB 383 CI Stroker Crate Engine Dressed w/ Carb 430HP

BluePrint BP38318CTC1DK Chev SB 383 CI Stroker Crate Engine Dressed w/ Carb 430HP

BP-BP38318CTC1DK
$17,249.95 AUD
$17,249.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

BluePrint Engines GM 383 C.I.D. 436 HP Base Stroker Long Block Crate Engines

BluePrint Engines GM 383 c.i.d. 436 hp base stroker long block crate engines will provide you a great foundation to return your vehicle to the performance level you desire. They feature a new one-piece rear main BluePrint engine block with 4-bolt mains and passenger side dipstick. Inside the block is a cast crankshaft and connecting rod rotating assembly, with 10.1:1 compression hypereutectic pistons hung on the end. The full roller camshaft provides .544 in. intake/.555 in. exhaust lift with 230 intake/236 exhaust duration at .050 with a 110 degree lobe separation. The engines also include a new oil pan, a set of valve covers, and a timing cover to finish them off.

Select BluePrint Engines are imported to order via airfreight, with delivery times typically ranging from 1 to 15 days. For an accurate ETA on specific models, please don't hesitate to contact us.

Specifications

  • Crate Engine Family: Chevy Small Block
  • Actual Engine Displacement: 6.3L/383
  • Crate Engine Cylinder Head Material: Aluminum
  • Engine Block Material: Cast iron
  • Advertised Compression Ratio: 10.0:1
  • Assembled: Yes
  • Engine Balance: External
  • Cam Style: Hydraulic roller, OE roller
  • Rear Main Seal Style: 1-piece
  • Intake Manifold Included: Yes
  • Intake Manifold Style: Carbureted
  • Cylinder Heads Included: Yes
  • Carburetor Included: Yes
  • Throttle Body Included: No
  • Distributor Included: Yes
  • Oil Pan Included: Yes
  • Valve Covers Included: Yes
  • Timing Cover Included: Yes
  • Water Pump Included: Yes
  • Water Pump Style: Long
  • Harmonic Balancer Included: Yes
  • Flexplate Included: No
  • Flywheel Included: No
  • Air Cleaner Included: Yes
  • Spark Plugs Included: Yes
  • Spark Plug Wires Included: Yes
  • Computer Included: No
  • Wiring Harness Included: No
  • Supercharger Included: No
  • Remanufactured: No
  • Quantity: Sold individually
  • Special Attention: Features front accessory drive, A/C compressor, alternator, and power steering pump. Will not fit Corvette.

Manufacturer Part Number:

View full details
