BluePrint BP38318CTCKV Chev SB 383 CI Stroker Crate Engine Dressed w/ Carb 436HP

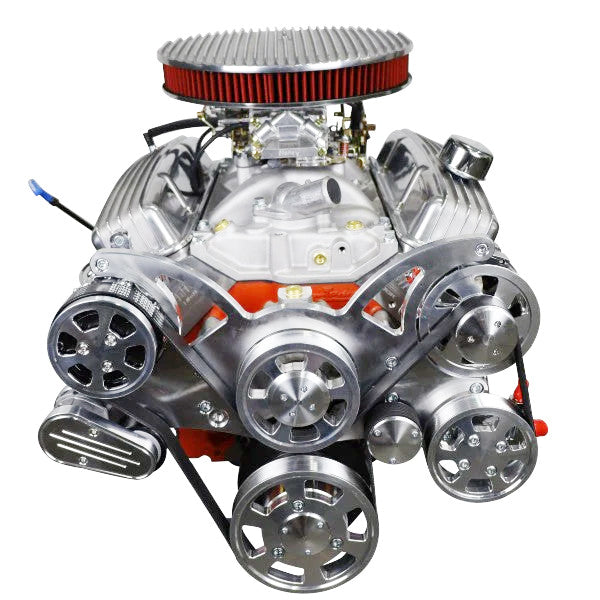

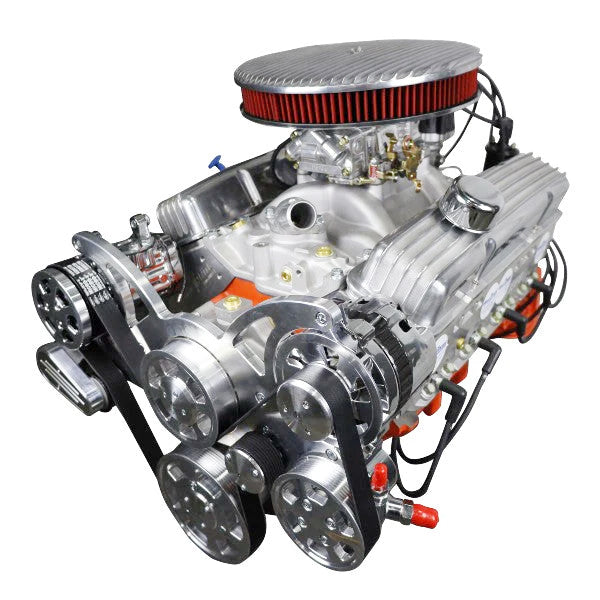

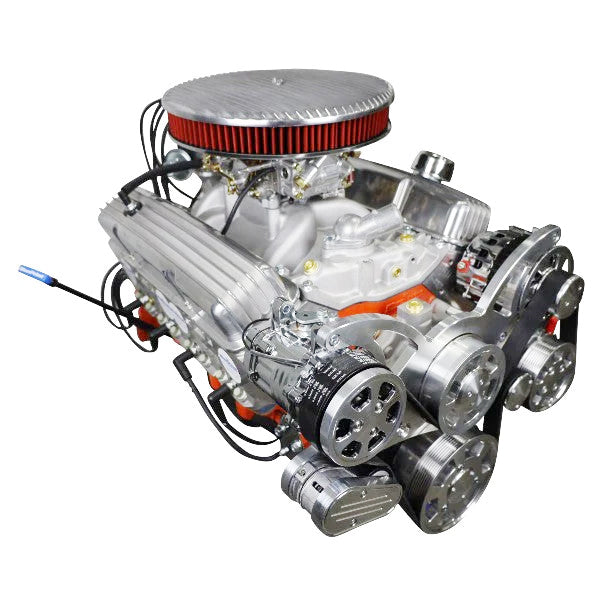

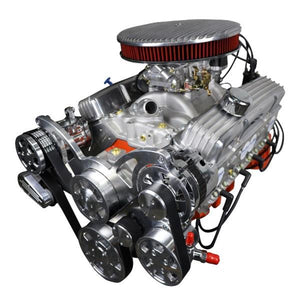

BluePrint Engines Low Profile GM 383 C.I.D. 436 HP Dressed Long Block Crate Engines

BluePrint Engines low profile GM 383 c.i.d. 436 hp dressed long block crate engines are fully dyno tested, passed vigorous inspections, and are prepared to power up your project. These GM-compatible engines are designed with a small diameter harmonic balancer, small cap distributor, and drop base air cleaner for vehicles with low firewall or hood clearance. They are a great choice to replace your tired old factory engine with exciting performance.

Features, specs, and contents:

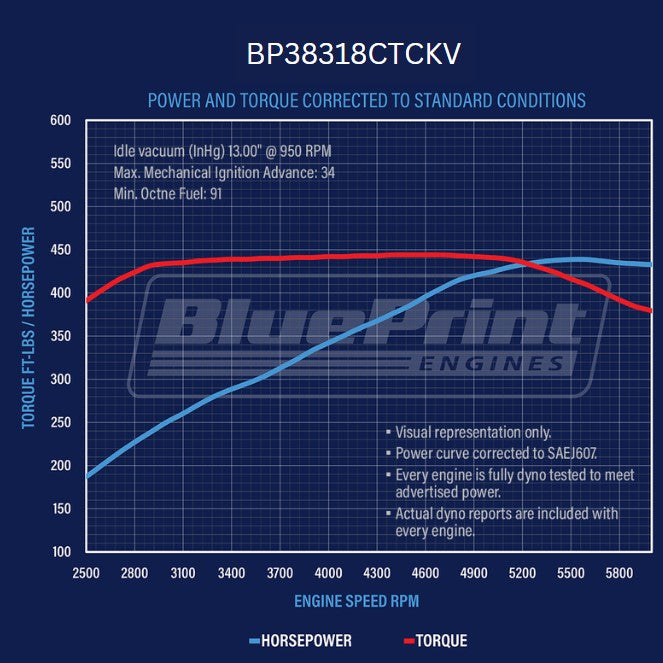

• Horsepower and torque: 436 hp/443 lb.-ft.
• Cast iron block
• 4-bolt main
• 4.00 in. bore
• Cast steel crankshaft
• 3.750 in. stroke
• OEM-type 5.700 in. connecting rods with 150,000 psi bolts
• Hypereutectic pistons
• Aluminum cylinder heads—64cc chamber
• 2.02 in. intake/1.60 in. exhaust valves
• 195cc intake/75cc exhaust runners
• Hydraulic roller cam
  • .544 intake/.555 exhaust
  • 230 intake/236 exhaust duration at .050
  • 110 degree lobe separation
• Premium vintage valve covers and air cleaner, aluminum intake manifold, oil pan, timing cover, spark plugs and under-header spark plug wires, small cap ready-to-run distributor with tach drive and coil, harmonic balancer, fuel pump and feed line, 750 cfm carburetor, and front accessory drive.

Select BluePrint Engines are imported to order via airfreight, with delivery times typically ranging from 1 to 15 days. For an accurate ETA on specific models, please don't hesitate to contact us.

Specifications:

• UPC: 00887753800466
• Crate Engine Family: Chevy Small Block
• Actual Engine Displacement: 6.3L/383
• Crate Engine Cylinder Head Material: Aluminum
• Engine Block Material: Cast iron
• Advertised Compression Ratio: 10.0:1
• Assembled: Yes
• Engine Balance: External
• Cam Style: Hydraulic roller, OE roller
• Rear Main Seal Style: 1-piece
• Intake Manifold Included: Yes
• Intake Manifold Style: Carbureted
• Cylinder Heads Included: Yes
• Carburetor Included: Yes
• Throttle Body Included: No
• Distributor Included: Yes
• Oil Pan Included: Yes
• Valve Covers Included: Yes
• Timing Cover Included: Yes
• Water Pump Included: Yes
• Water Pump Style: Long
• Harmonic Balancer Included: Yes
• Flexplate Included: No
• Flywheel Included: No
• Air Cleaner Included: Yes
• Spark Plugs Included: Yes
• Spark Plug Wires Included: Yes
• Computer Included: No
• Wiring Harness Included: No
• Supercharger Included: No
• Remanufactured: No
• Quantity: Sold individually
• Notes: Engine has 4-bolt mains. Includes a 750 cfm carburetor with manual choke. Includes front accessory drive system.
