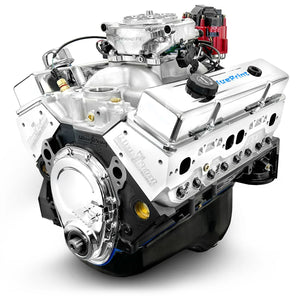

BluePrint BP38318CTF1 Chev SB 383 CI Stroker Crate Engine Dressed w/ EFI 436HP

BluePrint Engines GM 383 C.I.D. 436 HP Dressed Stroker Long Blocks with Fuel Injection

BluePrint Engines GM 383 c.i.d. 436 hp dressed stroker long block crate engines with fuel injection will provide you a great foundation to return your vehicle to the performance level you desire. They feature a new one-piece rear main BluePrint engine block with 4-bolt mains and a passenger side dipstick. Inside the block is a cast crankshaft and connecting rod rotating assembly, with 10.1:1 compression hypereutectic pistons hung on the end. The full roller camshaft provides .544 intake/.555 exhaust lift with 230 intake/236 exhaust duration at .050 with a 110 degree lobe separation. Up top is a dual-plane intake manifold with Holley Sniper fuel injection system. The engines also include an oil pan, a set of valve covers, and a timing cover to finish them off.

Select BluePrint Engines are imported to order via airfreight, with delivery times typically ranging from 1 to 15 days. For an accurate ETA on specific models, please don't hesitate to contact us.

Specifications:

• UPC: 816671020526
• Crate Engine Family: Chevy Small Block
• Actual Engine Displacement: 6.3L/383
• Crate Engine Cylinder Head Material: Aluminum
• Engine Block Material: Cast iron
• Advertised Compression Ratio: 10.0:1
• Assembled: Yes
• Engine Balance: External
• Cam Style: Hydraulic roller, OE roller
• Rear Main Seal Style: 1-piece
• Intake Manifold Included: Yes
• Intake Manifold Style: Carbureted
• Cylinder Heads Included: Yes
• Carburetor Included: No
• Throttle Body Included: Yes
• Distributor Included: Yes
• Oil Pan Included: Yes
• Valve Covers Included: Yes
• Timing Cover Included: Yes
• Water Pump Included: No
• Harmonic Balancer Included: No
• Flexplate Included: No
• Flywheel Included: No
• Air Cleaner Included: No
• Spark Plugs Included: No
• Spark Plug Wires Included: No
• Computer Included: Yes
• Wiring Harness Included: Yes
• Supercharger Included: No
• Remanufactured: No
• Quantity: Sold individually
• Notes: Includes the Holley Sniper EFI system. Fuel system must be purchased separately. This engine is not designed, nor intended to be used in any marine applications. Designed for pre-1976 street vehicles or any off-road vehicle.
