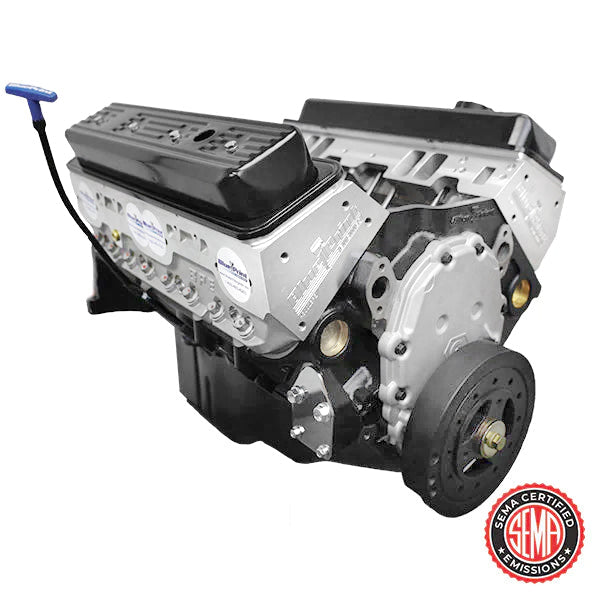

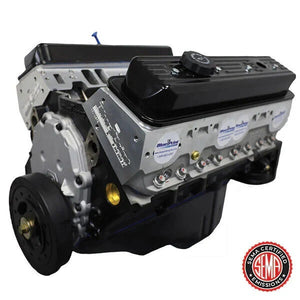

BluePrint BP38350CT1 Chev SB 383 CI Stroker Crate Engine Long 1996-2000 Truck SUV

BluePrint BP38350CT1 Chev SB 383 CI Stroker Crate Engine Long 1996-2000 Truck SUV

BP-BP38350CT1
Regular price $12,249.95 AUD
Regular price Sale price $12,249.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

BluePrint Engines 383 C.I.D Stroker 1996-2000 GM Vortec Truck/SUV Crate Engines

Give your Chevy/GMC truck a new powerplant using one of these BluePrint Engines 383 C.I.D Stroker 1996-2000 GM Vortec Truck/SUV crate engines. They feature increased horsepower and torque over the factory engine and install in any 1996-2000 Chevy or GMC truck or SUV. The crate engines are designed to re-use the factory EFI and require no tuning.

BluePrint Engines 383 C.I.D Stroker 1996-2000 GM Vortec Truck/SUV crate engines feature:

New BluePrint cast iron block

  • 4-bolt main
  • 1-piece rear main seal
  • Mechanical fuel pump provision
  • Passenger side dipstick
  • Drilled and tapped for clutch linkage

New BluePrint steel crankshaft with 3.750 in. stroke

OEM type 5.700 in. connecting rods w/ 150,000 psi bolts

Hypereutectic pistons

Externally balanced front/externally balanced rear

BluePrint aluminum cylinder heads

  • 64cc chamber
  • 2.02 in. intake/1.60 in. exhaust valves
  • 195cc intake/75cc exhaust runners

Hydraulic roller camshaft

  • .477 Intake/.471 Exhaust
  • 202 Intake / 212 Exhaust duration
  • @ .050, 115 degree lobe separation

Select BluePrint Engines are imported to order via airfreight, with delivery times typically ranging from 1 to 15 days. For an accurate ETA on specific models, please don't hesitate to contact us.

Specifications

  • UPC: 00887753743916
  • Crate Engine Family: Chevy Small Block
  • Actual Engine Displacement: 6.3L/383
  • Crate Engine Cylinder Head Material: Aluminum
  • Advertised Compression Ratio: 10.0:1
  • Assembled: Yes
  • Engine Balance: External
  • Cam Style: Hydraulic roller, OE roller
  • Rear Main Seal Style: 1-piece
  • Intake Manifold Included: No
  • Cylinder Heads Included: Yes
  • Carburetor Included: No
  • Throttle Body Included: No
  • Distributor Included: No
  • Oil Pan Included: Yes
  • Valve Covers Included: Yes
  • Timing Cover Included: Yes
  • Water Pump Included: No
  • Harmonic Balancer Included: Yes
  • Flexplate Included: No
  • Flywheel Included: No
  • Air Cleaner Included: No
  • Spark Plugs Included: No
  • Spark Plug Wires Included: No
  • Computer Included: No
  • Wiring Harness Included: No
  • Supercharger Included: No
  • Remanufactured: No
  • Quantity: Sold individually
  • Notes: This engine is based off and designed as a replacement for the 1996-2000 Vortec truck engine and designed to be compatible with the factory fuel injection. Requires a late-style 350 c.i.d. (1-piece rear main) weighted flexplate/flywheel.
