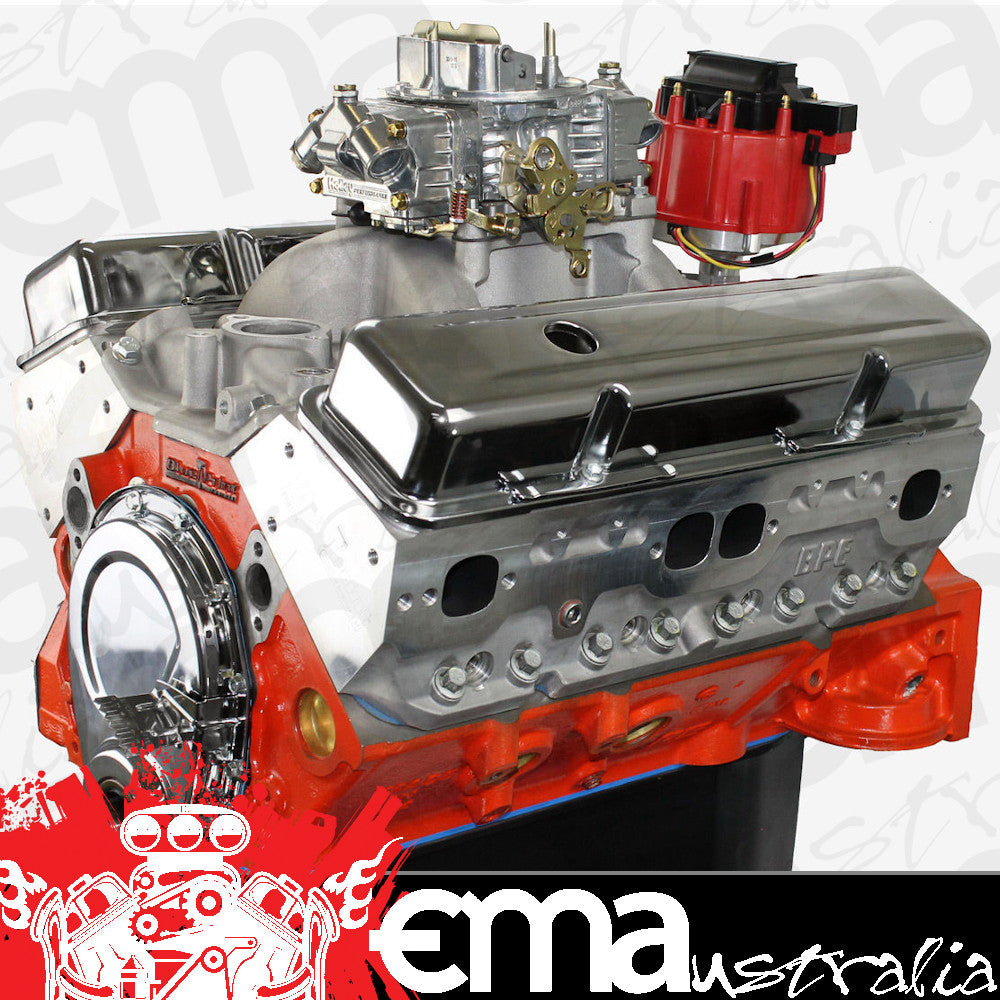

Blueprint Engines BP4002CTC1 Blueprint Chev 400 Dressed Crate Engine 508Hp 473Ft/Lb Brand New Block

Blueprint Engines BP4002CTC1 Blueprint Chev 400 Dressed Crate Engine 508Hp 473Ft/Lb Brand New Block

BP-BP4002CTC1
$15,999.95 AUD
$15,999.95 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

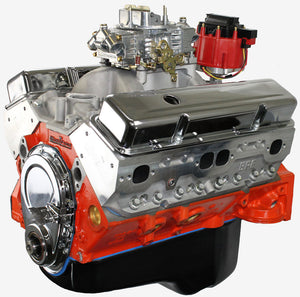

Dressed for high performance, BluePrint Engines GM 400 c.i.d. 508 hp crate engines are not your grandpa's 400! Built in the USA by skilled craftsmen, these blocks are assembled with ignition and carburetor, as well as valve covers, oil pan, and timing cover. The most complete crate engine available, they offer you fast, easy installation. And because they're dyno-tested, you can be sure all the components will work together perfectly!

BluePrint's GM 400 c.i.d. 508 hp dressed engines feature:
  • Cast iron one-piece rear main block with 4-bolt mains
  • Compression ratio: 10.3:1
  • Forged crankshaft
  • 5.7 in. connecting rods
  • 150,000 psi rod bolts
  • Forged pistons
  • High-volume oil pump
  • Hydraulic roller cam: .553/.576 Lift; 236°/242° Dur. @ .050"; 110° LS
  • 1.6 Roller rockers
  • Roller lifters
  • BluePrint H8103 aluminum heads with 64cc chamber
  • Hardened retainers and springs
  • 2.08 swirl polished intake valves
  • 1.60 swirl polished exhaust valves


GM 400 • Base Dressed Engine • Aluminum Heads • Roller Cam
  • HP & Torque: 508 HP / 473 FT LBS
  • Compression Ratio: 10.3:1
  • Aluminum Heads
  • Forged Pistons
  • Roller Cam
  • Forged Crank
  • Part #: BP4002CTC1
Block:
  • BRAND NEW BluePrint Cast Iron Block
  • 4 Bolt Mains
  • Square and parallel decked
  • Align honed main bearing bore
  • Cylinders are sonic tested for thickness
  • Cylinders honed on computer controlled machine to within .0002 straightness and roundness
  • 1-Piece Rear Main Seal
Rotating Assembly:
  • New forged crankshaft
  • 5.7" connecting rods
  • 150,000 psi rod bolts
  • Forged pistons
  • Hastings moly rings
  • Rotating assembly balanced to within 2 grams
  • High volume oil pump
  • Hydraulic roller cam
  • Roller lifters
Cylinder Heads:
  • BluePrint aluminum — 64cc chamber
  • Hardened retainers and springs
  • 2.08 swirl polished intake valves
  • 1.60 swirl polished exhaust valves
  • BP Aluminum Head Part# H8103
Cam Specs:
  • Cam Type: Roller
  • .553 Intake .576 Exhaust
  • 236 Intake / 242 Exhaust duration
  • @ .050 - 110° lobe separation
  • 1.6 Roller rockers
Ignition Timing:
  • 10-16° inital and total timing 32-34° at 3500 RPM
  • Also Includes:
  • Intake Manifold — dual plane, satin aluminum
  • Carburetor — Holley 850cfm
  • Valve covers, oil pan and timing cover
  • Brass freeze plugs

Dyno test results shipped with engine


Notes:

  • NEW BluePrint block manufactured and machined in the USA!

Manufacturer Part Number:
