Blueprint Engines

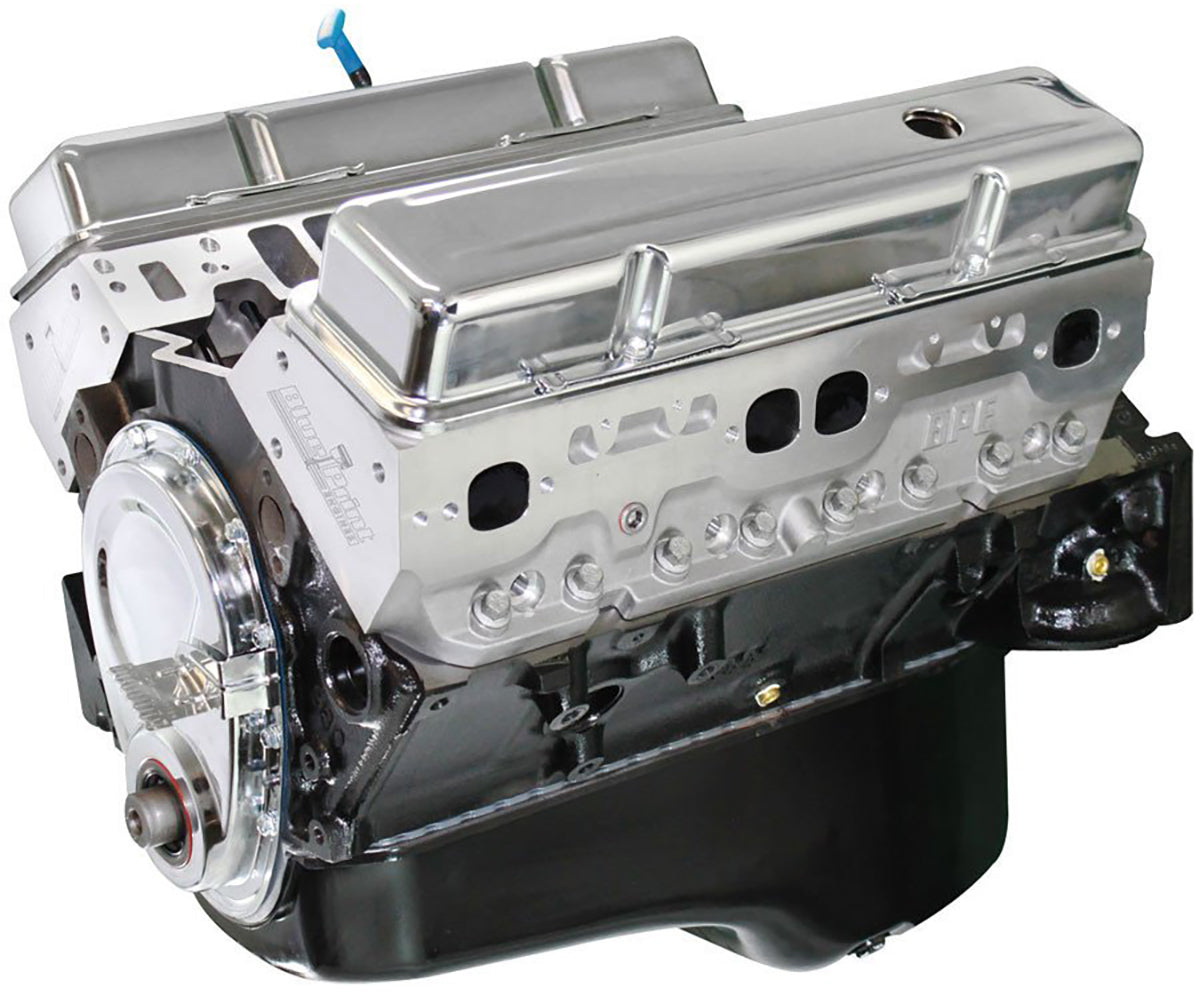

Blueprint Engines PSEBP35513CT1 Sb Chev 355 C.I.D Long Block 390Hp / 410 Ft Lbs 10.0:1 Comp Aluminium Heads

Blueprint Engines PSEBP35513CT1 Sb Chev 355 C.I.D Long Block 390Hp / 410 Ft Lbs 10.0:1 Comp Aluminium Heads

PSEBP35513CT1
$9,078.90 AUD
$9,078.90 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

NOTE: Pictures of Crate Engines are for reference only, engine componenets & accessories are subject to change by manufacture without notice based on availability of parts at time of assembly.

DESCRIPTION:

  • Dyno Tested
  • HP & Torque: 390 HP / 410 FT LBS
  • Compression Ratio: 10.0:1
  • Aluminum Heads
  • Hydraulic Roller Cam
  • Cast Steel Crank
  • Hypereutectic Pistons

BLOCK:

  • Hand picked seasoned block
  • Square and parallel decked
  • Align honed main bearing bore
  • Cylinders honed on computer controlled machine to within .0002 straightness and roundness
  • Cylinders are sonic tested for thickness
  • 4-Bolt Main
  • 4.000" Bored .040" Over
  • 1-Piece Rear Main Seal
  • Mech fuel pump provision: Yes
  • Passenger Side Dipstick
  • Drilled and tapped for clutch linkage

ROTATING ASSEMBLY:

  • Cast steel crankshaft
  • 3.480" Stroke
  • OEM type 5.700" connecting rods w/ 150,000 psi bolts
  • Hypereutectic pistons
  • Internal Front/ External Rear

CYLINDER HEADS:

  • BluePrint Aluminum Cylinder Heads - H8002K
  • 64cc chamber
  • 2.02" intake/1.60" exhaust valves
  • 195cc intake/75cc exhaust runners

CAM SPECS:

  • Cam Type: Roller
  • .495 Intake .503 Exhaust
  • 220 Intake / 224 Exhaust duration
  • @ .050 - 112 degree lobe separation

IGNITION TIMING:

  • 34 Degrees Total at 3500 RPM

ALSO INCLUDES:

  • New valve covers
  • Oil pan
  • Timing cover
  • Brass freeze plugs
  • Dyno test results shipped with engine

NOTES:

  • This engine is very similar to our BP35512CT1, but this engine offers a roller cam.
  • A bronze distributor gear is NOT recommended on this engine
  • Recommended spark plugs are Champion 792 with .045" gap
  • Image of engine may not be that of actual engine.


Manufacturer Part Number:
