Blueprint Engines PSEBP38313CTC1 Chev 383 Cu Crate Motor 420Hp

Blueprint Engines PSEBP38313CTC1 Chev 383 Cu Crate Motor 420Hp

PSEBP38313CTC1
$14,256.48 AUD
$14,256.48 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

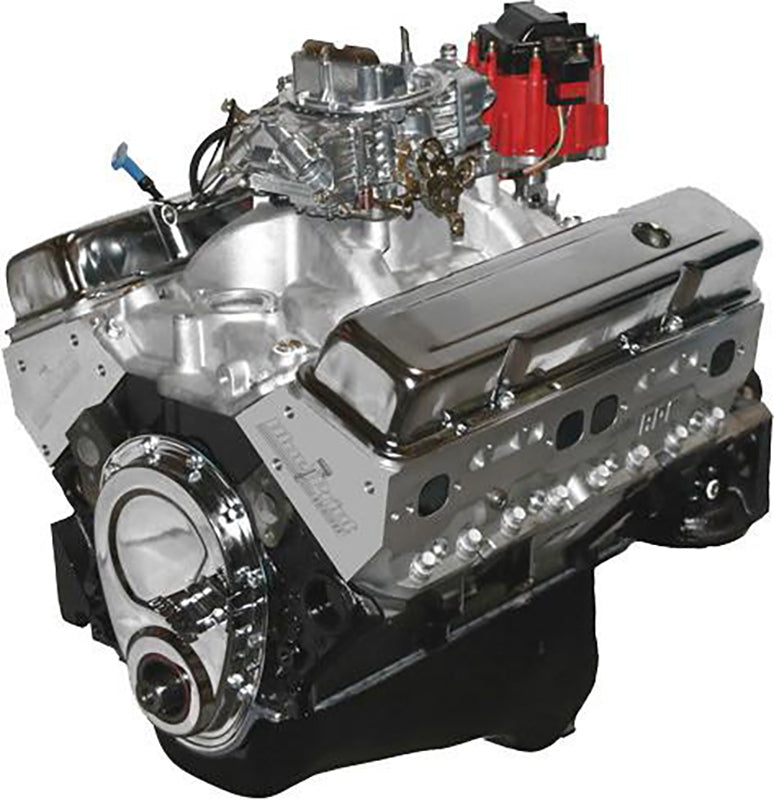

NOTE: Pictures of Crate Engines are for reference only, engine componenets & accessories are subject to change by manufacture without notice based on availability of parts at time of assembly.

Engine Features

  • HP & Torque: 430 HP / 450 FT LBS
  • Compression Ratio: 10.0:1
  • Aluminum Heads
  • Hydraulic Roller Cam
  • Cast Steel Crank
  • Hypereutectic Pistons

BLOCK:

  • Hand picked seasoned block
  • Square and parallel decked
  • Align honed main bearing bore
  • Cylinders honed on computer controlled machine to within .0002 straightness and roundness
  • Cylinders are sonic tested for thickness
  • 4-Bolt Main
  • 4.000" Bored .040" Over
  • 1-Piece Rear Main Seal
  • Mech fuel pump provision: Yes
  • Passenger Side Dipstick
  • Drilled and tapped for clutch linkage

ROTATING ASSEMBLY:

  • New BluePrint Cast steel crankshaft
  • 3.750" Stroke
  • OEM type 5.700" connecting rods w/ 150,000 psi bolts
  • Hypereutectic pistons
  • External Front/ External Rear

CYLINDER HEADS:

  • BluePrint Aluminum Cylinder Heads - H8002K
  • 64cc chamber
  • 2.02" intake/1.60" exhaust valves
  • 195cc intake/75cc exhaust runners

CAM SPECS:

  • Cam Type: Roller
  • .528 Intake .536 Exhaust
  • 221 Intake / 226 Exhaust duration
  • @.050 - 110 degree lobe separation

IGNITION TIMING:

  • 34 Degrees Total at 3500 RPM

ALSO INCLUDES:

  • Valve covers, oil pan and timing cover
  • Aluminum Intake Manifold
  • HEI distributor
  • 750cfm Carburetor
  • Brass freeze plugs
  • Dyno tested and shipped with results

NOTES:

  • Not for use in pollution controlled vehicles.
  • The harmonic balancer recommend for the BP38313CTC1 is a 400 ci weighted, 8" diameter.
  • The flexplate / flywheel recommend for the BP38313CTC1 is a late 350 Weighted (1 pc Rear Main Seal, Externally balanced)
  • Recommended Stall Converter: 2000 to 2400 RPM.


Manufacturer Part Number:
