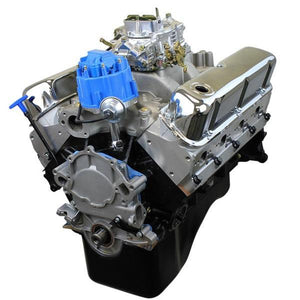

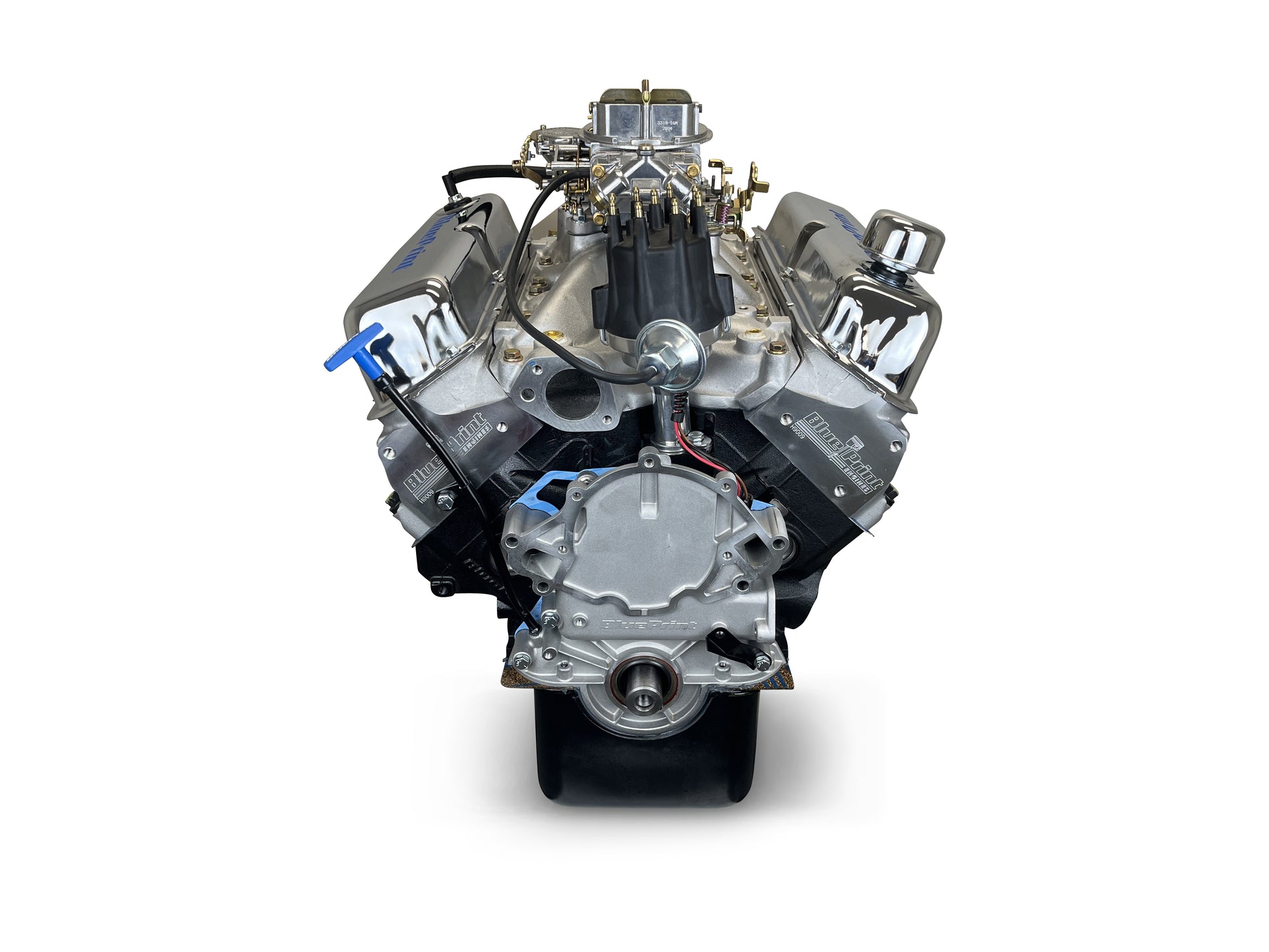

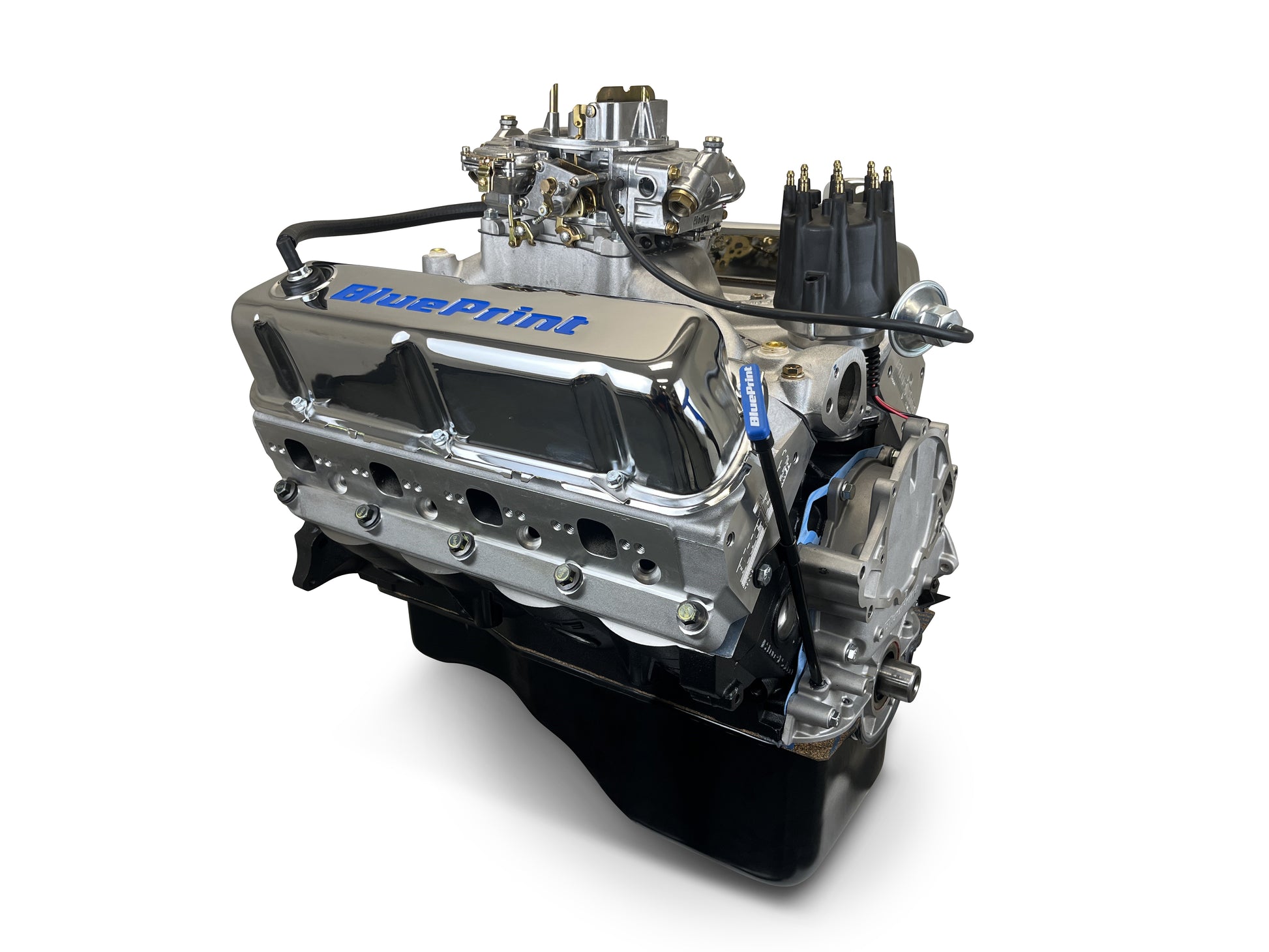

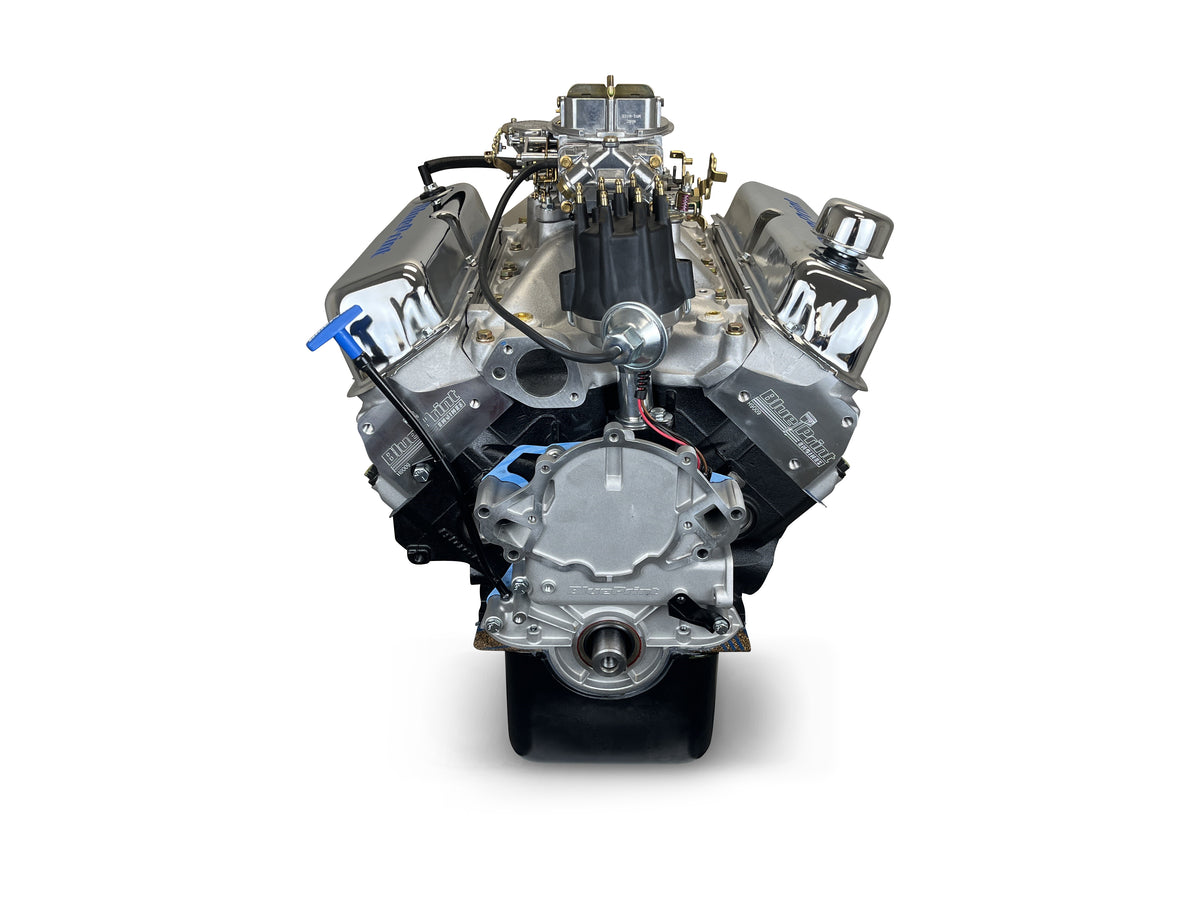

Blueprint Engines BPF4089CTC Ford Windsor Crate Motor 351W 408 CU 450HP

BluePrint Engines Ford 408 C.I.D. 450 HP Stroker Base Crate Engines

BluePrint Engines offers Ford 408 c.i.d. 450 hp Stroker base crate engines—with or without carburetor, distributor, and intake manifold. Here are the basic features and specs:

• Horsepower and torque: 450 hp / 470 lbs.-ft.
• Compression ratio: 9.8:1
• Hydraulic roller cam
• New cast steel crankshaft
• Forged pistons
• Forged I-beam 6.200 in. connecting rods
• Hand-picked seasoned block
• Square and parallel decked
• Line honed main bearing bore
• Cylinders honed on computer-controlled machine to within .0002 straightness and roundness
• Cylinders are sonic tested for thickness
• 4-bolt main
• 4.000 in. bored
• One-piece rear main seal
• Mech fuel pump provision: Yes
• 4.000 in. stroke
• External 28 oz. balance front and rear

CYLINDER HEADS:

• Aluminum cylinder heads
• 60cc chamber
• 2.02 in. intake / 1.60 in. exhaust valves
• 90cc intake / 65cc exhaust runners

CAM SPECS:

• Roller
• .579 Intake / .579 Exhaust
• 236 Intake / 248 Exhaust duration @ .050 - 114 degree lobe separation

IGNITION TIMING:

• 34 degrees total at 3500 rpm

ALSO INCLUDES:

• Oil pan, dipstick, timing cover, and valve covers
• Dyno tested and shipped with results
• Some models also include carburetor, distributor, and intake manifold

Select BluePrint Engines are imported to order via airfreight, with delivery times typically ranging from 1 to 15 days. For an accurate ETA on specific models, please don't hesitate to contact us.

• UPC: 00887753802804
• Crate Engine Family: Ford Windsor
• Actual Engine Displacement: 6.7L/408
• Crate Engine Cylinder Head Material: Aluminum
• Engine Block Material: Cast iron
• Advertised Compression Ratio: 9.8:1
• Assembled: Yes
• Engine Balance: External
• Cam Style: Hydraulic roller, Retro-fit
• Rear Main Seal Style: 2-piece
• Intake Manifold Included: Yes
• Intake Manifold Style: Carbureted
• Cylinder Heads Included: Yes
• Carburetor Included: Yes
• Throttle Body Included: No
• Distributor Included: Yes
• Oil Pan Included: Yes
• Valve Covers Included: Yes
• Timing Cover Included: Yes
• Water Pump Included: No
• Harmonic Balancer Included: No
• Flexplate Included: No
• Flywheel Included: No
• Air Cleaner Included: No
• Spark Plugs Included: No
• Spark Plug Wires Included: No
• Computer Included: No
• Wiring Harness Included: No
• Supercharger Included: No
• Remanufactured: Yes
• Quantity: Sold individually
