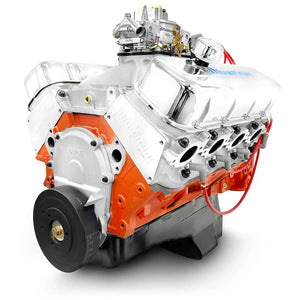

BluePrint PS5401CTC Chev BB 540 Pro Series Stroker Engine Dressed w/ Carb 670HP

BluePrint Engines Pro Series Chevy 540 C.I.D. 670 HP Dressed Long Block Crate Engines

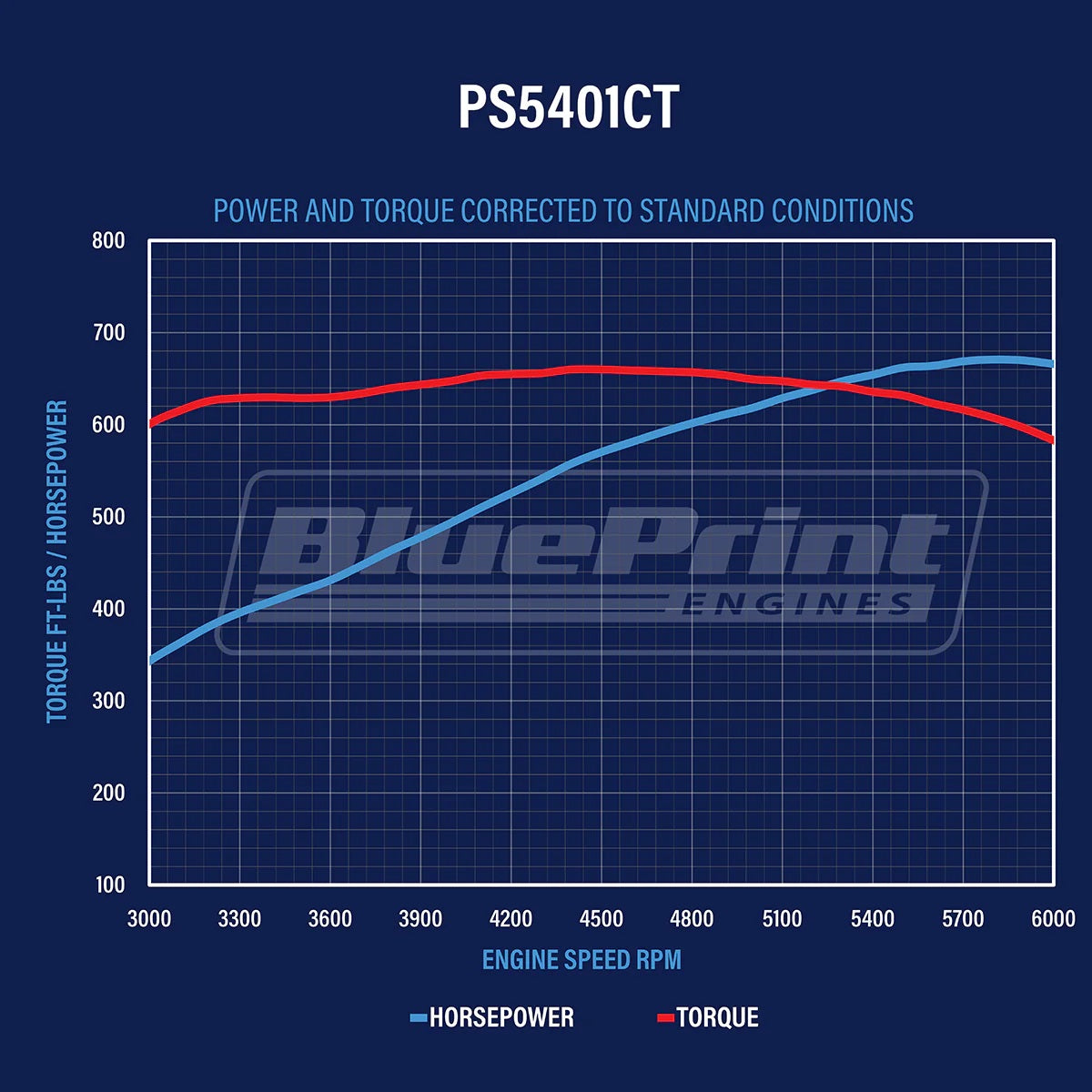

Enter the realm of pavement-grinding power with the BluePrint Pro Series Chevy 540 c.i.d. dressed long block crate engines. These 670 hp powerhouses feature a 30-month/50,000-mile warranty and are the perfect choice for drivability and reliable high-end performance. Additionally, these assemblies are manufactured under strict tolerances and provide outstanding, consistent results. All of the rotating assemblies are balanced within 2 grams on a computerized balancer. BluePrint Pro Series crate engines are also dyno-tested and include the dyno sheets. For high-horsepower, big displacement engines, BluePrint Pro Series Chevy 540 c.i.d. dressed crate engines are the way to go!

Select BluePrint Engines are imported to order via airfreight, with delivery times typically ranging from 1 to 15 days. For an accurate ETA on specific models, please don't hesitate to contact us.

Features include:

• New BluePrint Block
• 4 bolt mains
• Forged crankshaft
• Forged connecting rods
• Hydraulic roller camshaft
  • Lift = 0.647 in. / 0.647 in.
  • Duration @ 0.050 in. = 248 / 254 degrees
  • Lobe Separation = 112 degrees
• Double roller timing chain
• Aluminum cylinder heads
• Carburetor
• Billet distributor

Specifications:

• UPC: 00887753744401
• Crate Engine Family: Chevy Big Block
• Actual Engine Displacement: 8.8L/540
• Crate Engine Cylinder Head Material: Aluminum
• Engine Block Material: Cast iron
• Advertised Compression Ratio: 10.0:1
• Assembled: Yes
• Engine Balance: Internal
• Cam Style: Hydraulic roller, OE roller
• Rear Main Seal Style: 1-piece
• Intake Manifold Included: Yes
• Intake Manifold Style: Carbureted
• Cylinder Heads Included: Yes
• Carburetor Included: Yes
• Throttle Body Included: No
• Distributor Included: Yes
• Oil Pan Included: Yes
• Valve Covers Included: Yes
• Timing Cover Included: Yes
• Water Pump Included: No
• Harmonic Balancer Included: Yes
• Flexplate Included: No
• Flywheel Included: No
• Air Cleaner Included: No
• Spark Plugs Included: Yes
• Spark Plug Wires Included: Yes
• Computer Included: No
• Wiring Harness Included: No
• Supercharger Included: No
• Remanufactured: No
• Quantity: Sold individually.
