BluePrint PS5980CT1 GM 598 CI Pro Series Stroker Crate Engine Long 741HP

BluePrint Engines Pro Series Chevy 598 C.I.D. 724 HP Base Long Block Crate Engines

BluePrint Engines offer the power to start your build with their Pro Series Chevy 598 c.i.d. 724 hp base long block crate engines, which will be the foundation for your performance. To ensure success, they also provide a 30-month/50,000-mile warranty. Start your engines!

Select BluePrint Engines are imported to order via airfreight, with delivery times typically ranging from 1 to 15 days. For an accurate ETA on specific models, please don't hesitate to contact us.

BluePrint Pro Series Chevy 598 specs:

Block:

• New BluePrint 598 BBC
• One-piece rear main seal
• 4-bolt main
• 4.595 in. bore

Rotating assembly:

• Forged crank, piston, and rods
• Piston rings
• Hydraulic roller cam

Cylinder heads:

• BluePrint aluminum, 117cc chamber
• Pushrods
• Rocker arms

Cam Specs:

• .647 intake/.647 exhaust
• 258 intake/266 exhaust duration
• @ .050—112 degree lobe separation

Ignition Timing:

• 38 degree total timing

Also Includes:

• Valve covers, oil pan, and timing cover
• Oil pump
• Champion spark plugs

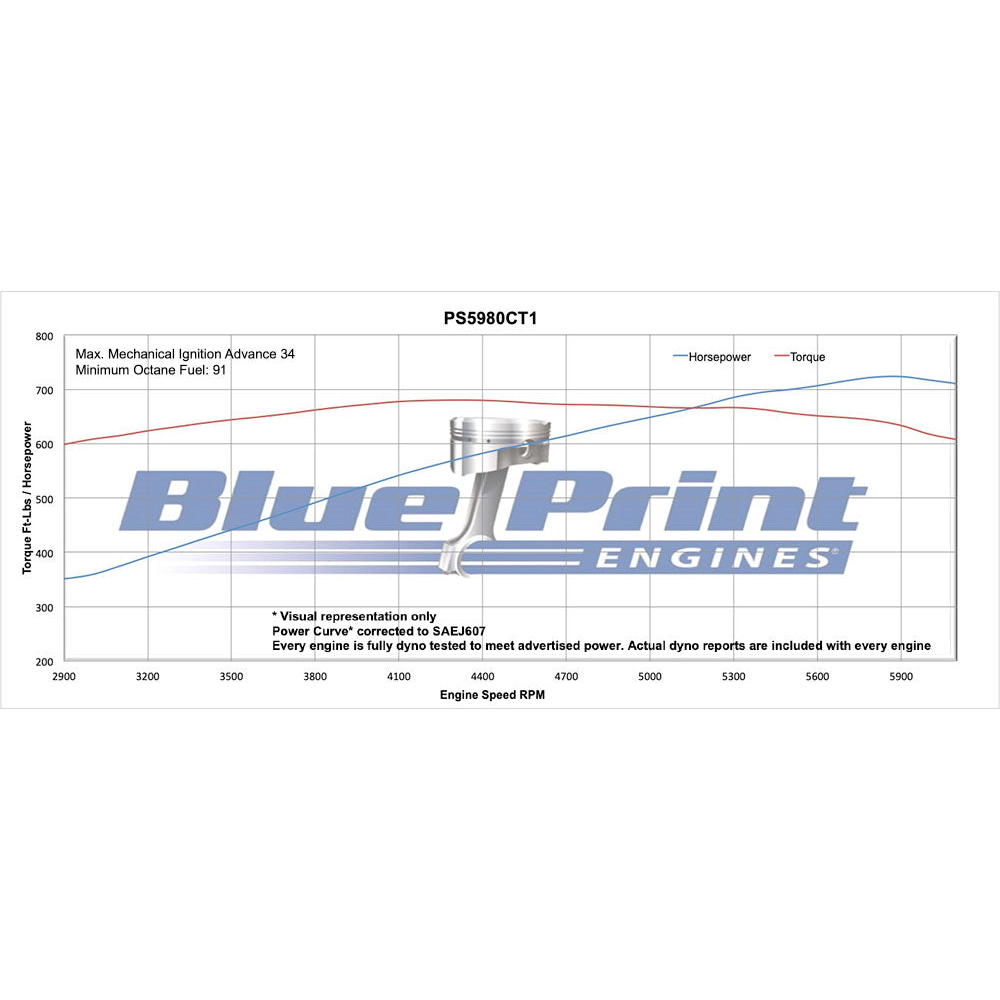

• Dyno test results shipped with engine

Specifications

• UPC: 00887753744487
• Crate Engine Family: Chevy Big Block
• Actual Engine Displacement: 9.8L/598
• Crate Engine Cylinder Head Material: Aluminum
• Engine Block Material: Cast iron
• Advertised Compression Ratio: 10.5:1
• Assembled: Yes
• Engine Balance: Internal
• Cam Style: Hydraulic roller, OE roller
• Rear Main Seal Style: 1-piece
• Intake Manifold Included: No
• Cylinder Heads Included: Yes
• Carburetor Included: No
• Throttle Body Included: No
• Distributor Included: No
• Oil Pan Included: Yes
• Valve Covers Included: Yes
• Timing Cover Included: Yes
• Water Pump Included: No
• Harmonic Balancer Included: Yes
• Flexplate Included: No
• Flywheel Included: No
• Air Cleaner Included: No
• Spark Plugs Included: Yes
• Spark Plug Wires Included: No
• Computer Included: No
• Wiring Harness Included: No
• Supercharger Included: No
• Remanufactured: No
• Quantity: Sold individually.
• Notes: Standard deck height.
