BluePrint PS6320CT Chev BB 632 CI Pro Series Stroker Crate Engine Long 815HP
Item Description

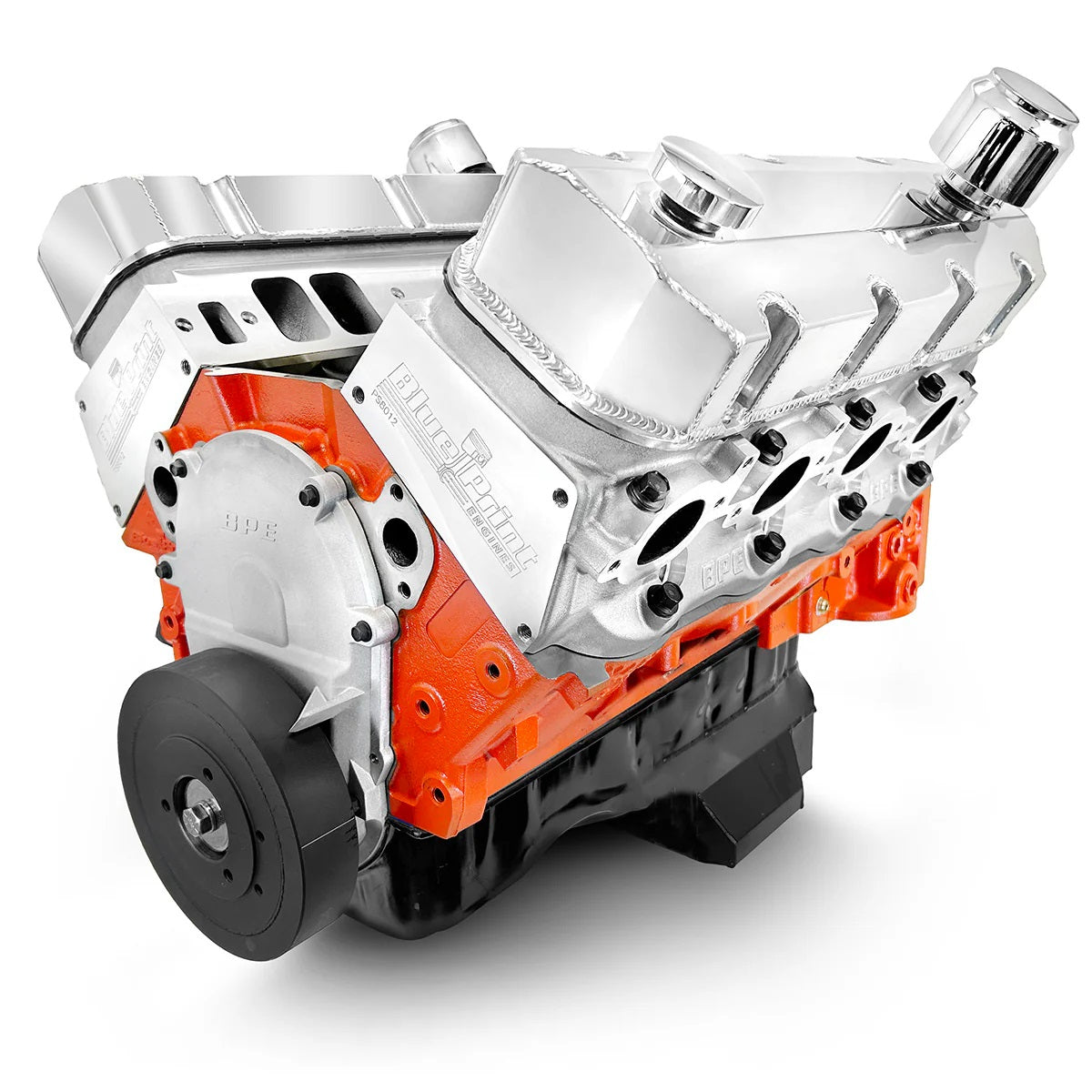

BluePrint Engines Pro Series Chevy 632 C.I.D. 815 HP Base Long Block Crate Engines
Get a firm grip, because BluePrint Pro Series Chevy 632 c.i.d. base long block crate engines run with 815 hp! These engines are the perfect choice for drivable and reliable high-end performance. Additionally, the BluePrint Pro Series Chevy 632 c.i.d. base crate engine assemblies are manufactured under strict tolerances and provide outstanding, consistent results. All of the rotating assemblies are balanced within 2 grams on a computerized balancer. BluePrint Pro Series engines are also dyno-tested and include the dyno sheets. For high-horsepower, big displacement engines, BluePrint Pro Series Chevy 632 c.i.d. base crate engines are the way to go!
Select BluePrint Engines are imported to order via airfreight, with delivery times typically ranging from 1 to 15 days. For an accurate ETA on specific models, please don't hesitate to contact us.
Crate engine features include:
- New BluePrint Gen 6 tall deck block
- Internal balance
- Mechanical fuel pump provision
- 1 piece rear main seal
- 4 bolt mains
- 4.600 inch bore
- Forged crankshaft
- Forged connecting rods
- Forged pistons
- 10.0:1 compression
- Hydraulic roller camshaft
- Lift = 0.647 in. / 0.647 in.
- Duration @ 0.050 in. = 258 / 266 degrees
- Lobe separation = 112 degrees
- Double roller timing chain
- Aluminum cylinder heads
Specifications:
- UPC: 00887753744524
- Crate Engine Family: Chevy Big Block
- Actual Engine Displacement: 10.3L/632
- Crate Engine Cylinder Head Material: Aluminum
- Engine Block Material: Cast iron
- Advertised Compression Ratio: 11.0:1
- Assembled: Yes
- Engine Balance: Internal
- Cam Style: Hydraulic roller, OE roller
- Rear Main Seal Style: 1-piece
- Intake Manifold Included: No
- Cylinder Heads Included: Yes
- Carburetor Included: No
- Throttle Body Included: No
- Distributor Included: No
- Oil Pan Included: Yes
- Valve Covers Included: Yes
- Timing Cover Included: Yes
- Water Pump Included: No
- Harmonic Balancer Included: Yes
- Flexplate Included: No
- Flywheel Included: No
- Air Cleaner Included: No
- Spark Plugs Included: No
- Spark Plug Wires Included: No
- Computer Included: No
- Wiring Harness Included: No
- Supercharger Included: No
- Remanufactured: No
- Quantity: Sold individually.
- Notes: Tall deck engine. Block has a mechanical fuel pump provision. Requires an internal balance flywheel/flexplate. The 1-piece rear main seal small block Chevy flywheel/flexplate will not bolt to this engine. O balance flywheel or flexplate must be used. See the suggested parts tab for the correct flywheel or flexplate to use with this engine.
- Special Attention: It is recommended to use a 1,250 cfm carburetor.
Why Engine Master Australia?
We don’t just sell engines - we build them, run them, and support them.
- We have been building & reconditioning engines since 1988
- Expert engine builders on staff with decades of experience
- Family Owned and Operated - we are all true Automotive Enthusiasts
- Real builds and customers, just check out the customer gallery!
Manufacturer Information
- Manufacturer: BluePrint Engines
- Manufacturer Part Number:
- UPC:
- Colour:
- Additional Information:
- Please Note: Images are for representation only and may differ than the actual product - please contact us if you require an exact photo
