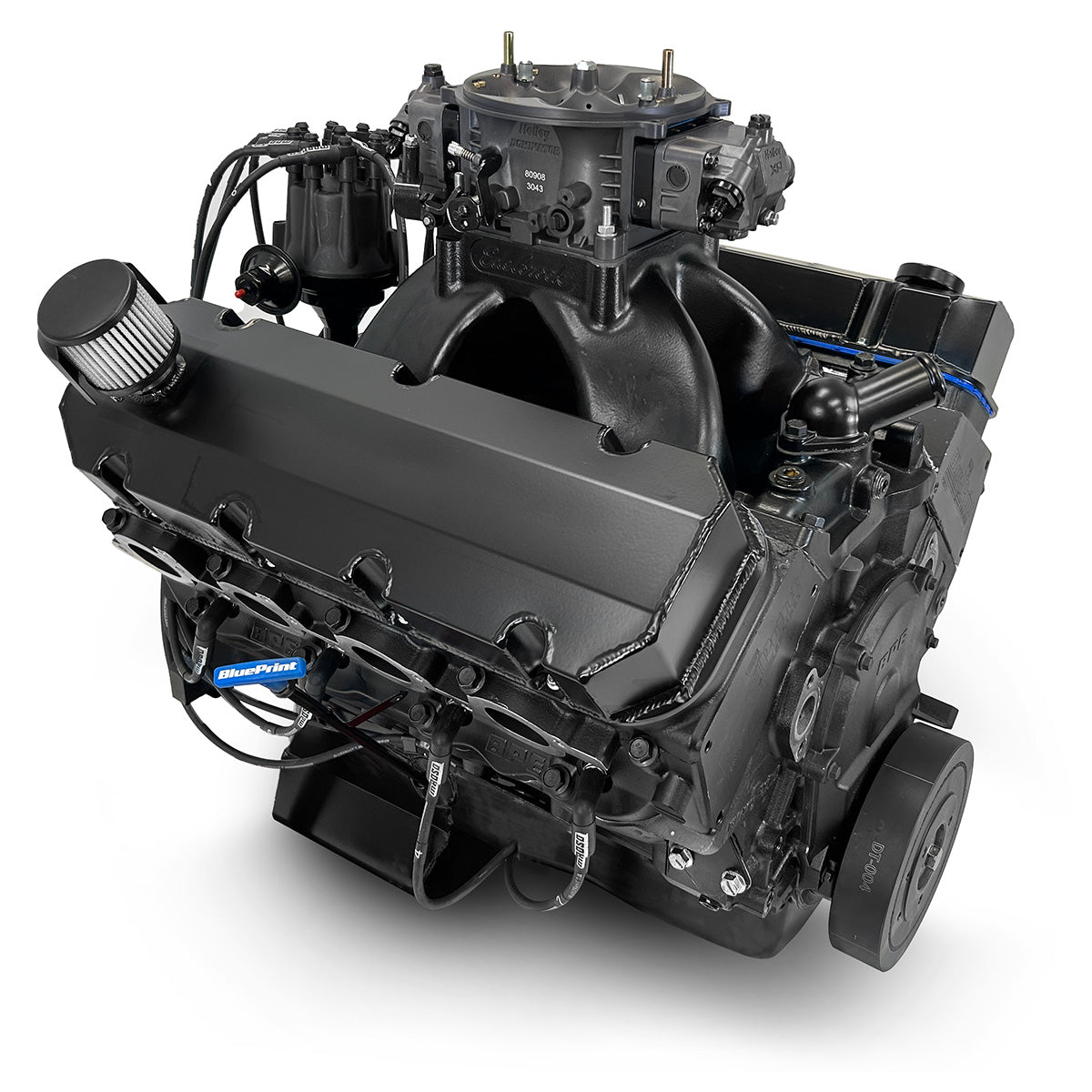

BluePrint PS6320CTCX Chev BB 632 CI Pro Series Stroker Crate Engine Dressed Longblock w/ Carb

BluePrint Motorsports Pro Series Chevy 632 C.I.D. 815 HP Dressed Long Block Crate Engines

BluePrint Pro Series Chevy 632 c.i.d. dressed long block crate engines have it all! You'd better take a firm grip, because these beauties run with 815 hp! The engines are a perfect choice for drivable and reliable high-end performance. Additionally, the Pro Series crate engines are manufactured under strict tolerances to provide outstanding, consistent results. All of the rotating assemblies are balanced within 2 grams on a computerized balancer. The engines are also dyno-tested and include the dyno sheets. For high-horsepower, big displacement engines, BluePrint Pro Series Chevy 632 c.i.d. dressed crate engines are the way to go!

Crate engine features include:

* New BluePrint Gen 6 tall deck block

* Internal balance

* Has a provision for a mechanical fuel pump

* One-piece rear main seal

* 4-bolt mains

* 4.600 in. bore

* Forged 4.750 in. stroke crankshaft

* Forged H-beam connecting rods

* Forged pistons

* 10:1 compression

* Billet distributor

* Hydraulic roller camshaft

- Lift = 0.698 in. / 0.698 in.

- Duration at 0.050 in. = 272 / 282 degrees

- Lobe Separation = 110 degrees

* Double roller timing chain

* Billet distributor

* Aluminum cylinder heads

Specifications

• UPC: 00887753800183
• Crate Engine Family: Chevy Big Block
• Actual Engine Displacement: 10.3L/632
• Crate Engine Cylinder Head Material: Aluminum
• Engine Block Material: Cast iron
• Advertised Compression Ratio: 11.0:1
• Assembled: Yes
• Engine Balance: Internal
• Cam Style: Hydraulic roller, OE roller
• Rear Main Seal Style: 1-piece
• Intake Manifold Included: Yes
• Intake Manifold Style: Carbureted
• Cylinder Heads Included: Yes
• Carburetor Included: No
• Throttle Body Included: Yes
• Distributor Included: Yes
• Oil Pan Included: Yes
• Valve Covers Included: Yes
• Timing Cover Included: Yes
• Water Pump Included: Yes
• Harmonic Balancer Included: Yes
• Flexplate Included: No
• Flywheel Included: No
• Air Cleaner Included: No
• Spark Plugs Included: Yes
• Spark Plug Wires Included: Yes
• Computer Included: Yes
• Wiring Harness Included: Yes
• Water Pump Style: Long
• Stall Speed Rating RPM Range: 3,800-4,200
• Supercharger Included: No
• Remanufactured: No
• Quantity: Sold individually.
• Notes:
  Rated at 815 hp with 740 lbs.-ft. of torque. Throttle body is 1,440 cfm EFI system. Recommended stall converter is 3,800-4,200 RPM and recommended fuel is 91 octane. Not for EGR. This engine features 0.300 in. raised exhaust ports and 0.400 in. deck height increase over factory. Must verify clearance of exhaust, shift linkage, and steering components. Includes black complete front accessory drive system.
• Special Attention:
  Includes a 1,440 cfm Holley Sniper EFI system.
