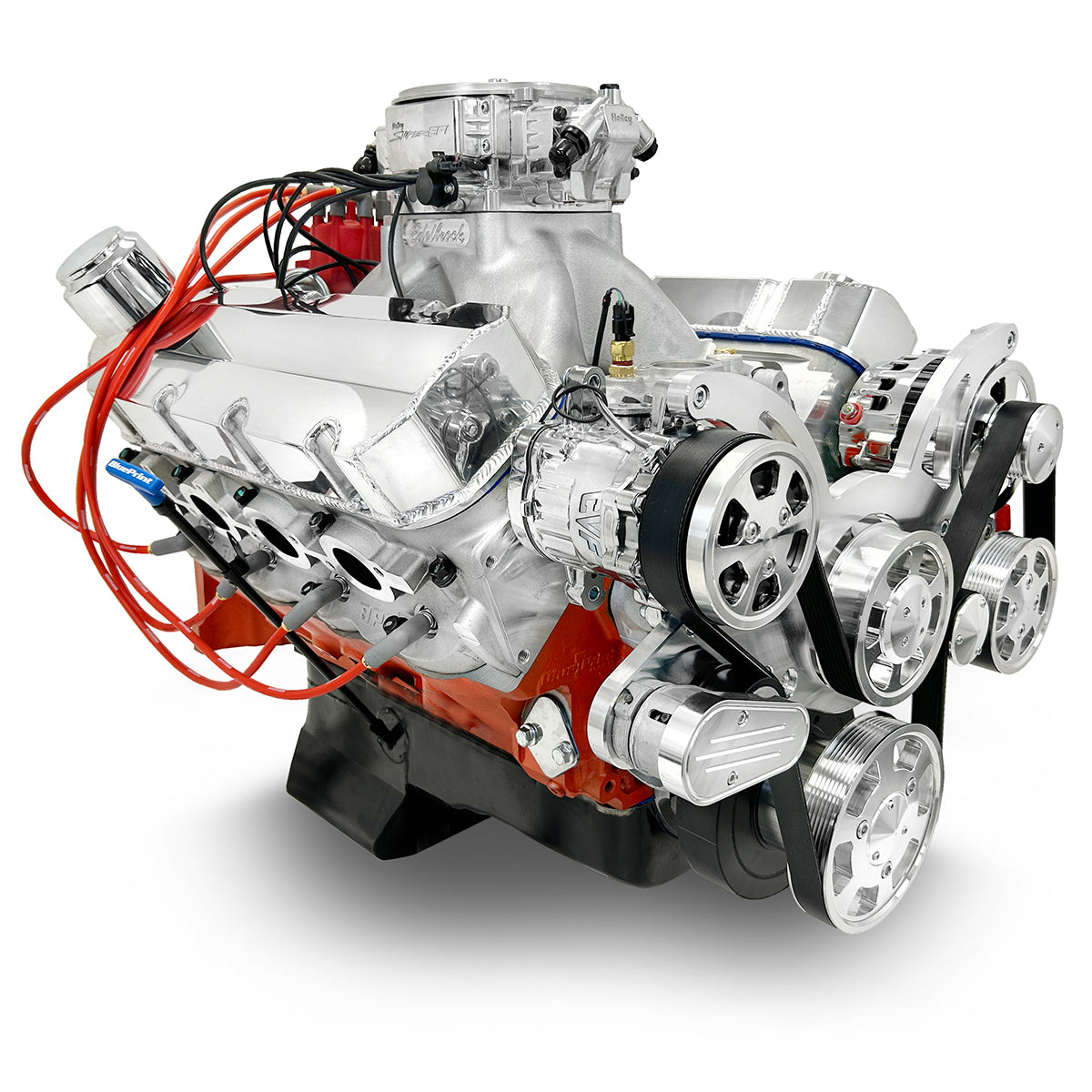

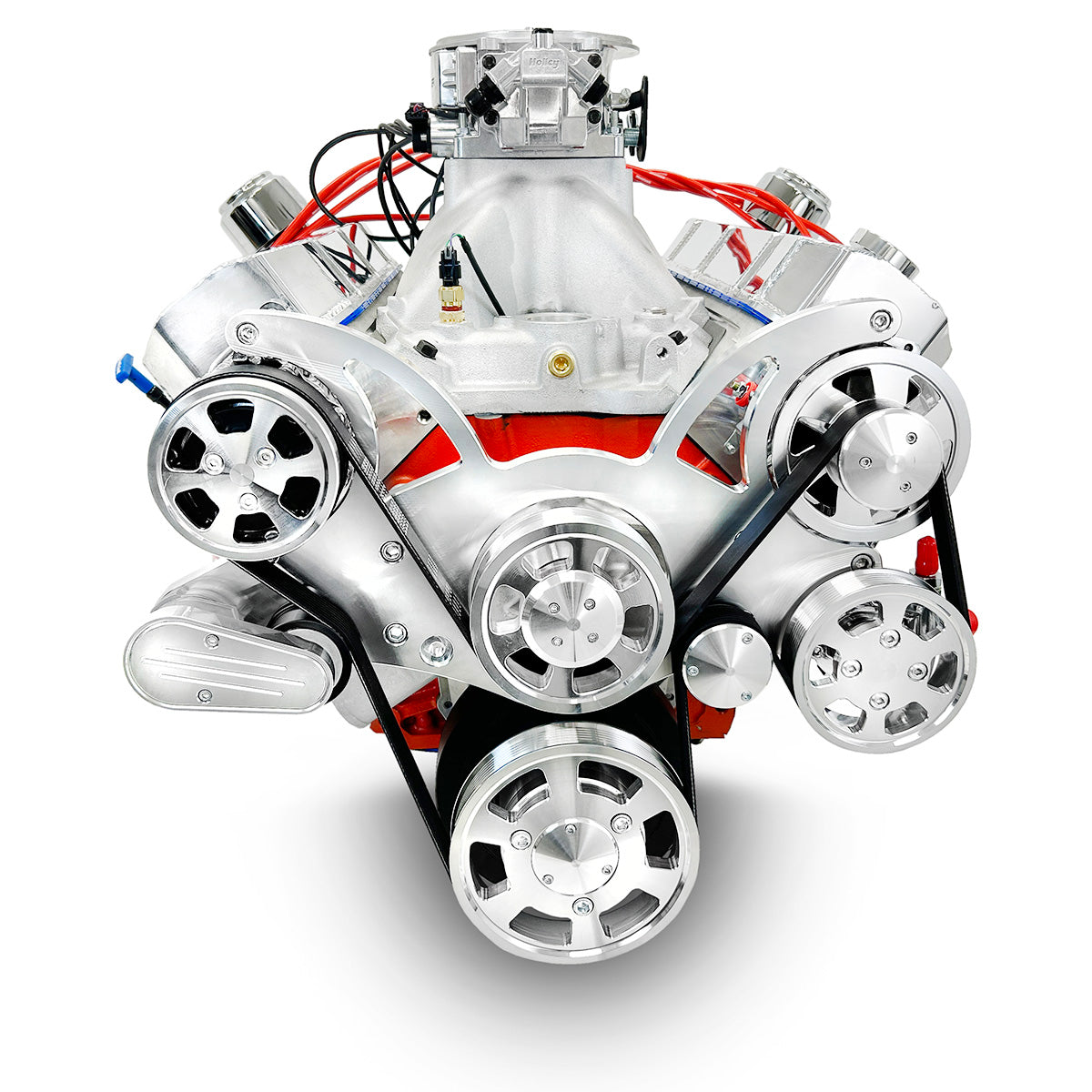

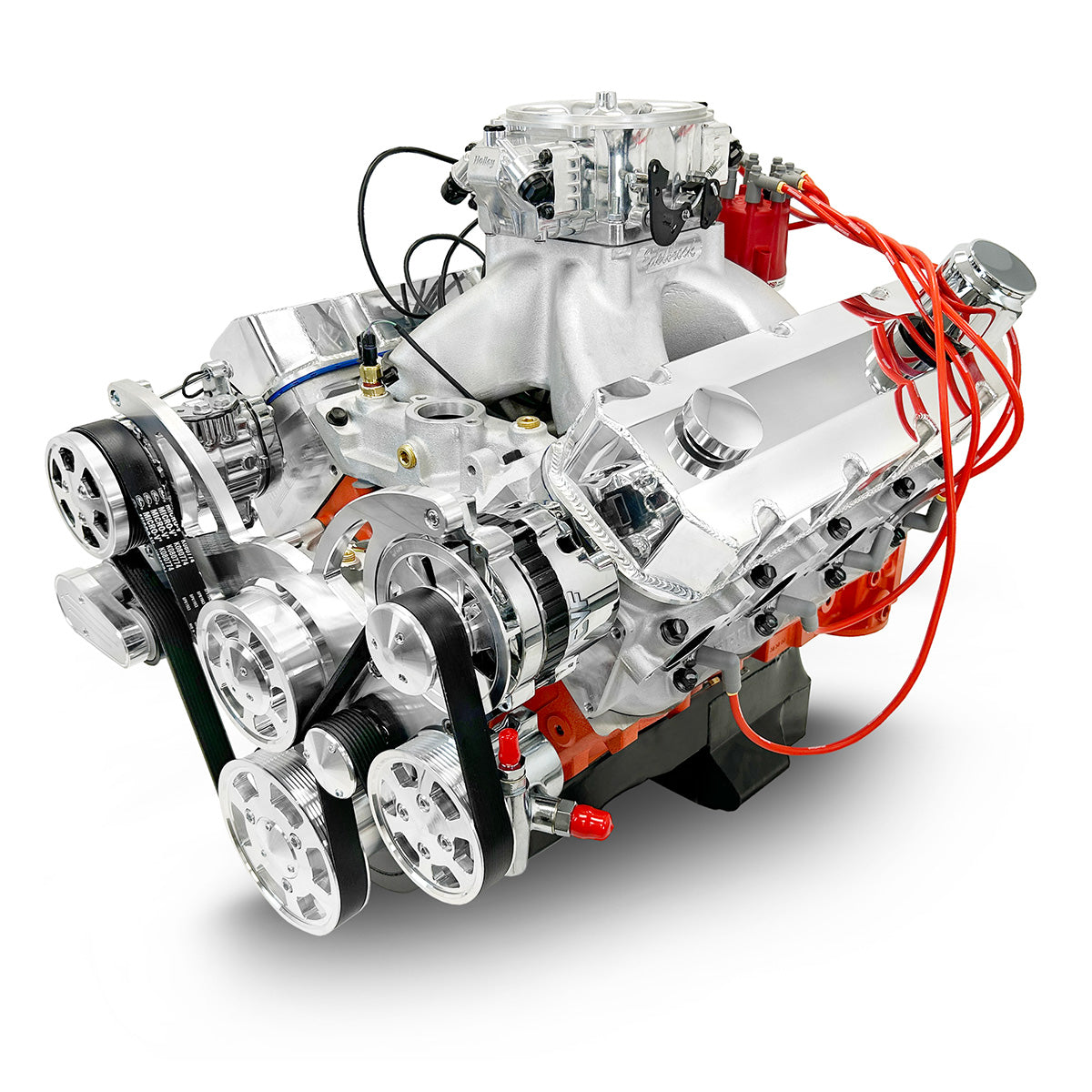

BluePrint PS6320CTFK Chev BB 632 CI Pro Series Stroker Crate Engine Dressed Longblock w/ EFI

BluePrint Motorsports Pro Series Chevy 632 C.I.D. 815 HP Fully Dressed Long Block Crate Engines

Blueprint Pro Series is for those wanting maximum horsepower and durability.

BluePrint Engines Pro Series Chevy 632 c.i.d. 815 hp fully dressed long block crate engines offer any custom builder, hot rodder, or kit car builder an engine that's been fully dyno tested, passed vigorous inspections, and is ready to power up your project.

Blueprint's Pro Series 632 Stroker GM-style drop-in ready engines are dressed with aluminum heads, forged pistons, forged crankshaft, a hydraulic roller cam, and complete front accessory drive system with a polished or black finish (your choice).

Additional features:

* Tall deck with 4-bolt main (approximately .400 taller/wider than OEM block)

* Forged H-beam connecting rods

* Cylinder head specs:

-- 119cc chamber

-- 2.30 in. intake / 1.88 in. exhaust valves

-- 358cc intake / 125cc exhaust runners

* Camshaft specs:

-- .698 intake / .698 exhaust

-- 272 intake / 282 exhaust duration

-- at .050 - 110-degree lobe separation

* Installed accessory drive with A/C, P/S, alternator, water pump, belts, and pulleys

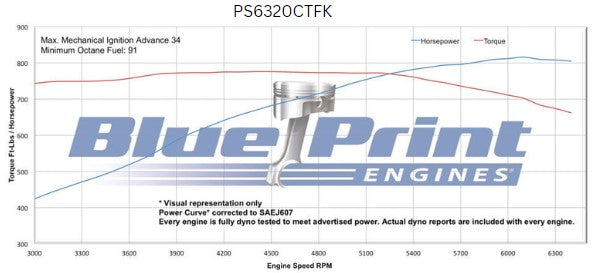

* Dyno test results shipped with engine

Specifications:

• UPC: 00887753800176
• Crate Engine Family: Chevy Big Block
• Actual Engine Displacement: 10.3L/632
• Crate Engine Cylinder Head Material: Aluminum
• Engine Block Material: Cast iron
• Advertised Compression Ratio: 11.0:1
• Assembled: Yes
• Engine Balance: Internal
• Cam Style: Hydraulic roller, OE roller
• Rear Main Seal Style: 1-piece
• Intake Manifold Included: Yes
• Intake Manifold Style: Carbureted
• Cylinder Heads Included: Yes
• Carburetor Included: No
• Throttle Body Included: Yes
• Distributor Included: Yes
• Oil Pan Included: Yes
• Valve Covers Included: Yes
• Timing Cover Included: Yes
• Water Pump Included: Yes
• Harmonic Balancer Included: Yes
• Flexplate Included: No
• Flywheel Included: No
• Air Cleaner Included: No
• Spark Plugs Included: Yes
• Spark Plug Wires Included: Yes
• Computer Included: Yes
• Wiring Harness Included: Yes
• Water Pump Style: Long
• Stall Speed Rating RPM Range: 3,800-4,200
• Supercharger Included: No
• Remanufactured: No
• Quantity: Sold individually.
• Notes:
  Tall deck engine has 4-bolt mains. Cylinder heads feature a 0.300 in. raised exhaust port versus an OEM casting. Includes a throttle body style 4500-flange EFI and a polished front accessory drive system.
• Special Attention:
  Includes a 1,440 cfm Holley Sniper EFI system.
