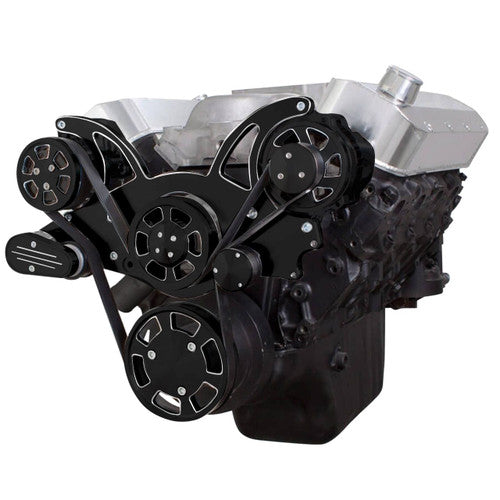

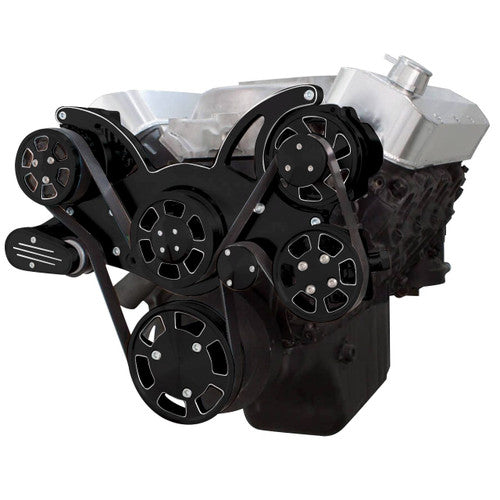

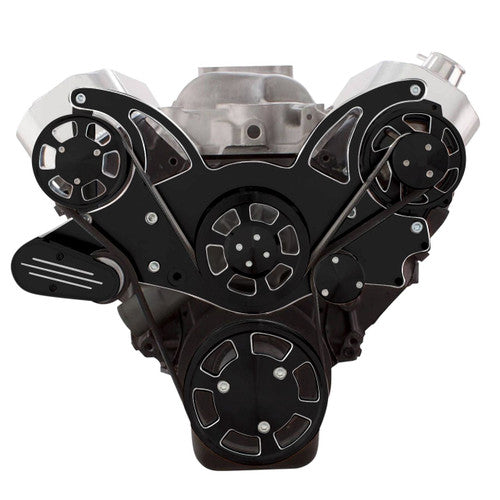

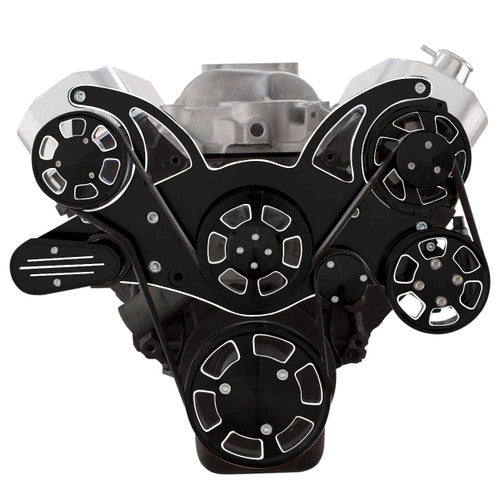

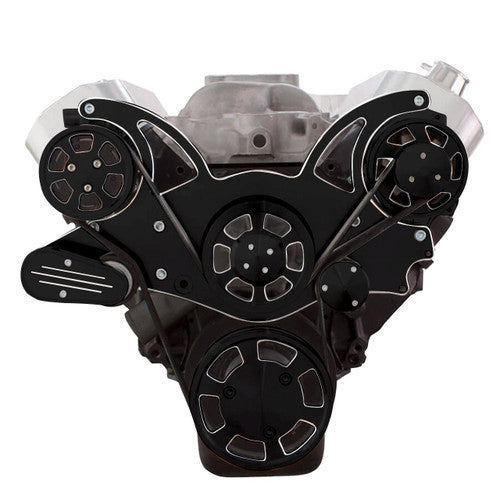

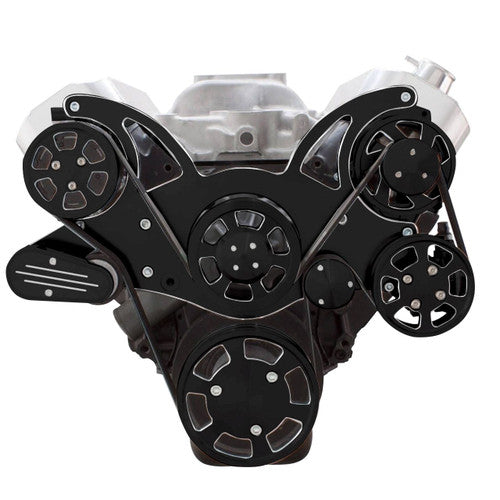

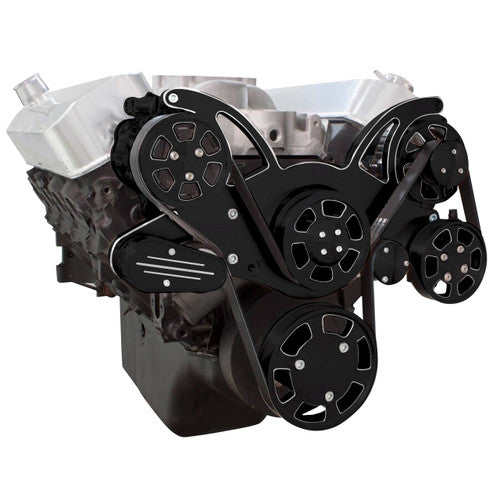

CVF BD-454-WRAPTOR-AC Black Diamond Serpentine System for Big Block Chevy - AC Power Steering & Alternator - All Inclusive

CVF BD-454-WRAPTOR-AC Black Diamond Serpentine System for Big Block Chevy - AC Power Steering & Alternator - All Inclusive

CVF-BD-454-WRAPTOR-AC
$3,996.10 AUD
$3,996.10 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

This product has a 10 day handling time

Black Diamond Big Block Chevy 396, 427 and 454 Serpentine Conversion Kit
Air Conditioning, Power Steering and Alternator

All Inclusive WRAPTORTM 8 Track Serpentine System for Chevy Big Block engines with 140 Amp alternator, GM Type II Power Steering Pump and Peanut Style AC compressor. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slippage compared to traditional 6 Rib designs. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump.

All Inclusive Kit Includes:
  • High Flow Aluminum Water Pump - Black Powder Coated
  • 140 Amp Black Powder Coated 1-Wire CS130 Alternator
  • Black Powder Coated AC Compressor
  • AC Compressor Clutch Cover - Black Bright Dip Anodized Aluminum
  • Chrome Plated Aluminum GM Type II Power Steering Pump
  • Remote Mount Reservoir with Bracket - Black Bright Dip Anodized Aluminum
  • Gates Premium Green Strip 8 Rib Belt
  • Water Pump Pulley & Cover - Black Bright Dip Anodized Aluminum
  • Crank Pulley - Black Bright Dip Anodized Aluminum
  • Crank Pulley Spacer - Billet Aluminum
  • Alternator Pulley & Cover - Black Bright Dip Anodized Aluminum
  • Power Steering Pulley - Black Bright Dip Anodized Aluminum
  • One Piece Billet Aluminum Bracket - Black Bright Dip Anodized Aluminum
  • Universal Alternator Fan - Black Bright Dip Anodized Aluminum
Application Notes:
  • Works with either Mechanical or Electric fuel Pump
  • Works with either Mechanical or Electric fan (may require long fan spacer)
  • Works with either Standard or Tall Deck Engines
  • Power Steering Lines from pump to reservoir not included
  • Compatible with Hydroboost ($275 option)
If ordering without accessories, please contact us before ordering and see the requirements below:
  • Alternator - GM CS130 Style Alternator with 6-12 O'clock mounting and 6.6" bolt spacing
  • Power Steering Pump - GM Type II Pump
  • Compressor - Peanut Style (7B10) Compressor with 8 Rib Clutch
  • Water Pump - 5.7" Tall, Reverse Rotation, 5/8" Pilot and Lower Radiator Hose on Driver Side


8 Rib Serpentine Pulleys CNC Machined from 6061-T6 Billet Aluminum Gates Spring Loaded Tensioner CNC Machined in USA All Hardware Included
