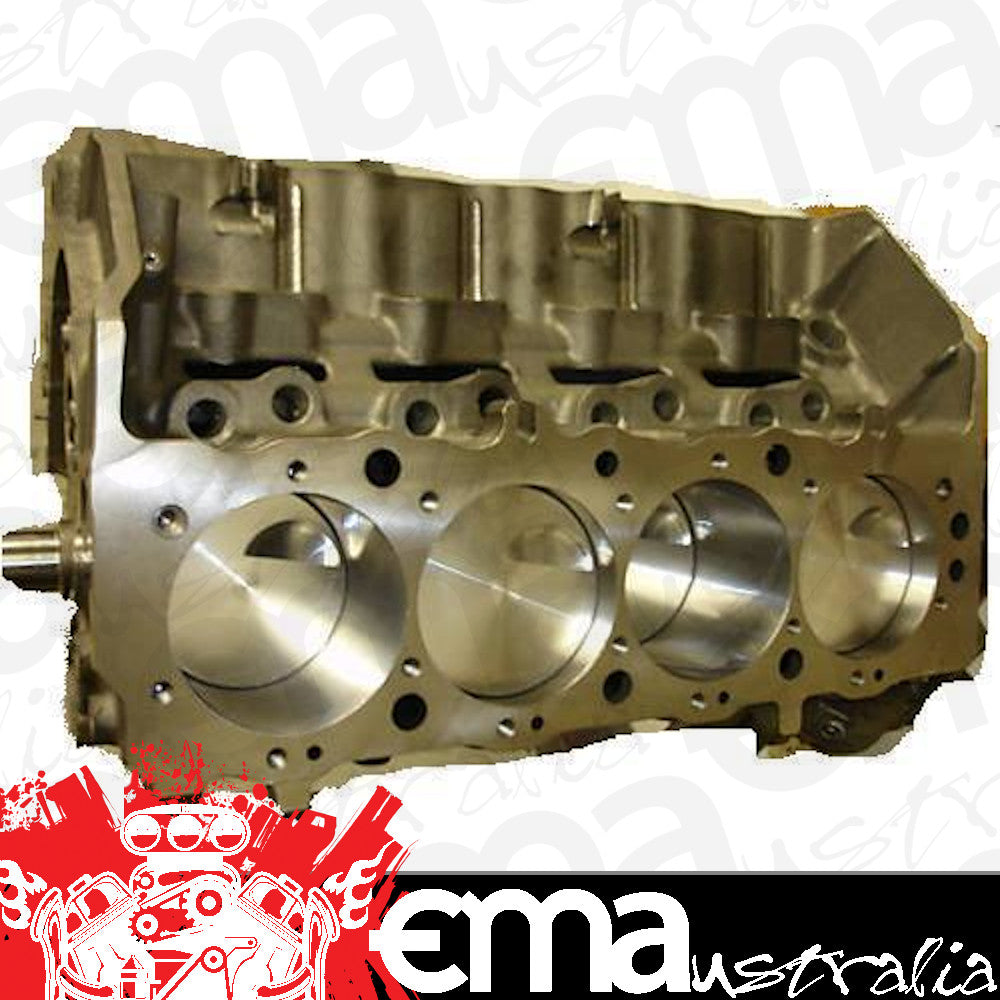

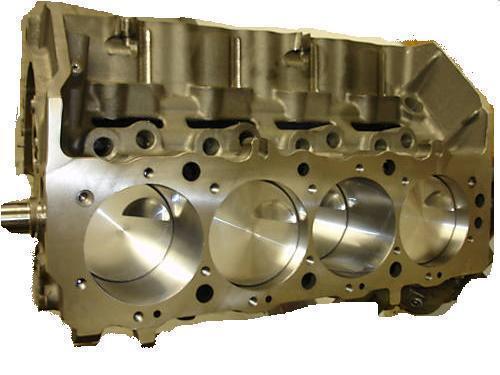

DART DA03226322 Chev Big Block 632 Short Motor

This listing is for a fully assembled and internally balanced 632 Cubic Inch short assembly with cam bearings installed. Based on a Dart Big M tall deck block it is factory finished, machined and assembled with quality parts in darts machine shop. This assembly should allow a customer to complete a build without any further need for machine shop services. This assembly includes the following: Block, Pistons, Rings, Cam and Crank Bearings, Conrods and crankshaft.

The Brands Behind The power!

Dart

The foundation for a better big block, Dart Big M!

The Dart Big M Chevy big block is a no-compromise design that solves the problems that have plagued big blocks for years. They feature an improved oiling system, extra-thick cylinder walls, 4-bolt mains, and scalloped water jackets for improved coolant flow. This is the ideal foundation for this short assembly.

Eagle

Eagle rods, Not just another rod!

Free your engine's horsepower on the wings of Eagle H-beam connecting rods. Their 2-piece, forged, vacuum-degassed, 4340-certified steel construction provides outstanding strength, while still weighing much less than stock rods. Each rod is multi-stage heat-treated, x-rayed, sonic-tested, magnafluxed, 100 percent machined, and shot-peened to stress-relieve the metal. The rods have precision cap alignment sleeves to positively locate each rod cap. They come standard with 190,000 psi rated ARP 8740 and 230,000 psi rated ARP 2000 rod bolts.

Cranks you can rely on and afford.

Eagle cast steel crankshafts for Chevy feature .092 radii on the rod, main journals, rear seal, and snout for increased strength. Each of these cranks is inspected for dimension, size, and stroke accuracy, has a journal finish of 6 R.A. or less, and has a target bob weight of +/- 2 percent for reduced balancing time.

JE Performance

With over 60 years of experience, JE Pistons is the leader in high performance forged pistons. They have built a reputation that the competition can only follow. JE has a history of manufacturing the highest quality pistons and components that professional engine builders, race teams, and high performance enthusiasts trust and rely on.

• Assembly Type: Chevrolet Big Block, Short
• Displacemen 632 Cubic Inch
• Block: Dart Big M
• Pistons: JE Forged, Flat Top
• Piston Size: 4.600"
• Rings: Hastings
• Connecting Rods: Eagle H Beam
• Rod Length: 6.700"
• Crankshaft Eagle, Steel
• Stroke: 4.750"
• Compression ratio: 11.5:1 @118cc
• Warranty: 12 months
• Note: 13:1 and 15:1 compression ratios available EX. Dart USA, please allow 6 weeks for overseas delivery.
