DART DA11811143P Pro 1 Alloy Cylinder Heads 230Cc/72cc Chev 327-400 Cid 1 (pair) Dar11811143P

DART DA11811143P Pro 1 Alloy Cylinder Heads 230Cc/72cc Chev 327-400 Cid 1 (pair) Dar11811143P

DA11811143P
$3,341.90 AUD
$3,341.90 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

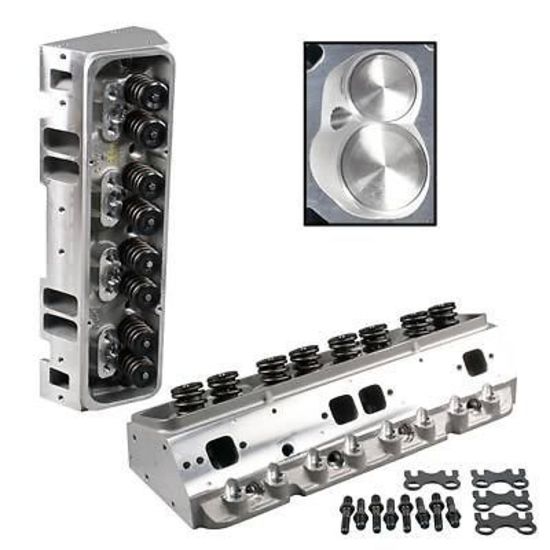

DART PRO 1 ALLOY CYLINDER HEADS 230CC/72CC CHEV 327-400 CID 1 PAIR DAR11811143P
The redesigned chamber features improved fuel distribution , spark plugs are located high and as close to the center of the chamber as possible and five angle intake seats shear the liquid fuel and air as it enters the chamber. The intake face, exhaust face and exhaust ports have been redesigned, valve guide bosses are profiled and casting walls are cleaner and more consistent, resulting in greater control over flow, heat and combustion. Multiple intake sizes are available to suit engines from mild street to big-inch full competition.



Application: Chev Small Block Gen I 327/350/400 C.I.D
Cylinder Head Style: Assembled
Cylinder Head Material: Aluminum
Cylinder Head Finish: Natural
Combustion Chamber Volume (cc): 72
CNC-Machined Combustion Chamber: No
Intake Runner Volume (cc): 230cc
Exhaust Runner Volume (cc): 75cc
CNC-Machined Intake Runner: No
CNC-Machined Exhaust Runner: No
Combustion Chamber Style: Heart
Intake Port Location: Standard
Exhaust Port Shape: Square
Exhaust Port Location: Standard
Spark Plug Style: Angle
Intake Valves Included: Yes
Intake Valve Diameter (in): 2.080 in.
Exhaust Valves Included: Yes
Exhaust Valve Diameter (in): 1.600 in.
Valve Springs Included: Yes
Maximum Valve Lift (in): 0.690 in.
Outside Diameter of Outer Spring (in): 1.550 in.
Damper Spring Included: Yes
Number of Springs Per Valve: Dual
Retainers Included: Yes
Retainer Material: Steel
Locks Included: Yes
Lock Style: 10 degree
Valve Stem Seals Included: Yes
Valve Stem Seal Style: Positive stop
Rocker Arm Studs Included: Yes
Rocker Arm Nut Thread Size: 3/8-24 in.
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: Yes
Guideplate Pushrod Size: 5/16 in.
Valve Cover Mounting Style: Center and perimeter bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 24
Exhaust Valve Angle: 15
Valve Guides Included: Yes
Valve Guide Material: Manganese bronze
Valve Seats Machined: Yes
Valve Seat Machine Style: 4-angle intake/3-angle exhaust
Valve Seat Material: Ductile iron
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: No
Quantity: Sold as a pair.

Manufacturer Part Number:
