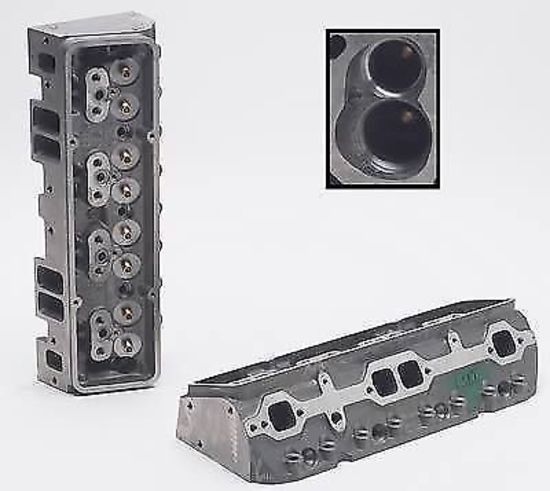

DART DACH10110010 180cc Iron Eagle Cast Iron Bare Cylinder Heads Chev SB Ch10110010

Item Description

DART 180CC IRON EAGLE CAST IRON BARE CYLINDER HEADS CHEV SB CH10110010Are there such things as cast iron performance heads? You bet! These Dart Iron Eagle heads will give you the performance you want at a great price. They feature thick port walls (extra meat for porting!), enlarged water passages, multi-angle intake valve seats, hardened and radiused exhaust valve seats, bronze valve guides, and heart-shaped 64cc or 72cc combustion chambers. They're available as bare castings or fully assembled with stainless steel valves, valve springs, locks, and retainers.Specs:Application: Chev Small Block Gen1 283-400 C.I.D. Cylinder Head Style: Bare
Cylinder Head Material: Cast iron
Cylinder Head Finish: Natural
Combustion Chamber Volume (cc): 64
CNC-Machined Combustion Chamber: No
Intake Runner Volume (cc): 180cc
Exhaust Runner Volume (cc): 77cc
CNC-Machined Intake Runner: No
CNC-Machined Exhaust Runner: No
Combustion Chamber Style: Heart
Intake Port Shape: Rectangular
Intake Port Location: Standard
Exhaust Port Shape: Square
Exhaust Port Location: Standard
Spark Plug Style: Angle
Intake Valves Included: No
Intake Valve Diameter (in): 2.020 in.
Exhaust Valves Included: No
Exhaust Valve Diameter (in): 1.600 in.
Valve Springs Included: No
Damper Spring Included: No
Retainers Included: No
Locks Included: No
Valve Stem Seals Included: No
Rocker Arm Studs Included: No
Rocker Arms Included: No
Rocker Arm Nuts Included: No
Guideplates Included: No
Valve Cover Mounting Style: Center and perimeter bolt
Accessory Bolt Holes Drilled: Yes
Intake Valve Angle: 23
Exhaust Valve Angle: 23
Valve Guides Included: Yes
Valve Guide Material: Manganese bronze intake/Phosphorous bronze exhaust
Valve Seats Machined: Yes
Valve Seat Machine Style: 4-angle intake/3-angle exhaust
Valve Seat Material: Ductile iron
Steam Holes Drilled: No
Oiling Style: Through pushrod
Machined for O-Ring: No
Heat Crossover: Yes
Quantity: Sold as a pair.
