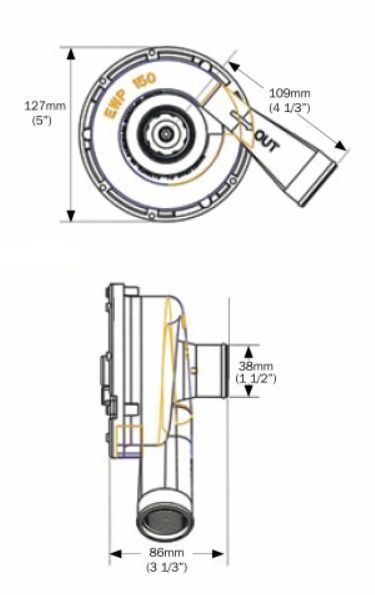

The EWP150 Alloy Electric Water Pump - univresal fit, do-it-yourself, easy to install water pump designed to replace or compliment your existing belt-driven mechanical water pump. By removing the parasitic power losses of a belt-driven water pump the EWP can provide up to 10kW of extra power, increased torque, increased cooling capacity, eliminating heat soak and provide better engine temperature control.
The major benefits a EWP150 offers are:
• Minimise the parasitic power losses running a mechanical water pump at high speed when not needed
• Maximise engine warm-up & minimise the effects of heat soak by operating the EWP®150 after engine shut down.
The EWP®150 has the advantage of offering more consistent coolant flow independent of the engine revs. The fitment of the EWP® & Fan Digital Controller to your engine, which is scientifically calibrated to manage the volume/flow of engine coolant with the corresponding increase in coolant temperature within the engine's cooling system.
From start-up, the EWP® & Fan Digital Controller will 'system check' the EWP®150 and Thermatic Fan operating the pump and fan for approx. 10 seconds. Low engine temperature, low flow (10-on - 30-off pwm) reduces engine warm-up time, arriving at your targeted/set temperature quicker, assisting control the engine temperature within your -5 to +3 degree targeted/set temperature range. The Electric Thermatic Fan/s will be deployed at +3â—¦C above targeted/set temp if slower travel (traffic) or engine idle conditions continue. The EWP® & Fan Digital Controller will continue operating after a hot engine shut down for a approx. 2 minute period to help prevent damaging heat soak.

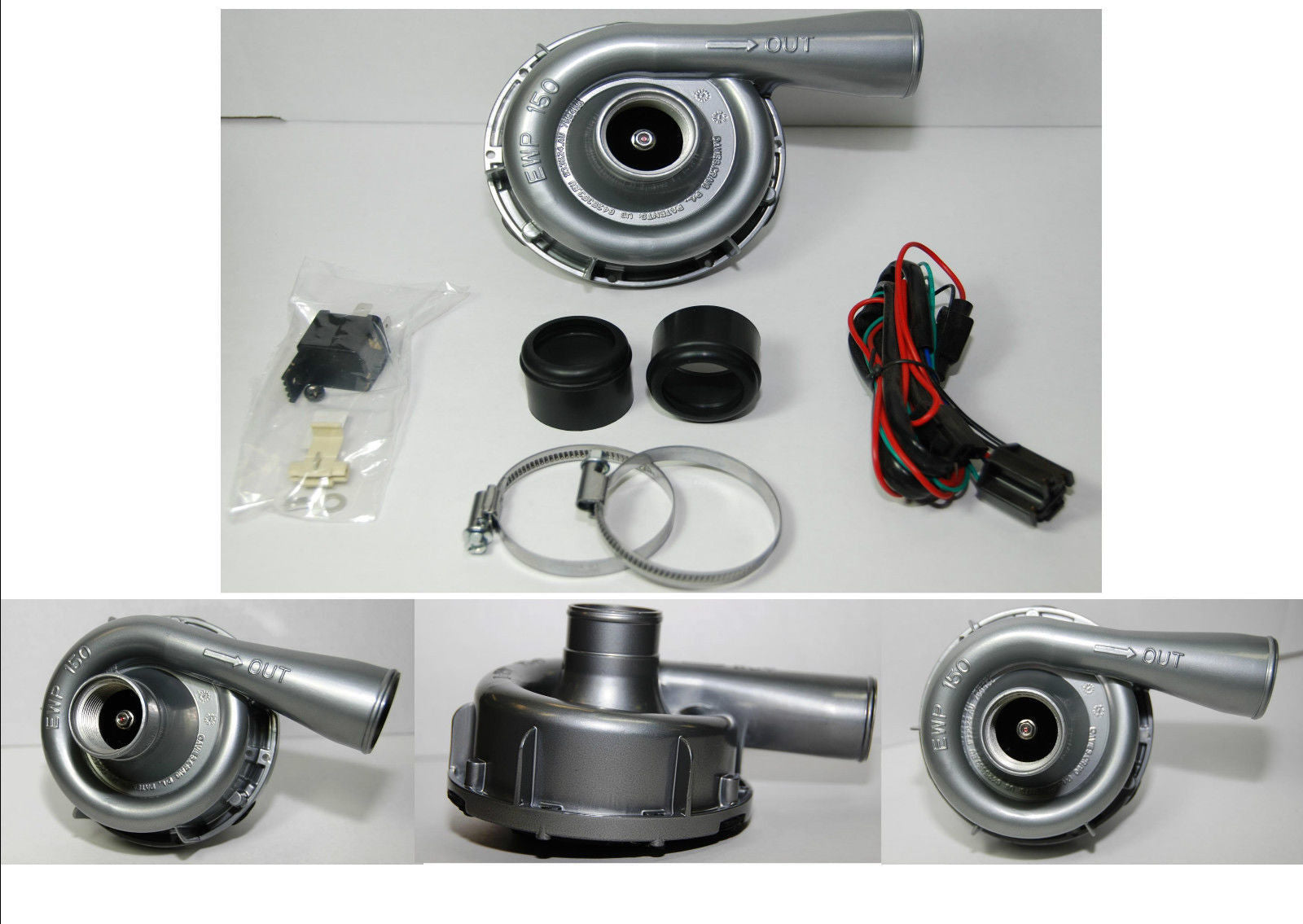

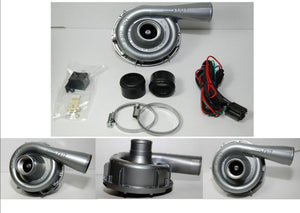

Kit Contents:
EWP150 Alloy Pump Assembly
Wiring Harness with 10A Fuse
Rubber Sleeves 3mm
Hose Clamps
Hardware Bag inc. Relay, Scotch Lock, Ring Terminal, Self Tapper
