Diamond Pistons

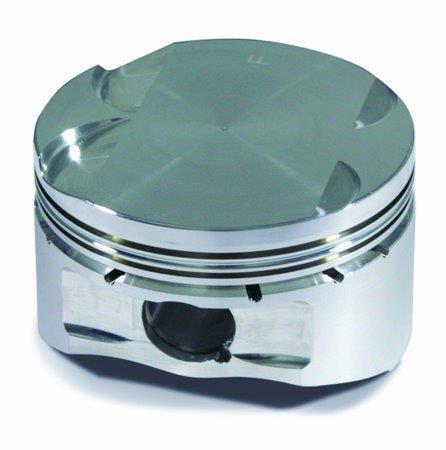

Diamond Pistons D30109-8 Ford 5.0 Coyote 3.640 B +1.8Cc

Diamond Pistons D30109-8 Ford 5.0 Coyote 3.640 B +1.8Cc

D30109-8
$2,561.80 AUD
$2,561.80 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

Piston Specifications:

  • Block: 5.0L Coyote
  • Bore: 3.640
  • Stroke: 3.650
  • Rod: 5.933
  • Comp Heigh: 1.169"
  • Weight: 378
  • Pin: .866 x 2.500"
  • CC's: Dome Top 1.8
  • Comp Ratio With 57cc Head: 10.6
  • Ring Set: 09053640

Piston Features:

  • Designed to be used with 2011-17 5.0L Coyote cylinder heads
  • 3D milling on piston crowns for ready to install finish
  • Offset pins for quiet operation
  • Top ring down dimension: .300"
  • Ratios figured for .040 head gasket @ 8.937 Deck
  • Premium 1.5mm x 1.5mm x 3.0mm ring package
  • Premium 8620 .155W wrist pins included
  • Oversized valve pockets - for larger than stock valve sizes
  • Valve pocket depth: 0.075" intake and 0.075" exhaust
  • Made from 2618 alloy


Manufacturer Part Number:
