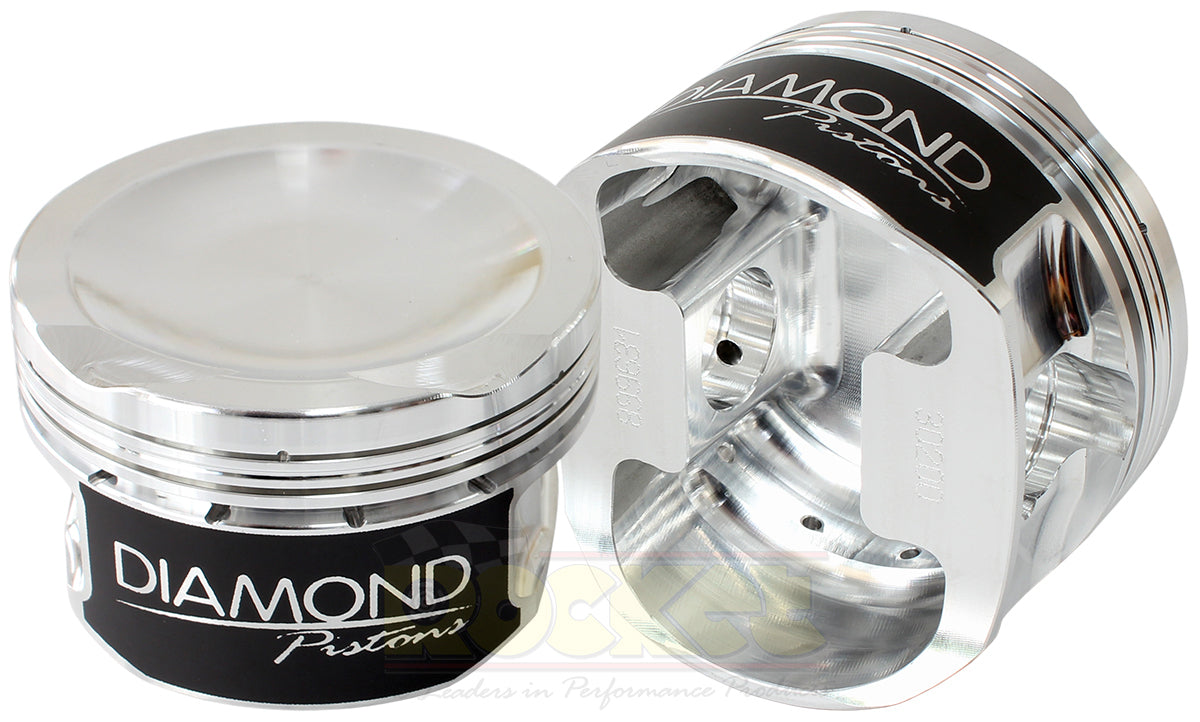

Diamond Pistons D30203-6 Ford Xr6 Turbo 3.632" Bor -9Cc

1 2

Diamond Pistons

D30203-6
$1,991.35 AUD
$1,991.35 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

Diamond Pistons D30203-6 Ford Xr6 Turbo 3.632" Bor -9Cc

Item Description

Piston Specifications:

  • Block: Ford Barra 4.0L Turbo
  • Bore: 3.632
  • Stroke: 3.910
  • Rod: 6.058
  • Comp Heigh: 1.215"
  • Weight: N/A
  • Pin: .866 x 2.500"
  • CC's: Dish Top -9.0
  • Comp Ratio With 70cc Head: 9.0
  • Ring Set: 09533632

Piston Features:

  • 3D milling on piston crowns for ready to install finish
  • Offset pins for quiet operation
  • Moly skirt coating for friction loss and skirt wear protection
  • Side gas ports for better ring seal
  • Ratios figured for 94mm x .040 head gasket @ 9.228 Deck Height
  • Top ring down dimension: .280"
  • Premium 8620 .180W wrist pins chamfered for roundwire locks included
  • Premium 1.0mm x 1.2mm x 2.8mm ring package included
  • Oversized valve pockets - for larger than stock valve sizes
  • Valve pocket depth: 0.122" intake and 0.000" exhaust
  • 2618 material for High HP/Boost applications


Manufacturer Information

  • Manufacturer: Diamond Pistons
  • Manufacturer Part Number:
  • UPC:
  • Colour:
  • Additional Information:
  • Please Note: Images are for representation only and may differ than the actual product - please contact us if you require an exact photo
