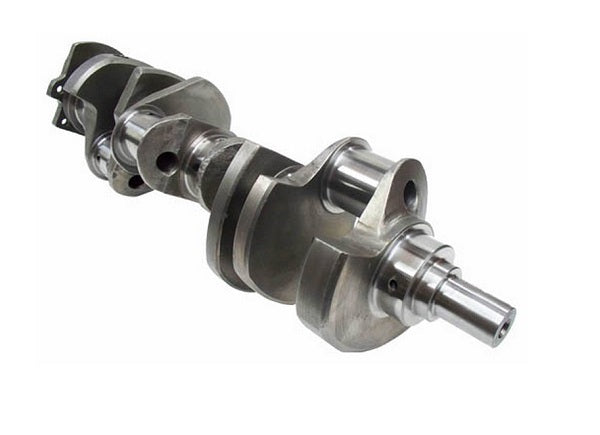

SB Chev 305 & 350 Cast Steel Crankshaft 3.750 Stroke 5.700 Rod External Balance
Product Information
The Eagle "ESP" Cast Steel Cranks are 100% new pieces at an affordable price. They feature standard size rod and main journals with a journal finish of 6 R.A. or less. Also featured is an .092" radius on the rod journals, main journals, rear seal and snout for increased strength while still allowing the use of inexpensive OE bearings (Ford 302 & 460 have .125" radii and require chamfered bearings). Each "ESP" crankshaft is inspected for dimension, size and stroke accuracy so you know it is capable of going from the box to your block without worries. Eagle also guarantees a target bobweight +/-2% that reduces balancing time.
Crank Specification
Stroke: 3.750"
Rod Length: 5.700"
Main Journal: SB 350 Chev 2.449"
Rod Journal: SB Chev 2.100" Balance: External
Maximum HP: 500
Main Seal: 2 Piece
