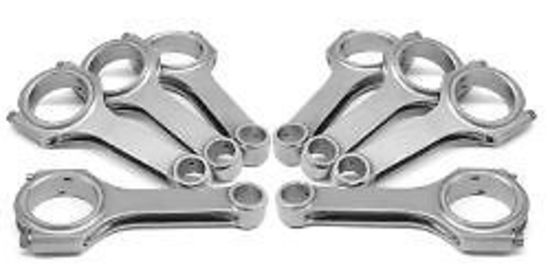

Eagle EACRS6200O3D Forged H-Beam Conrods 6.200" Length 2.1" Journal Chev LS V8

1 2

Eagle Specialty Products

EACRS6200O3D
$713.15 AUD
$713.15 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

Eagle EACRS6200O3D Forged H-Beam Conrods 6.200" Length 2.1" Journal Chev LS V8

Item Description

EAGLE FORGED H-BEAM CONRODS 6.200" LENGTH 2.1" JOURNAL CHEV LS V8 EACRS6200O3D
Free your engine's horsepower on the wings of Eagle H-beam connecting rods. Their 2-piece, forged, vacuum-degassed, 4340-certified steel construction provides outstanding strength, while still weighing much less than stock rods. Each rod is multi-stage heat-treated, X-rayed, sonic-tested, magnafluxed, 100 percent machined, and then shot-peened to stress-relieve the metal. The rods have precision cap alignment sleeves to positively locate each rod cap, silicon bronze bushings for floating pin models, and are available in stroker models that allow additional cam-to-rod clearance for large stroke combinations. They come standard with 190,000 psi rated ARP 8740 and 230,000 psi rated ARP 2000 rod bolts, or 265,000 psi rated ARP L-19 bolts as upgrades. Instructions and rod bolt lubrication are included.
Specs:
Application: Chev/Holden LS Series V8 (See notes)
Connecting Rod Length Center to Center (in):6.200 in.
Connecting Rod Beam Style:H-beam
Connecting Rod Material:Forged 4340 steel
Connecting Rod Finish:Shot-peened
Wrist Pin Style:Floating
Clearanced for Stroker:No
Cap Retention Style:Cap screw
Connecting Rod Bolt Brand:ARP
Connecting Rod Bolt Diameter:7/16 in.
Connecting Rod Bolt Material:8740 chromoly steel
Fastener Yield Strength (psi):160,000 psi
Connecting Rod Bolt Head Style:12-point
Approximate Connecting Rod Weight (g):650
Rod Journal Diameter (in):2.100 in.
Big End Bore Diameter (in):2.2250 in.
Pin End Bore Diameter:0.927 in.
Big End Width (in):0.940 in.
Pin End Width (in):1.060 in.
Advertised Horsepower Rating (hp):700 hp
Weight Matched SeYes
Remanufactured:No
Magnafluxed:Yes
Quantity:Sold as a set of 8.
Notes:Custom pistons required when using connecting rods with custom wrist pin diameter and longer than stock length.
Please email with suburb and postcode for a shipping quote.


Manufacturer Information

  • Manufacturer: Eagle Specialty Products
  • Manufacturer Part Number:
  • UPC:
  • Colour:
  • Additional Information:
  • Please Note: Images are for representation only and may differ than the actual product - please contact us if you require an exact photo
