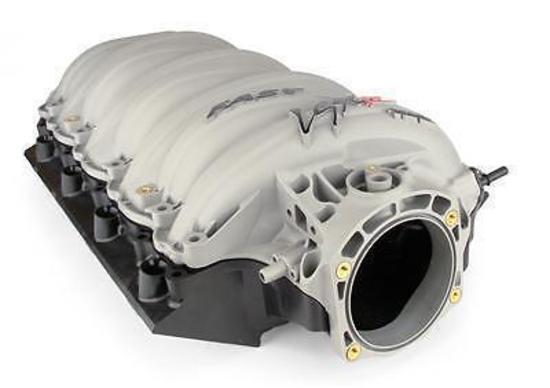

FAST FAST146302 LSXR 102mm Intake Manifold Chev LS1/LS2/LS6 1800-6000RPM

The engineers at FAST teamed up with the airflow specialists at RHS to develop a 3-piece, polymer intake manifold. They are constructed from a proprietary advanced polymer material that offers a host of benefits over aluminum aftermarket intakes, including lighter weight and improved strength and heat dissipating characteristics. While they feature a 102mm air inlet that is perfectly suited to the FAST Big Mouth 102mm throttle body, they can also be used with stock or aftermarket 90mm or 92mm throttle bodies. Other features include integrated nitrous bungs and perfect bolt-on fitment that allows for the use of factory accessories without modifications or clearance concerns. The FAST LSXR intake manifolds' 3-piece modular design allows for easy disassembly and porting. This new design gives you the ability to remove individual runners from the manifold for modification.

Chev Holden LS1/LS2/LS6 V8

Engine Block Style	Stock/OEM standard deck
Injection Style	Multi-port
Basic Operating RPM Range	1,800-6,000
Intake Section Included	Complete
EGR	Yes
Injectors Included	No
Fuel Rails Included	No
Aftermarket Fuel Rail Required	No
Throttle Body Included	No
Throttle Body Bore Diameter	102mm
Supplemental Bosses Cast-In	Yes
Supplemental Bosses Machined	No
Supplemental Boss Quantity	Eight
Runners Included	Yes
Runners Removable	Yes
Plenum Material	Polymer
Plenum Finish	Gray
Base Material	Polymer
Base Finish	Black
Quantity	Sold as a kit.
Notes	This is a 3-piece unit designed for a stock throttle body or big mouth 102 mm throttle body.
