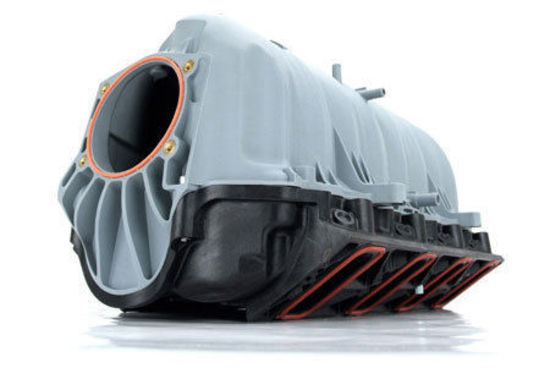

FAST FAST146602 LSXRt 102mm Intake Manifold Chev LS1/LS2/LS6 1800-6000RPM

Item Description

FAST LSXRT 102MM INTAKE MANIFOLD CHEV LS1/LS2/LS6 1800-6000RPM FAST146602FAST LSXRT intake manifolds are designed specifically for GM cathedral port truck engines (4.8L, 5.3L, and 6.0L) and cathedral port LS1, LS2, and LS6 race applications where hood clearance is not a concern. FAST LSXRT 102mm intake manifolds follow the path chartered by the original FAST LSX Gen III intakes by featuring a modular design that allows for easy porting and disassembly and a runner design that yields an incredible 25 peak horsepower gain over the stock intake (on a stock 6.0L engine with a Big Mouth 102mm throttle body). Similar to the LSXR 102mm intake manifold for cars, the LSXRT features the ability to remove individual runners for modification. LSXRT's are constructed from a proprietary precision injection molded polymer which offers many benefits, including lighter weight, greater strength and lower heat soak propensity. While they feature a 102mm air inlet that was designed for the FAST Big Mouth 102mm throttle body, they can also be used with stock 90mm or aftermarket 92mm throttle bodies (78mm three-bolt throttle bodies require an adapter). Other features include integrated nitrous bungs and precise bolt-on fit that permits the use of factory accessories and OEM fuel/emission connections without adjustments or clearance issues. Some GM truck models may require the FAST 92mm or 102mm throttle body.Specifications:Application: Chev Holden LS1/LS2/LS6 (Cathedral Port, See notes)
Engine Block Style Stock/OEM standard deck
Injection Style Multi-port
Intake Section Included Complete
EGR No
Injectors Included No
Fuel Rails Included No
Aftermarket Fuel Rail Required No
Throttle Body Included No
Throttle Body Bore Diameter 102mm
Supplemental Bosses Cast-In Yes
Supplemental Bosses Machined No
Supplemental Boss Quantity Eight
Runners Included Yes
Runners Removable Yes
Plenum Material Polymer
Plenum Finish Gray
Base Material Polymer
Base Finish Black
Quantity Sold individually.
Notes This intake manifold is designed for race applications where hood clearance is not a concern. Designed for use with Big Mouth 102mm throttle body but can also be used with stock 90mm or aftermarket 92mm throttle bodies. 78mm three-bolt throttle bodies require an adapter. (Throttle body is not included)
Items are shipped within one to two business days after full payment has been recieved.



Manufacturer Information

  • Manufacturer: FAST - Fuel Air Spark Technology
  • Manufacturer Part Number:
  • UPC:
  • Colour:
  • Additional Information:
  • Please Note: Images are for representation only and may differ than the actual product - please contact us if you require an exact photo
