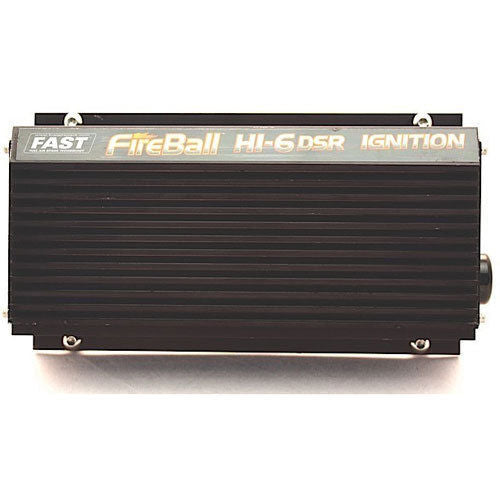

FAST FAST6000-6424 Hi-6Dsr Race Ignition Module w/ Dual Stage Rev Limiter

FAST FAST6000-6424 Hi-6Dsr Race Ignition Module w/ Dual Stage Rev Limiter

FAST6000-6424
$771.10 AUD
$771.10 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
FAST HI-6DSR RACE IGNITION MODULE FAST6000-6424 WITH DUAL STAGE REV LIMITER
Designed to work with engines having up to 14.5:1 compression ratios, nitrous, superchargers, or turbos, FAST's HI-6DSRs will keep your ride performing all the way down the track. These fully digital, multi-spark, CD ignitions deliver higher spark-gap current than comparable digital CD ignitions. Designed for street and racing use, they come with FAST's "Plug-n-Go" universal harness to cover most installations, with optional harnesses available separately. Their built-in dual stage rev limiters automatically drop cylinders in firing order to prevent fuel loading, and are adjustable by increments of 100 from 600-9,900 rpm without the need for chips. Other built-in features include a tach accuracy check, a system problems check for easy problem diagnosis, and crossfire protection for supercharged and turbo applications. The optional 0-20 degree adjustable timing retard and MAP sensor make a great combination for nitrous and turbo applications. They feature fully potted construction with soft urethane for heat, dirt, and moisture protection, and an anodized heat-sink shell for reliability. FAST designed them to be points, mag, or module-triggered for 4, 6, and 8-cylinder engines with distributors. Specs:
Ignition Box Outpu Capacitive discharge
Circuitry: Digital
Rev Limiter: Yes
Timing Retard: None
Data Acquisition: No
CD Voltage Output to Coil: 450 V
Current Draw: 7 amps at 10,000 rpm
Spark Output (millijoules): 1,200 Millijoules
Minimum Operating Voltage: 6 V
Maximum Operating Voltage: 18 V
Length (in): 8.000 in.
Height (in): 2.000 in.
Width (in): 4.500 in.
Ignition Box Color: Black
Coil Included: No
Warranty: 1-year
Quantity: Sold individually




Manufacturer Part Number:
