Ice Ignition ICE-IK0143 10 Amp Race Ignition Kit Chev 283-400 Small Cap Treated Gear

Ice Ignition ICE-IK0143 10 Amp Race Ignition Kit Chev 283-400 Small Cap Treated Gear

ICE-IK0143
$2,587.20 AUD
$2,587.20 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.

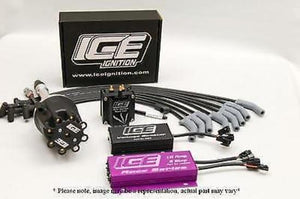

ICE IGNITION 10 AMP RACE IGNITION KIT CHEV 283-400 SMALL CAP/TREATED STEEL GEAR DISTRIBUTOR IK0142ICE Digital Inductive Spark technology is the most affordable, powerful and reliable solution for extracting maximum power from any V8 carburettted engine using petrol, methanol or LP Gas.The ultimate 10 Amp 2 Step race ignition system with maximum spark energy and duration for gasoline / alcohol fuelled naturally aspirated and supercharged engines. Not for road use.10 Amp 2 Step Race Series Ignition Kit includes:
  • ICE billet distributor featuring 6061 aircraft grade aluminium housing, hardened and precision ground 4130 chromoly shaft, high temperature upper roller bearing and oil impregnated sintered iron lower bush, triggering via Hall Effect vane sensor unaffected by dirt, moisture or vibration, generally avaiable with the option of small or large HEI style cap with plug wire retainer and spheroidal graphite iron, silicon impregnated bronze or treated steel distributor gear.
  • 10 Amp 2 Step Race Series digital ignition control featuring 80 preloaded, push button selectable ignition curves, two stage rpm limiter adjustable in 100rpm increments from 1000rpm to 10900rpm via push button switches, switchable dual table distributor and crank trigger spark programs and dedicated tach output.
  • 24 volt booster.
  • High voltage ICE Pro Series Race Coil.
  • 9mm Pro 100 Series plug wire kit to suit your engine including number markers.
Specs:Application: Chev Small Block Gen I 283-400C.I.D. Distributor Included: YesDistributor Type: HEI Small Style CapDistributor Gear: Treated SteelIgnition Controller Included: YesIgnition Controller Types: 10 Amp 2 Step Race SeriesCoil Included: YesCoil Type: 4200 Pro Series RaceLeads Included: YesLead Type: 9mm Pro 100 WiresQuantity: Sold as a kit





Manufacturer Part Number:
