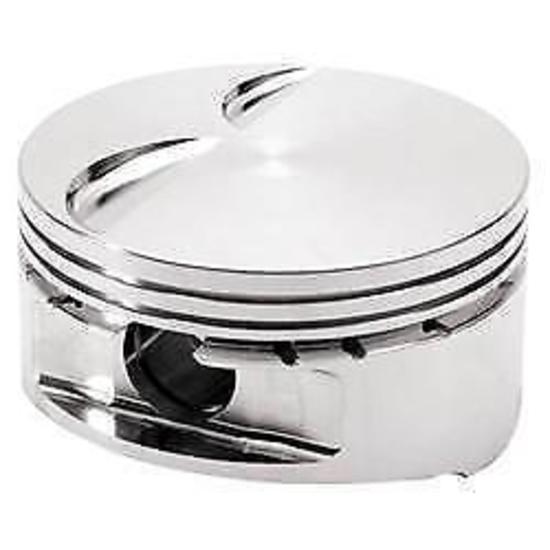

JE Pistons J194883 Je 15¡ Forged Pistons 3.905" Bore 3.622" Stroke 6.125" Rod Gm LS1 V8

Item Description

JE Pistons 15 degree LS1 series pistons are designed for stock rods (.945 in. diameter wrist pin) or aftermarket/small block Chevy (.927 in. diameter wrist pin) connecting rods. They have a flat top design that achieves compression ratios suitable for normally aspired applications and are machined for 1.5, 1.5, 3.0mm rings.


Application: Chev/Holden LS1 V8 347CI
Bore (in):3.905 in.
Bore (mm):99.187mm
Piston Style:Flat top, with two valve reliefs
Piston Material:Forged aluminum
Compression Distance (in):1.315 in.
Piston Head Volume (cc):+2.00cc
Wrist Pin Style:Press-fit or floating
Pin Diameter (in):0.927 in.
Piston Ring Thickness:1.50mm x 1.50mm x 3.00mm
Quantity:Sold as a set of 8.
Notes: Pins and Spiro locks included.

Manufacturer Information

  • Manufacturer: JE Pistons
  • Manufacturer Part Number:
  • UPC:
  • Colour:
  • Additional Information:
  • Please Note: Images are for representation only and may differ than the actual product - please contact us if you require an exact photo
