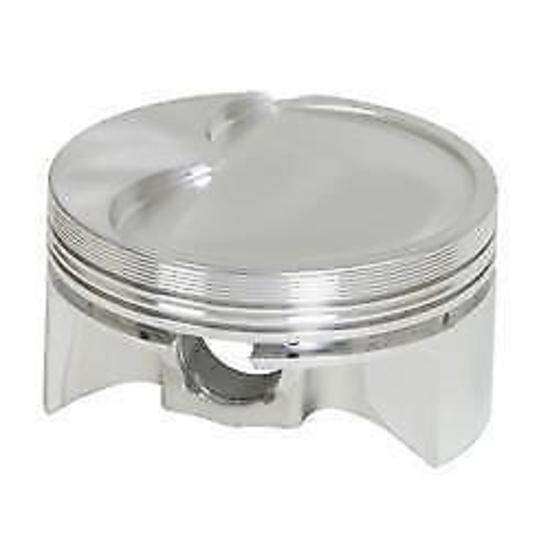

JE Pistons J264041 Je Fsr Forged Pistons 3.905" Bore 4.000" Stroke 6.200" Rod Gm LS1 383 V8

Item Description

JE FSR FORGED PISTONS 3.905" BORE 4.000" STROKE 6.200" ROD GM LS1 383 V8 J264041
JE Pistons' newest FSR slipper forging design allows for the use of the most popular stroke and rod combinations while eliminating reluctor wheel clearance problems. These pistons are lightweight and extremely durable. They're machined for 1.5, 1.5, 3.0mm rings and have an inverted dome design to achieve an optimum compression ratio with forced induction applications.
Specs:
Application: Chev/Holden LS1/LS2/LS3/LS6/LS9 V8 383CI
Bore (in):3.905 in.
Bore (mm):99.187mm
Piston Style:Dish, with two valve reliefs
Piston Material:Forged aluminum
Compression Distance (in):1.115 in.
Piston Head Volume (cc):+10.00cc
Wrist Pin Style:Press-fit or floating
Pin Diameter (in):0.927 in.
Piston Ring Thickness:1.50mm x 1.50mm x 3.00mm
Quantity:Sold as a set of 8.
Notes:Oil rail support included.
Notes: Includes Pins,Wire locks, Smooth Finished Crown, Accumulator Grooves, Contact Reduction Grooves


Manufacturer Information

  • Manufacturer: JE Pistons
  • Manufacturer Part Number:
  • UPC:
  • Colour:
  • Additional Information:
  • Please Note: Images are for representation only and may differ than the actual product - please contact us if you require an exact photo
