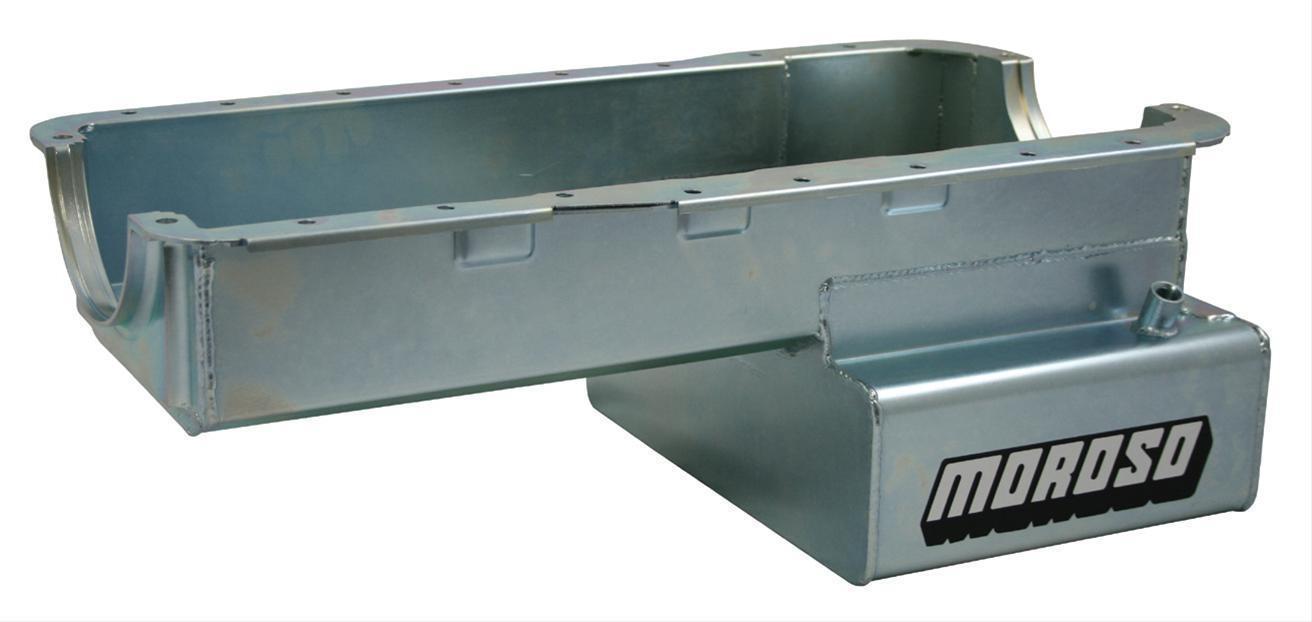

Moroso MO20536 Ford 351W Drag/Road Race Oil Pan 8" Deep 7 Quart (6.62L)

Item Description

These Moroso wet sump road race baffled oil pans ensure that your oil is controlled inside of the oil pan.

They will clear up to a 4.125 in. stroke with most steel connecting rods and fit most 4-bolt Dart, GM, and Merlin main bearing caps. The pans feature five trap door baffles for oil control in road racing, a built-in crank scraper, and a removable louvered windage tray. The rear sump is 7 in. deep, 13 3/4 in. wide, and 12 in. long. The Moroso wet sump road race baffled oil pans include a 20mm fitting for an oil level sensor. They use the stock dipstick, clear most starter/flywheel combinations, and have a clear zinc finish for protection.

  • Fully Fabricated steel with a clear zinc finish
  • Billet end seals for greater sealing
  • Clears all 4-bolt main caps including 4-bolt rear
  • Accepts 4.00 stroke with most steel rods
  • Four Trap Doors keep oil contained in oil pump pick up area
  • Anti-slosh baffle keeps oil from leaving the sump
  • Features oil temperature fitting and drain plug
  • Includes Universal Dipstick Kit No. 25970
  • Compatible with most starter/flywheel combinations
  • For use with 1-piece, rear sump oil pan gasket


Application: Suits Ford small block Windsor 351 C.I.D.

  • Rear Main Seal Style: 1-piece
  • Dipstick Location: Passenger side
  • Sump Location: Front
  • Stroker Clearanced: Yes
  • Maximum Stroke with OE Rod: 4.000 in.
  • Sump Style: Wet
  • Oil Pan Capacity: 7 quarts
  • Oil Pan Depth (in): 8.000 in.
  • Oil Pan Material: Steel
  • Oil Pan Finish: Clear zinc
  • Baffled: Yes
  • Kicked Ou Yes
  • Kickout Position: Driver and passenger side
  • Dipstick Provision: Yes
  • Windage Tray Included: No
  • Pickup Included: No
  • Crank Scraper Included: No
  • Gaskets Included: No
  • Hardware Included: No
  • Quantity: Sold individually.
  • Notes: Fits Australian, Mercury, and Cobra kit car front sump applications (except Mustang II). Clears all 4-bolt main caps, including 4-bolt rear.

Manufacturer Information

  • Manufacturer: Moroso
  • Manufacturer Part Number:
  • UPC:
  • Colour:
  • Additional Information:
