Moroso MO23766 Billet Remote Large Dia. Oil Filter Mount -12 An In/Out

Item Description

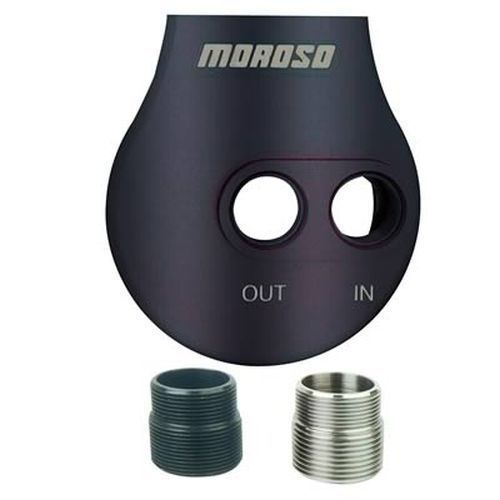

These Moroso large-diameter remote oil filter mounts feature a compact, low-profile design that facilitates installation in crowded areas. They are manufactured from 6061-T6 billet aluminum and are anodized blue to resist corrosion. The mounts include two screw-in adapters to cover most large-diameter style oil filters. They use -12 AN inlet and outlet threaded fittings that are positioned vertically to improve laminar flow.

  • Machined from 6061-T6 billet aluminium for exceptional strength and weight reduction (1.3 lbs w/out fittings)
  • Compact, low profile design (3/4" body height) facilitates installation in crowded areas; includes two 3/8"-16 threaded holes on backside for mounting
  • Anodised finish resists corrosion and maintains brilliance over time

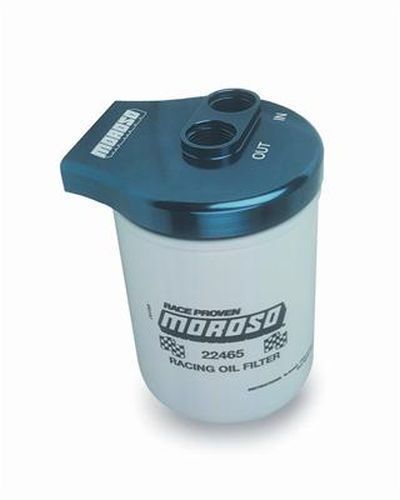

  • Includes two screw-in adapters to accept a wide range of large-diameter filters including Moroso No. 22465, Fram HP-6, Motorcraft FL 784, STP 43R, (Purolator PER 288/L30288), (AC PF1054) and (WIX 51742)
  • -12AN inlet and outlet threaded ports are positioned vertically to improve laminar flow
  • Accepts -12AN threaded fittings with o-rings; fittings can also be welded in place
  • Includes 1/8"NPT port for gauge


  • Remote Oil Filter Bracket Style: Single
  • Inlet Quantity: One
  • Inlet Attachmen Female threads
  • Inlet Size: -12 AN O-ring
  • Outlet Quantity: One
  • Outlet Attachmen Female threads
  • Outlet Size: -12 AN O-ring
  • Oil Filter Bracket Material: Billet aluminum
  • Oil Filter Bracket Finish: Blue anodized
  • Quantity: Sold individually.
  • Notes: This oil filter mount includes adapters for both 1 1/2-16 in. and 1 1/2-12 in. thread oil filters. Also includes 1/8 in. NPT threaded gauge port.

Manufacturer Information

  • Manufacturer: Moroso
  • Manufacturer Part Number:
  • UPC:
  • Colour:
  • Additional Information:
  • Please Note: Images are for representation only and may differ than the actual product - please contact us if you require an exact photo
