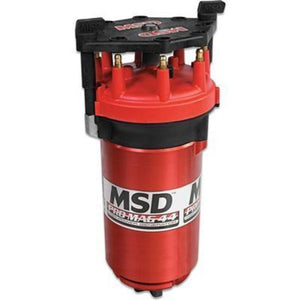

MSD Ignition MSD8130 Pro Mag 44 AMP Magneto Band Clamp Mount Clockwise Rotation
MSD Ignition MSD8130 Pro Mag 44 AMP Magneto Band Clamp Mount Clockwise Rotation
The Pro Mag 44 is the King of all magnetos. With no magnets to recharge, no points to replace and by producing an amazing 44 amps of primary current, it's no wonder that the Pro Mag 44 is the choice of top fuel dragster and funny car teams! The 44 utilises a proprietary assemblage of rare earth magnets and windings to produce this incredible energy. To accurately trigger all of this energy, a magnetic pickup is mounted in the lower base of the generator and is triggered by one of eight precision paddles on a reluctor mounted to a 0.500" shaft. This pickup replaces weak and inaccurate points and never requires adjusting. When the pickup is triggered, the signal is sent to the Electronic Points Box where the spark duration is controlled then directed to the 44's Coil. Over a pound of copper wire goes into the special hand-wound windings deep within the coil where the voltage is immediately stepped up and sent to the mag's cap whe re it gets tributed to the correct spark plugs creating an explosion of heat and energy in the cylinder. Another advantage to the Pro Mag 44's design is that you can incorporate optional accessories. A crank trigger can be adapted to trigger the mag for the ultimate in ignition triggering. Also, a Timing Retard Control or even a rev limiter can be used for improved consistency and safety! The MSD Pro Mag 44 is hands-down, the most powerful and accurate magneto available with the durability to match the performance. Two versions of the Pro Mag 44 generator are available, a clockwise rotation and counter-clockwise model, in Band Clamp housings only. A cross drive is used to drive the mags and a five inch diameter cap is supplied along with a rotor and wire retainer.
Specifications:
Primary Current: 44 Amps
Spark Energy: 950 millijoules (at the gap)
Secondary Voltage: 50,000 Volts
Secondary Current: 1.2 Amps
Spark Series Duration: 26° Crankshaft Rotation 00 RPM
Manufacturer Part Number:
