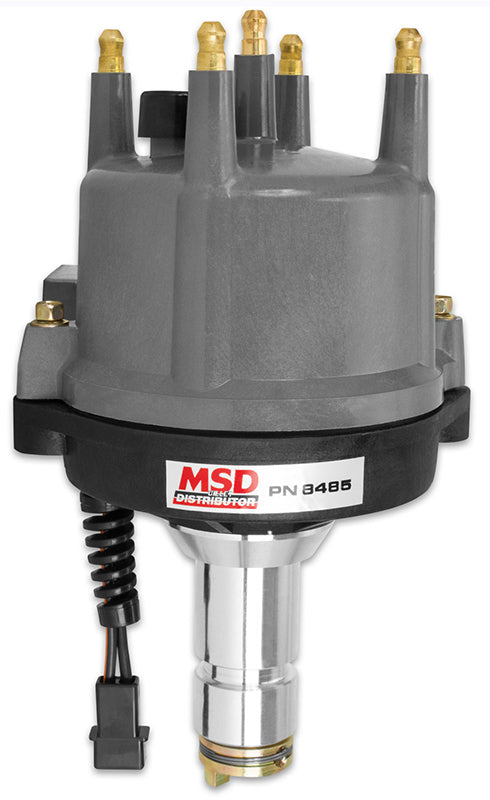

MSD Ignition MSD8485 Pro-Billet Distributor (Vw Type 1 Magnetic Trigger Adjustable Mechanical Advance)

• Designed as a performance upgrade for VW Type I air cooled engines
• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
• Easy-to-adjust mechanical advance with supplied springs and stop bushings
• CNC machined billet aluminium housing and Dupont Rynite base
• Polished steel shaft is QPQ coated and guided by a sealed ball bearing
• Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
• Mechanical advance assembly can be locked out for crank trigger systems
• Advance weight pins are staked and tig welded to the plate
• Nylon pads ensure smooth operation of the advance weights
• Must be used with an MSD Ignition Control
• Supplied with bolt down distributor cap and rotor
• Must be used with an MSD 6, SCI or 7 Series Ign ition. otor. Does not accept a vacuum advance.
• Different style spark plug terminals and boots are required or use MSD's custom sets, PN MSD3193 or PN MSD31939

Using technology gained from building distributors for off-road and NASCAR racers, MSD offers this Billet Distributor for the popular Type 1 engine. A maintenance-free magnetic pick-up is responsible for triggering the MSD Ignition. This pick-up is accurate to within 1° at any rpm so you won't have to worry about points float at top end speeds. The pick-up is triggered by a precision reluctor that is attached to a hardened steel shaft. For increased stability, a sealed ball bearing is used to guide the shaft. Since every engine application is different, the MSD Billet Distributor features an easy-to-adjust mechanical advance assembly. By simply changing the advance springs and stop bushing you can tune in 24 different advance curves.
