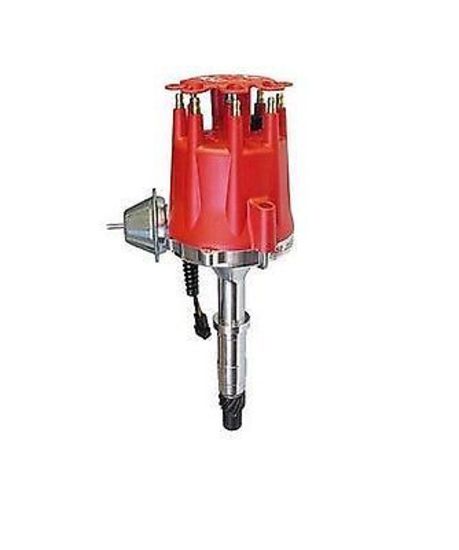

MSD Ignition MSD8519 Pro Billet HEI Distributor Ho Mag Trigger suit AMC 290-401 V8

These MSD Pro-Billet Street distributors are popular routes for people looking for race-proven performance for their street machine. A vacuum advance canister provides improved economy, and the proven MSD mechanical advance mechanism gives you the opportunity to dial in a timing curve to fit your needs. As always, an advance kit of springs and stop bushings is included. The housing features an all-billet 6061-T6 aluminum design for accuracy to within .001 in. An oversized steel shaft is QPQ-coated for low friction, and rides in sealed ball bearings at the top and bottom of the distributor. An extra-long sintered bushing replaces the ball bearing at the bottom for Chevrolet models. This combination keeps the shaft steady, creating accurate spark delivery at any rpm. They rely on a magnetic pickup to trigger the MSD ignition control, which delivers the powerful sparks to the coil. This pickup is extremely accurate and never needs adjusting. The distributors are CARB E.O. approved for use in all 50 states, and are guaranteed to deliver race-quality performance for your ride. These distributors require the use of a separate ignition box, such as an MSD 6, 7, 8, or 10 Series ignition.

• Designed for street/performance use with a mechanical and vacuum advance
• Easy-to-adjust mechanical advance with supplied springs and stop bushings
• Vacuum advance canister for improved economy (can be locked out)
• CNC machined billet aluminium housing and billet aluminium base
• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
• Polished steel shaft is QPQ coated and guided by a sealed ball bearing
• Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
• Mechanical advance assembly can be locked out for crank trigger systems
• Advance weight pins are staked and tig welded to the plate
• Nylon pads ensure smooth operation of the advance weights
• Supplied with an HEI style distributor cap and (accepts Cap-A-Dapts)
• Must be used with an MSD 6, 7 8 or 10 Series Ignition.

Specs:Application: AMC 290-401ci V8. Notes: When installing a new distributor and distributor gear in an AMC V8, it is highly recommended to also install a new camshaft mounted, distributor drive gear.
