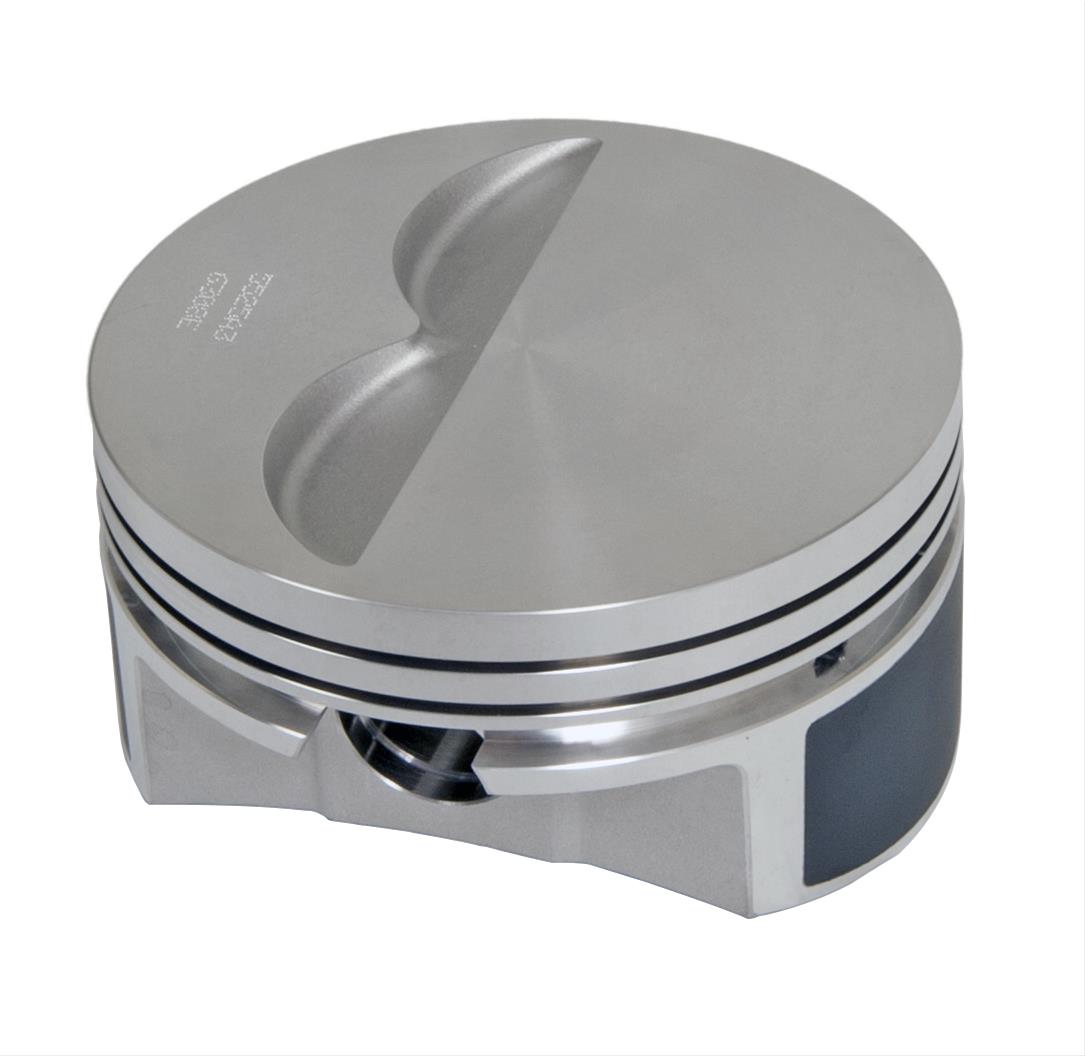

Pro Tru Street PTS525A3 Forged Pistons/Rings 4.155" Ft 406Ci Pro Tru St Chev SB 23ø÷ 400 V

1 1

Pro Tru Street

PTS525A3
$1,264.55 AUD
$1,264.55 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

Pro Tru Street PTS525A3 Forged Pistons/Rings 4.155" Ft 406Ci Pro Tru St Chev SB 23ø÷ 400 V

Item Description

Are you looking for affordable high performance for your street machine? Wiseco Pro Tru Street pistons are right up your alley! These forged 4032 aluminum pistons are complete with chromium alloy steel piston pins and Spirolox.

Oversized, symmetrical, radiused valve pockets allow for maximum flow around the valves during overlap—and accommodate oversized valves and high-lift cams. Wiseco's proprietary ArmorGlide skirt coating extends piston life, increases horsepower, reduces noise, and offers much tighter dimensional tolerances than typical spray-on coatings. Choose the set designed for your vehicle and engine application. World-class, precision-machined high performance pistons—that's Wiseco value!



  • Piston Rings Included:Yes
  • Bore (in.):4.155 in.
  • Bore (mm):105.537mm
  • Stroke:3.750 in.
  • Rod Length:6.000 in.
  • Piston Style:Flat top, with two valve reliefs
  • Piston Material:Forged aluminum
  • Compression Height (in.):1.125 in.
  • Piston Head Volume (cc):+5.00cc
  • Wrist Pin Style:Press-fit or floating
  • Wrist Pin Retainers Included:Yes
  • Wrist Pin Included:Yes
  • Pin Diameter (in.):0.927 in.
  • Piston Ring Thickness:1/16 in. x 1/16 in. x 3/16 in.
  • File Fit:Yes
  • Gapless:No
  • Top Ring Thickness:1/16 in.
  • Top Ring Material:Ductile iron
  • Top Ring Facing Material:Plasma-moly
  • Second Ring Thickness:1/16 in.
  • Second Ring Material:Iron
  • Second Ring Facing Material:Phosphate coated
  • Oil Ring Thickness:3/16 in.
  • Oil Ring Material:Chrome plated carbon steel
  • Oil Ring Tension:Standard
  • Quantity:Sold as a kit.

Manufacturer Information

  • Manufacturer: Pro Tru Street
  • Manufacturer Part Number:
  • UPC:
  • Colour:
  • Additional Information:
  • Please Note: Images are for representation only and may differ than the actual product - please contact us if you require an exact photo
