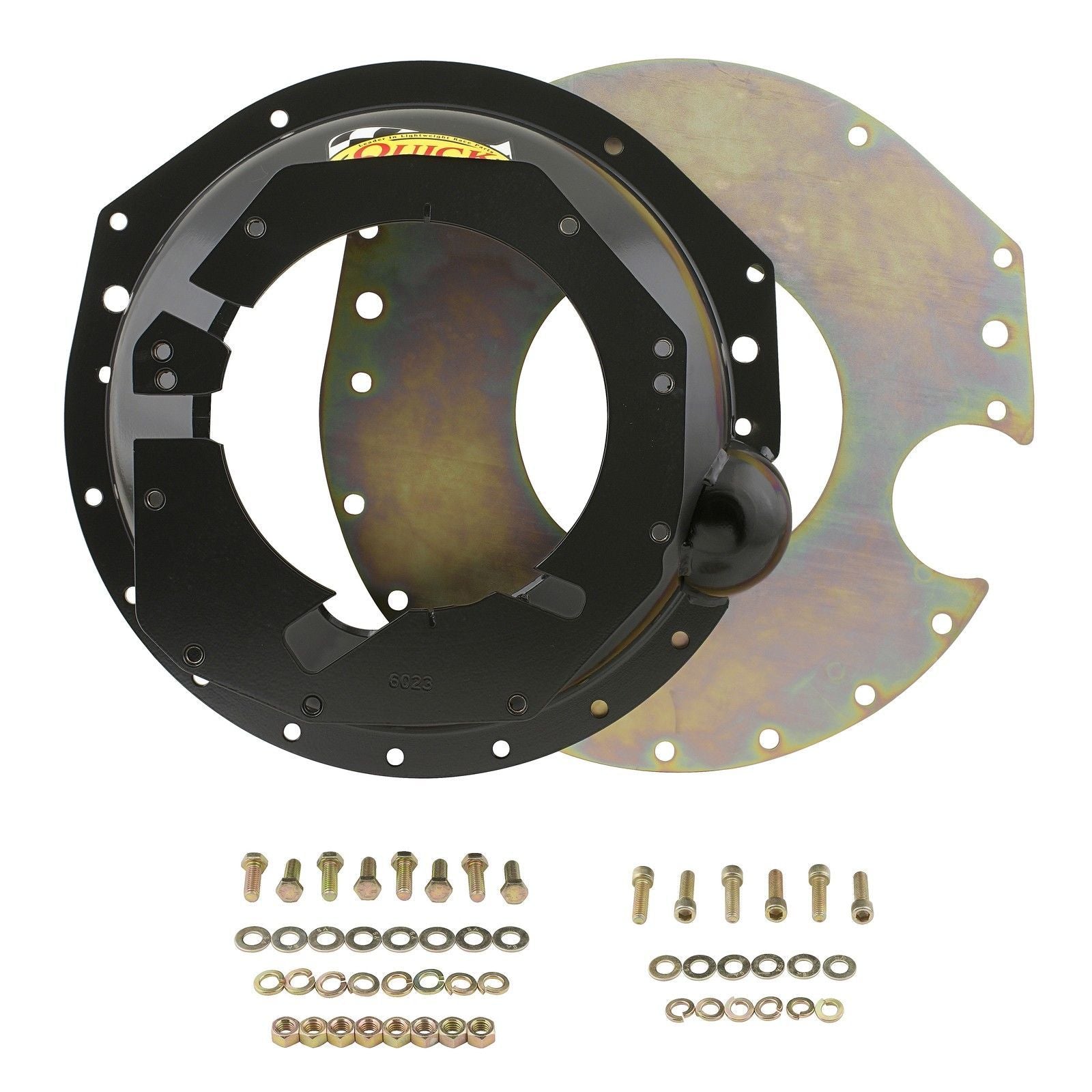

Quicktime Performance QTRM-6023 Chev SB BB Sfi Bellhousing Kit To T56 LS1 & T56 Magnum Trans

1 2

Quicktime Performance

QTRM-6023
$1,997.50 AUD
$1,997.50 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

Quicktime Performance QTRM-6023 Chev SB BB Sfi Bellhousing Kit To T56 LS1 & T56 Magnum Trans

Item Description

Quicktime INC. Bellhousings are built from high grade steel - work hardened to over 80,000 PSI strength.

Over two times the strength of typical steel bellhousings. Bellhousing cone is spin formed not rolled or stamped. This process provides consistent wall thickness and incredible strength. Laser cut components are added to assembly and CNC machined with extreme precision to provide a bellhousing that is parallel & centered to within .003". Precision manufacturing method permits QuickTime bellhousings to be the most dimensionally stable bellhousing available, permits less drivetrain wear. Designed to be the lightest, strongest and most accurate bellhousing available.

Specifications:

  • Heigh 5.950"
  • Trans. Bore Diameter: N/A
  • Engine: Small Block Chev, Big Block Chev
  • Clutch Diameter: 11"
  • Flywheel: 153 & 168 tooth
  • Weigh 22lbs
  • Hydraulic Bearing Only
  • Starter: OE

Transmission Application:

  • T56 Chev LS1
  • T56 Magnum


Application: Chevy small block & big block V8 with LS1 spec T-56 or T-56 Magnum transmissions.

  • SFI-Approved: Yes
  • Safety Rating: SFI 6.1
  • Block Plate Included: Yes
  • Bellhousing Depth (in): 5.555 in.
  • Bellhousing Type: New
  • Clutch Fork Included: No
  • Adjustable Fork Pivot Recommended: No
  • Bellhousing Material: Steel
  • Bellhousing Finish: Black
  • Quantity: Sold as a kit.
  • Notes: Must be used with internal hydraulic throwout bearing only. Designed to use a 153 or 168-tooth flywheel and clutch no larger than 11 in.

Manufacturer Information

  • Manufacturer: Quicktime Performance
  • Manufacturer Part Number:
  • UPC:
  • Colour:
  • Additional Information:
  • Please Note: Images are for representation only and may differ than the actual product - please contact us if you require an exact photo
