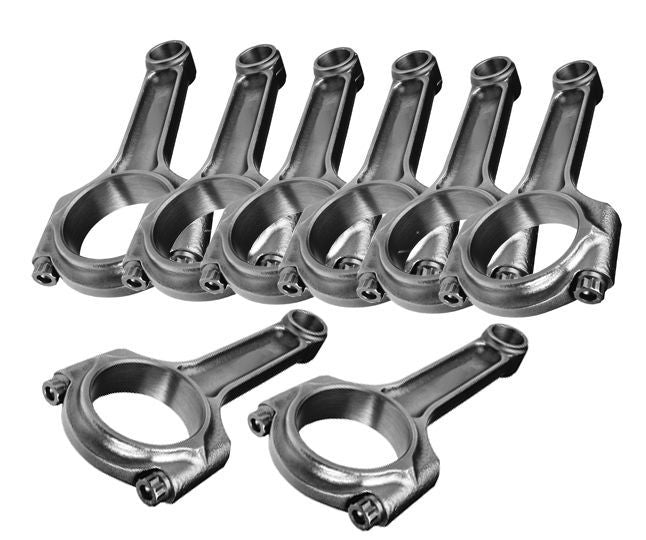

SCAT SC2-ICR6125-716 4340 Forged I-Beam Conrods Chev SB 6.125" Long 2.1" Journal

1 2

SCAT Engine Components

SC2-ICR6125-716
$1,011.45 AUD
$1,011.45 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

SCAT SC2-ICR6125-716 4340 Forged I-Beam Conrods Chev SB 6.125" Long 2.1" Journal

Item Description

SCAT 4340 FORGED I-BEAM CONRODS SC2-ICR6125-716 CHEV SB 6.125" LONG 2.1" JOURNAL
SCAT connecting rods feature the same high-quality craftsmanship that has led us to the forefront of the performance industry. SCAT rods are made from a 2-piece chromoly steel forging to ensure maximum strength and durability. We offer a complete line of Small and Big-Block Chevy, Small and Big-Block Ford, Holden and many more in both the I-Beam and H-Beam designs. Precision finished at SCAT on the newest and most modern machinery available by SCAT's ster machinists.
  • 6.125" Rod Length.
  • 2.100" Journal size.
  • .927" Pin dia.
  • .940" B.E. Width.
  • Bushed
  • 7/16" ARP 8740 Cap Screws.
  • Scat offers the best possible I-Beam Rod which offers a unique forging design to strengthen the big end. Stronger than all other I-Beam designs.
  • High Tensile 4340 Forged Material for Durability.
  • Balanced at Scat to ±1 gram in steps.
  • Single rib cap design for added strength and bearing support.
  • Polished beams to eliminate stress risers.
  • Special hollow dowels and huge 7/16" cap screw bolts greatly increase strength and horsepower capabilities
  • All Scat Rods are precision honed on the latest Sunnen Equipment.
  • Profiled clearance for stroker applications.
Details:
Application: Chevy small block Gen I 350 C.I.D. & Chevy small block Gen II 5.7L/350 C.I.D. V8.

Connecting Rod Length Center to Center (in):6.125 in.
Connecting Rod Beam Style:I-beam
Connecting Rod Material:Forged 4340 steel
Connecting Rod Finish:Shot-peened
Wrist Pin Style:Floating
Clearanced for Stroker:Yes
Cap Retention Style:Cap screw
Connecting Rod Bolt Brand:ARP
Connecting Rod Bolt Diameter:7/16 in.
Connecting Rod Bolt Material:8740 chromoly steel
Fastener Yield Strength (psi):200,000 psi
Connecting Rod Bolt Head Style:12-point
Approximate Connecting Rod Weight (g):610
Rod Journal Diameter (in):2.100 in.
Big End Bore Diameter (in):2.2250 in.
Pin End Bore Diameter:0.927 in.
Big End Width (in):0.940 in.
Weight Matched SeYes
Remanufactured:No
Magnafluxed:No
Quantity:Sold as a set of 8.
Notes:Custom pistons required when using connecting rods with custom wrist pin diameter and longer than stock length.

On 25-Jun-11 at 09:30:15 AEST, seller added the following information:
.

Manufacturer Information

  • Manufacturer: SCAT Engine Components
  • Manufacturer Part Number:
  • UPC:
  • Colour:
  • Additional Information:
  • Please Note: Images are for representation only and may differ than the actual product - please contact us if you require an exact photo
