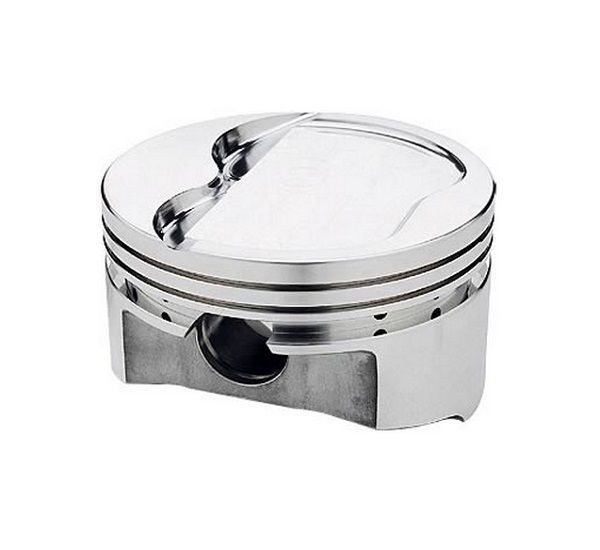

SRP Pistons SRP151868 Inverted Dome Pistons Ford 302W Stroker 4.030 Bore 3.400 Stroke

Item Description

SRP INVERTED DOME FORGED PISTONS SRP151868 FOR FORD 302W STROKER 4.030" BORE 3.400" STROKE
SRP Pistons was founded in 1997 by JE Pistons, the world's largest manufacturer of forged racing pistons. The idea was simple, to create a high quality forged piston at an affordable price. Every SRP forging was created with quality, performance and affordability in mind. By designing dedicated forgings, the pistons became both lighter and stronger while machining time and scrap aluminium were drastically reduced. These factors have reduced the price of SRP Pistons and contributed to their success. Today, over 400 different piston part numbers comprise the SRP product lineup, including Chevy, Ford, Chrysler, Honda and more. These SRP Ford small block dish top pistons fit Ford, TFS, GT40, Canfield, Brodix Track I, OE, and Dart Windsor cylinder head applications (not recommended for Twisted Wedge, N351, or Edelbrock 7721). They're made from 4032 low-expansion, high-silicon aluminum alloy that's heat-treated to SRP specifications. A wrist pin is included and their CNC-machined ring grooves accept 1/16, 1/16, 3/16 rings, which are sold separately. Specs:
Application: Ford Small Block Windsor 302 to 346ci V8.
Bore (in): 4.030 in.
Bore (mm): 102.362mm
Stroke (in.): 3.400 in.
Rod Length (in.): 5.400 in.
Oversize: .030
Piston Style: Dish top
Piston Material: Forged aluminum
Compression Distance (in): 1.100 in.
Piston Head Volume (cc): -12.5cc
Wrist Pin Style: Press-fit or floating
Pin Diameter (in): 0.927 in.
Piston Ring Thickness: 1/16 in. x 1/16 in. x 3/16 in.
Quantity: Sold as a set of 8.
Notes: Oil rail support included.




Manufacturer Information

  • Manufacturer: SRP Pistons
  • Manufacturer Part Number:
  • UPC:
  • Colour:
  • Additional Information:
  • Please Note: Images are for representation only and may differ than the actual product - please contact us if you require an exact photo
