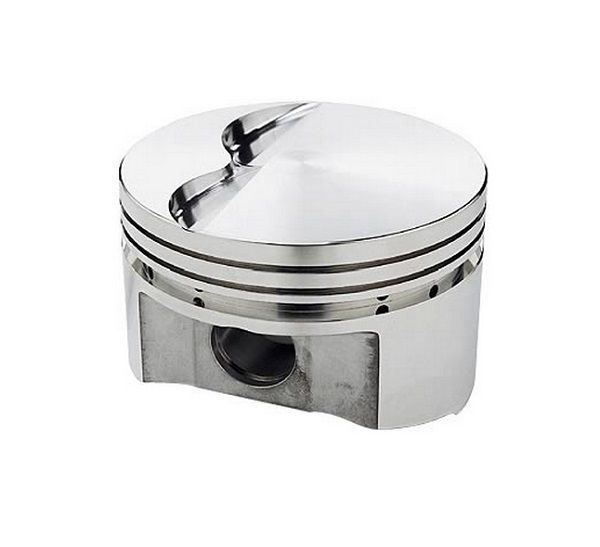

SRP Pistons SRP206059 Flat Top Forged Pistons Ford 351W Stroker 4.030 Bore 3.850 Stroke

Item Description

SRP FLAT TOP FORGED PISTONS SRP206059 SUIT FORD 351W STROKER 4.030" BORE 3.850" STROKE
SRP Pistons was founded in 1997 by JE Pistons, the world's largest manufacturer of forged racing pistons. The idea was simple, to create a high quality forged piston at an affordable price. Every SRP forging was created with quality, performance and affordability in mind. By designing dedicated forgings, the pistons became both lighter and stronger while machining time and scrap aluminium were drastically reduced. These factors have reduced the price of SRP Pistons and contributed to their success. Today, over 400 different piston part numbers comprise the SRP product lineup, including Chevy, Ford, Chrysler, Honda and more.This piston set is forged from high silicon 4032 aluminium alloy and is able to fit Ford, TFS, GT40, Canfield, Brodix Track I, OE and Dart Windsor. This piston set does not fit Twisted Wedge, N351 or EdelBrock 7721. Features Forged Side Reliefs (FSR) that reduce weight and pistol-to-wall surface contact. Piston set accepts 1/16, 1/16, 3/16 rings. All listed compression ratios are calculated at zero deck clearance. Use the Deck Height Column as the amount to machine off the reference block height. The actual amount of milling required for your block may vary.Specs:
Application: Ford Small Block Windsor 351 V8.
Bore (in): 4.030 in.
Bore (mm): 102.362mm
Stroke (in.): 3.850 in.
Rod Length (in.): 6.250 in.
Oversize: 0.030
Piston Style: Dish top
Piston Material: Forged aluminum
Compression Distance (in): 1.350 in.
Piston Head Volume (cc): -5.0cc
Wrist Pin Style: Press-fit or floating
Pin Diameter (in): 0.927 in.
Piston Ring Thickness: 1/16 in. x 1/16 in. x 3/16 in.
Quantity: Sold as a set of 8.
Note: Piston set also suits 3.875" stroke with 6.250" rod length, 4.000" stroke with 6.200" rod length, 4.100" stroke with 6.125" rod length.




Manufacturer Information

  • Manufacturer: SRP Pistons
  • Manufacturer Part Number:
  • UPC:
  • Colour:
  • Additional Information:
  • Please Note: Images are for representation only and may differ than the actual product - please contact us if you require an exact photo
