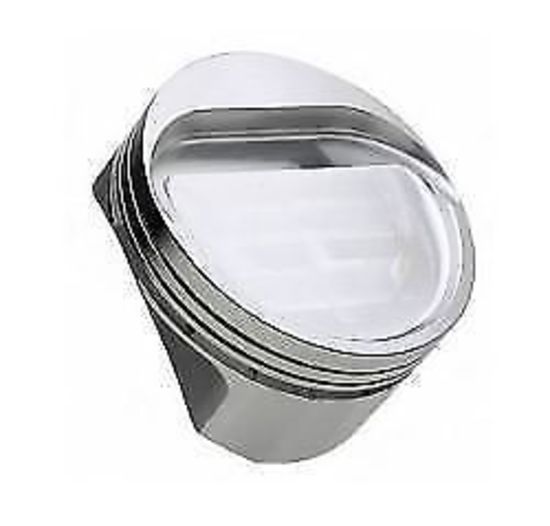

SRP Pistons SRP254276 Je Forged -29cc Inv Dome Top Pistons Gm/Holden LS1 V8 4.005" Bore

SRP Pistons SRP254276 Je Forged -29cc Inv Dome Top Pistons Gm/Holden LS1 V8 4.005" Bore

SRP254276
$1,350.80 AUD
$1,350.80 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
JE SRP FORGED -29CC INV DOME TOP PISTONS GM/HOLDEN LS1 V8 4.005" BORE SRP254276
SRP small block Chevy 15 degree LS1/LS2 inverted dome pistons are ideal for naturally aspirated or moderate boost and nitrous street/strip applications. They're forged from 4032 low-expansion, high-silicon aluminum alloy for quieter operation and feature a forged oiling pin for increased wrist pin lubrication. Pin fittings, round wire locks, and a wall wrist pin are included. Their CNC machined ring grooves accept 1.5, 1.5, 3.0mm rings, which are sold separately.
Specs:
Application: Chev/Holden LS1/LS2/LS6 series V8
C.I.D: 403
Bore (in):4.005 in.
Bore (mm):101.727mm
Piston Style:Dish, with a trough
Piston Material:Forged aluminum
Compression Distance (in):1.115 in.
Piston Head Volume (cc):+29.00cc
Wrist Pin Style:Press-fit or floating
Pin Diameter (in):0.927 in.
Piston Ring Thickness:1.50mm x 1.50mm x 3.00mm
Quantity:Sold individually.
Notes:Oil rail support included.Notes: Includes Spiro Lock, Straight Wall Pin
